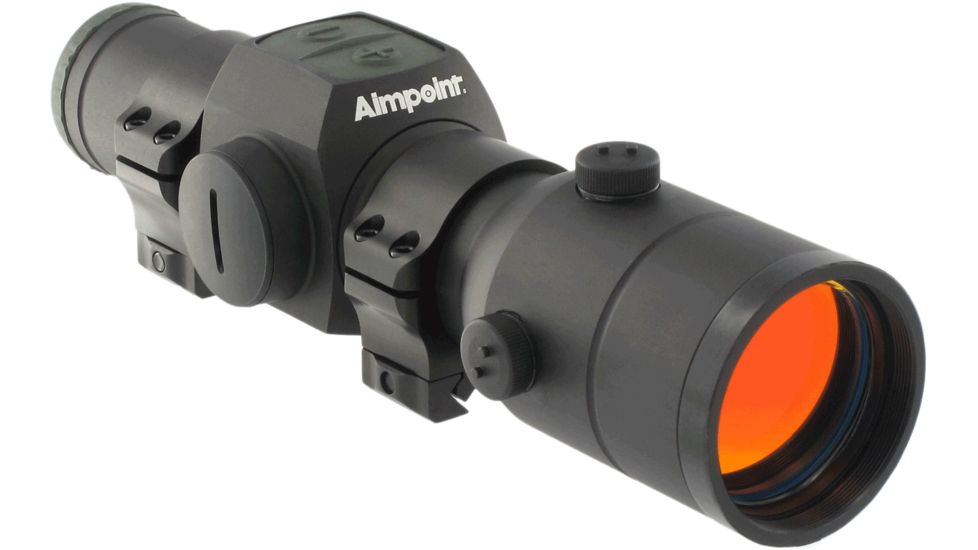

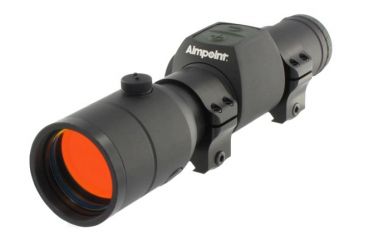

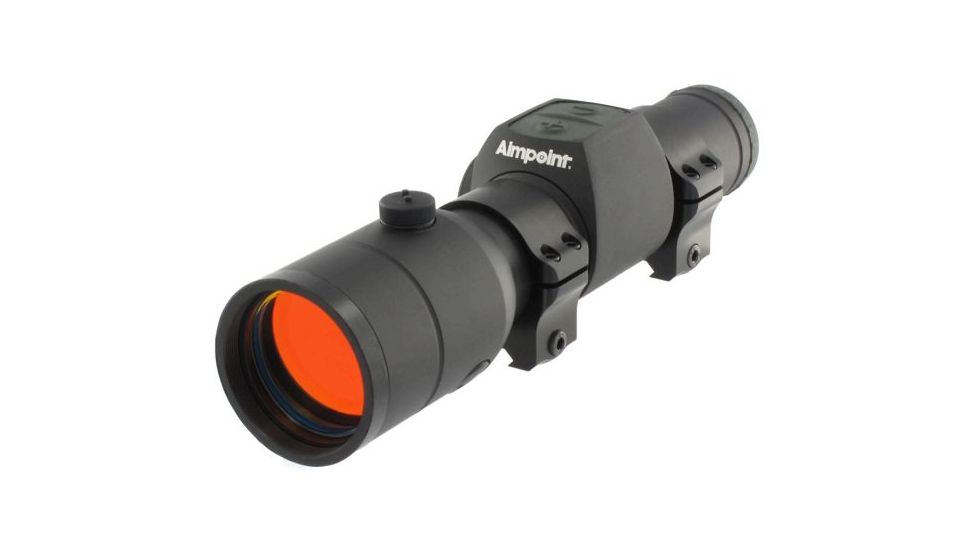

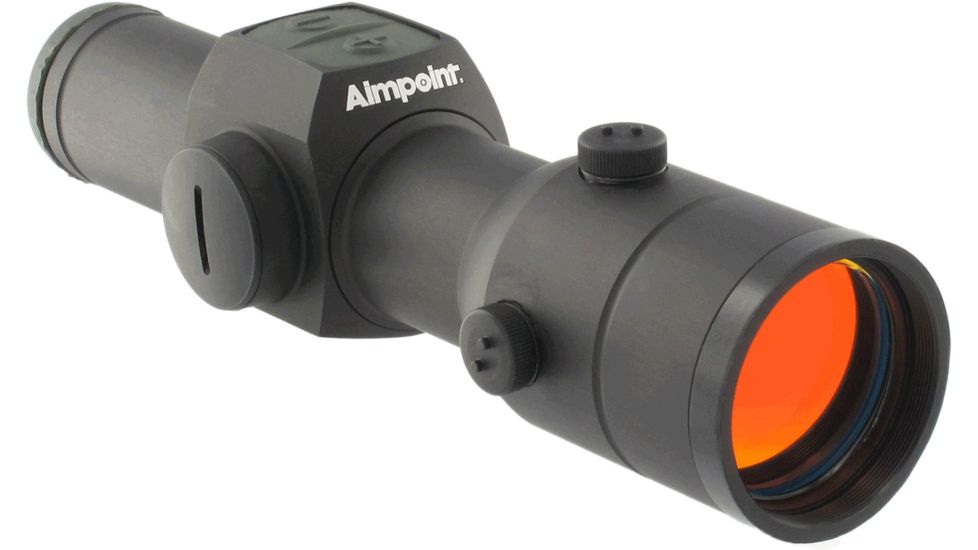

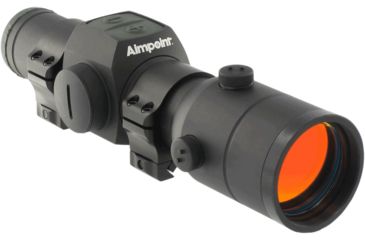

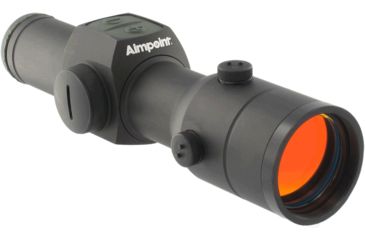

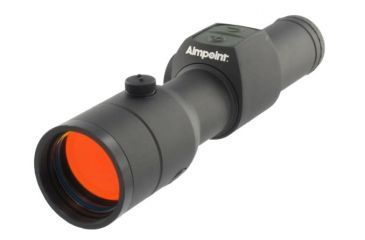

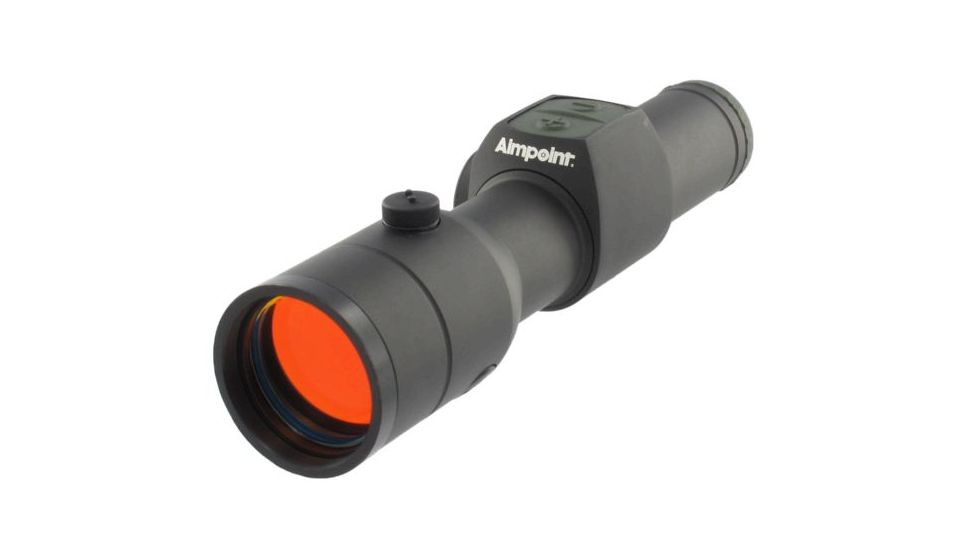

The Aimpoint Hunter H34S Red Dot Sight with 34mm Rings will help improve your accuracy and speed on the range and in the field. Famed Aimpoint design allows the H34S to be used
from almost any angle with zero parallax, making it perfect for anyone looking for a sight to fit their 34mm scope rings. Red dot sights favor accuracy and speed over magnification, and the 2 MOA red dot is large enough to be seen quickly without obscuring your vision of the game. Dominate the field with the Aimpoint Hunter H34S 34mm Ring Red Dot Sight.
34mm rings and a short construction allow the Aimpoint H34S Hunter Red Dot Sight with 34mm Rings to be attached to most standard rifles and shotguns, as well as some magnum rifles. Aimpoint red dot sights boast famous durability, easy installation and an enormous 5 year battery life. The Aimpoint Hunter H34S Red Dot Sight's speed, accuracy, and durability will leave you surprised that you went for so long without it.
| General Data | ||
|---|---|---|
| Article number: | 12692 | |
| Technology: | ACET (Advanced Circuit Efficiency Technology) | |
| Working principle: | Reflex collimator sight - red dot sight | |
| Optical Data | ||
| Lightsource: | LED (Light Emitting Diode) totally eye-safe | |
| Lightsource wavelength: | 650 nm red light | |

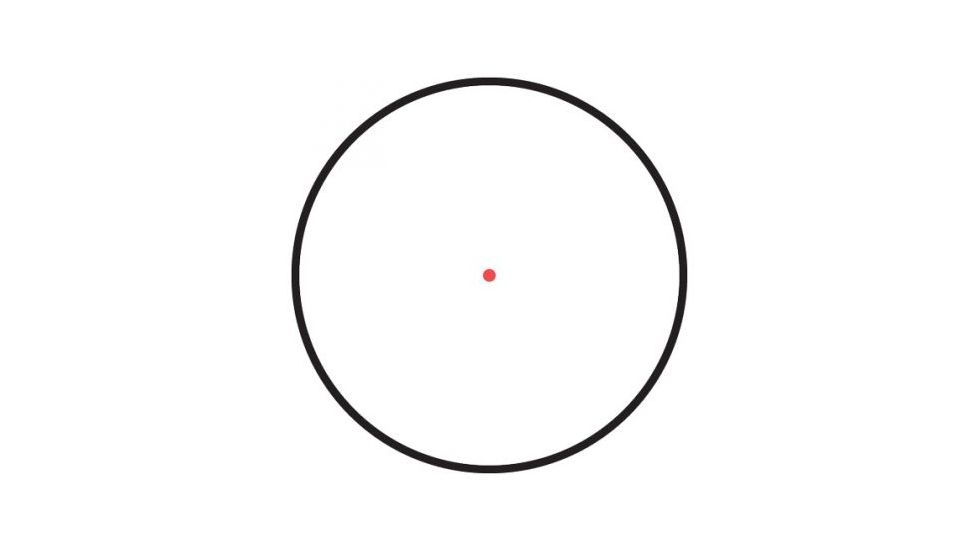

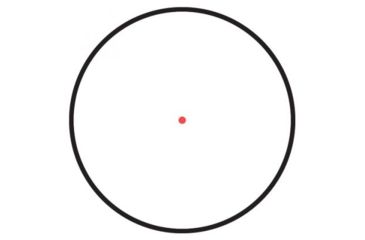

| Red dot size in MOA (minute of angle, 1 MOA 30 mm at 100 meters 1" at 100 yards): | 2 | |
| Parallax: | Absence of parallax - No centering required | |
| Eye relief: | Unlimited | |
| Night vision compatibility: | No | |
| Anti-reflex coating all surfaces & multi-layer coating objective lens: | Yes | |
| Magnification: | No magnification (1X) | |
| Electronic Data | ||
| Battery: | One 3V Lithium battery, type CR2032 | |
| Battery life in hours (at room temperature & at start-up setting): | 50 000 (over 5 years of continuous use) | |
| Dot intensity adjustment: | Digital push button | |
| Daylight (DL) settings: | 1 Off & 12 DL | |
| Mechanical Data | ||
| Material housing: | High strength aluminum | |
| Surface finish: | Anodized, semi-matte | |
| Color housing: | Black | |
| Adjustment 1 click: | 20mm at 100m, (1/2" at 80yds) | |
| Mounting methods: | 2 Rings, ° 34mm, (° 1.34") | |
| Environmental Data | ||
| Temperature range: | -30° - +60°C, (-20° - +140°F) | |
| Water resistance - submersible to: | Fully waterproof | |
| Radioactive components used: | None | |
| Dimensions | ||
| Length: | 197mm, (7.75") | |
| Maximum distance between rings: | 118mm, (4.6") | |
| Minimum distance between rings: | 45mm, (1.77") | |
| Ojbective diameter: | 47mm, (1.85") | |
| Tube diameter: | 34mm, (1.34") | |
| Weight sight only: | 250g, (8.8oz) | |
| Product Code | UPC | SKU | Aimpoint Hunter 2 MOA H34S Red Dot Sight with 34mm Short Rings Options |
|---|---|---|---|
| AI-RD-12692-DEMO | 12692-DEMO | 12692-DEMO | DEMO Aimpoint Hunter 2 MOA H34S Red Dot Sight with 34mm Short Rings |
| AI-RD-12692-EE | 7350004383108 | 12692 | NEW Aimpoint Hunter H34S Waterproof Red Dot Sight, Black w/ 34mm Short Rings 12692 |
