Product Discontinued by Manufacturer
Armasight Nyx-7 PRO 3 Gen 3 Bravo Night Vision Goggle has been discontinued by Armasight and is no longer available. Our product experts have helped us select these available replacements below.

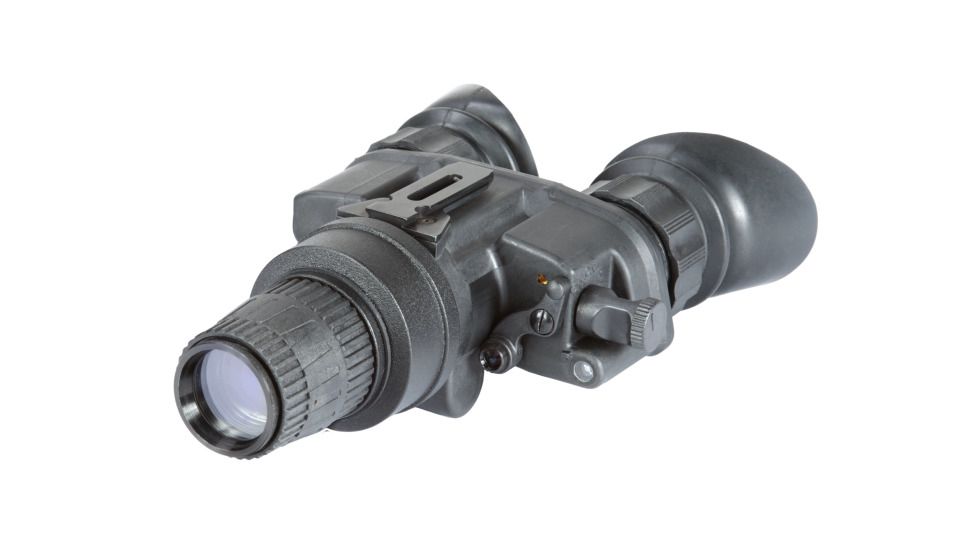

Product Info for Armasight Nyx-7 PRO 3 Gen 3 Bravo Night Vision Goggle

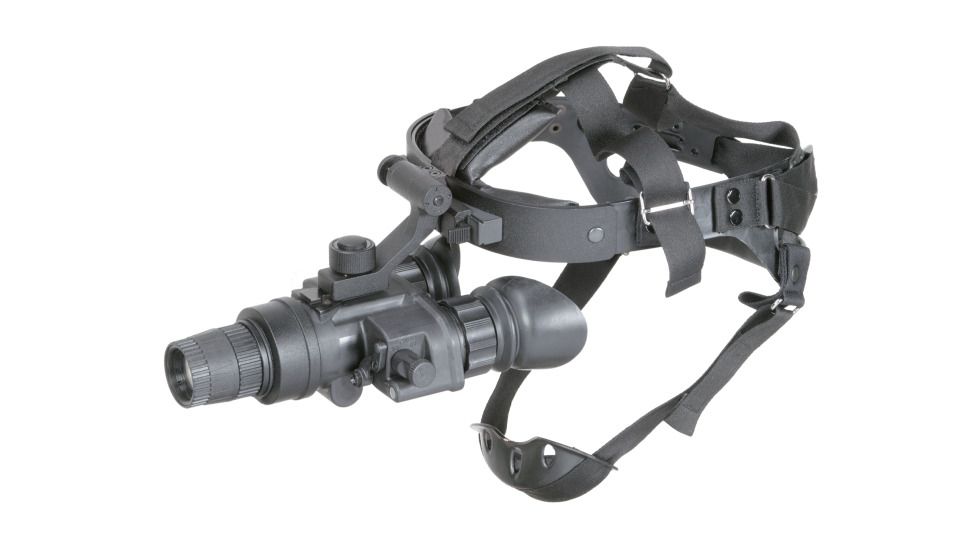

The Armasight Nyx-7 Bravo Generation 3 Night Vision Goggles NSGNYX7P0133DA1 have been designed to offer the perfect night vision device to any nighttime shooter. This Night Vision Bi-Ocular from Armasight is an extremely rugged but compact bi-ocular night vision goggle. Built with the highest grade optics and simple, reliable electronics, the Armasight Nyx-7 PRO Bravo 3 Night Vision Goggle provides clear, bright nighttime images under even the most trying conditions. For hands-free use, it can be worn on the included flip-up head mount or optional universal helmet mount, both of which have a built-in mechanism that will automatically turn the unit off when it is flipped up. The Armasight 3 Bravo Nyx-7 PRO NV Goggle is equipped with built-in infrared illuminator that allows the user to operate in total darkness. The Armasight Nyx-7 PRO Bravo 3 Goggle also has a high-light cut-off feature that protects the image tube from bright light sources, as well as a flip-up shut-off feature that activates when used with the optional helmet mount assembly. This Armasight Night Vision Goggle is equipped with LED indicators that are displayed on the screen of the eyepiece to alert the user of a low battery or that the IR is turned on. The Armasight Nyx-7 PRO Bravo 3 Biocular can also be utilized as an excellent long-range viewer with optional 3X afocal, 5X, and 8X magnifier lenses. The CR123/AA adapter is built into the battery compartment and requires only a single 3V CR123 or 1.5V AA battery for hours of night vision operation. Waterproof, rugged, lightweight and compact, the Armasight Nyx-7 PRO Night-Vision Biocular w/ Bravo Gen III is the perfect handsfree unit for users ranging from the casual civilian to even the most demanding military and law enforcement professional.
Specifications for Armasight NYX-7 PRO Bravo3 Night Vision Goggle:
| Image Tube: | Gen 3 Bravo - 57 lp/mm (min) - 64 lp/mm (typical) |
| Magnification: | 1x standard; 3x, 5x, 8x optional |
| Lens System: | F1.2, 27 mm |
| FOV (°): | 40 |
| Range of Focus (m): | 0.25 to infinity |
| Diopter Adjustment (dpt): | -5 to +5 |
| Controls: | 3 position switch (On, Off, IR) |
| Automatic Brightness Control: | Yes |
| Bright Light Cut-off: | Yes |
| Automatic Shut-off System: | Yes |
| Infrared Illuminator: | Yes (Built-in with flood lens) |
| IR Indicator: | Yes (in FOV) |
| Low Battery Indicator: | Yes (in FOV) |
| Power Supply: | (1) 3 V lithium, or (1) AA Alkaline |
| Battery Life (hours): | 60 |
| Environmental Rating: | Waterproof / MIL-810F Compliant |
| Operating Temperature (°C): | -40 to +50 |
| Dimensions (mm/in): | 165 x 117 x 75 / 6.5 x 4.5 x 2.9 |
| Weight (kg/lbs): | 0.48 / 0.9 |
Features of Armasight Generation 3 Bravo Nyx7 Pro Night Vision Goggles:
- Compact and lightweight, rugged design
- Waterproof
- Head or helmet mountable for hands-free usage
- Auto brightness control
- Ergonomic, simple, easy to operate controls
- Adaptable for use with cameras
- Built-in Infrared illuminators and flood lens
Package Contents:
- Armasight Nyx-7 Bravo 3 Generation 3 Night Vision Goggles
- Utilizes single CR123A lithium battery or AA Alkaline
- Adapter
