ATN Gen 3 Night Vision Monocular 6015-3 w/ Head Mount

Availability Notice for - ATN Gen 3 Night Vision Monocular 6015-3 w/ Head Mount

We carry thousands of products in stock, but this specific item is currently not available for sale. Please feel free to browse the store for similar products or use the form below to contact our knowledgeable Product Specialists for estimated availability time frame or replacement options for ATN Gen 3 Night Vision Monocular 6015-3 w/ Head Mount ().

ATN Gen 3 Night Vision Monocular 6015-3 w/ Head Mount

ATN Gen 3 Night Vision Monocular 6015-3 w/ Head Mount

This product may no longer available, but we have hundreds of thousands of other products for you to choose from. Check out our selection of products on sale, clearance items, new products, or just head to our and start browsing our extensive catalog of top quality items!

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

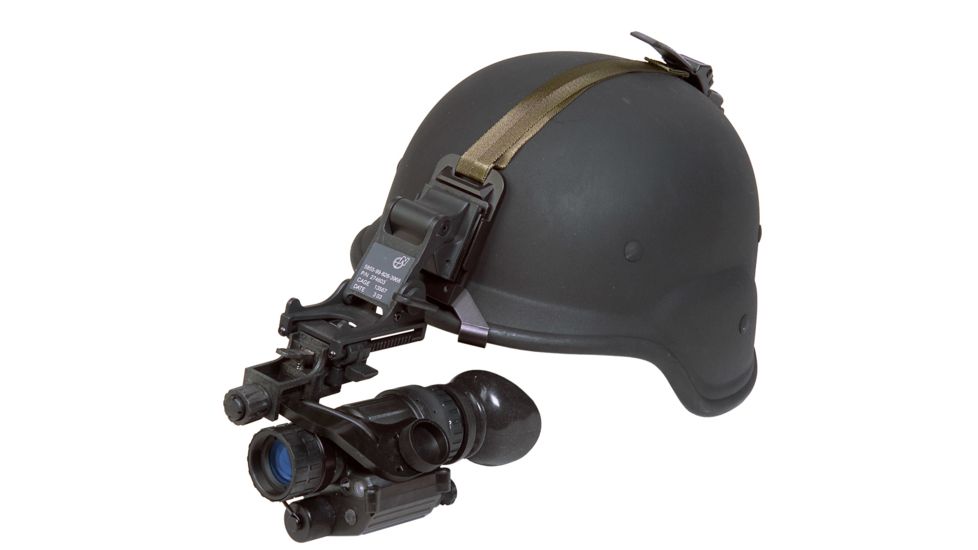

ATN Gen 3 Night Vision Monocular 6015-3 is a handheld night scope that can also be head- or helmet-mounted. Designed for the most demanding of nighttime applications, the ATN 6015-3 Night Vision Scope can be configured as for hands-free use with a helmet mount, or adapted to cameras and camcorders. Based on the ATN PVS-14 used by the U.S. military, this ATN Night Vision Monocular is of the highest quality in optics, design and functionality. This versatile, high quality, multipurpose night vision monocular is an outstanding choice for professional night vision applications.

The ATN 60153 NV Monocular is equipped with an ATN standard 3rd Generation Image Intensifier Tubes of the highest quality. The tube has a micro channel plate, GaAs photocathode, and a completely self-contained integral high-voltage power supply. These Generation 3 Night Vision tubes provide a combined increase in resolution, Signal-to-Noise and photosensitivity over tubes with a multi-alkaline photocathode. Gen 3 Night Vision is the standard for the USA military.

American Technologies Network Corporation manufactures and distributes the widest array of Night Vision systems in the world. Our selection of night vision devices from ATN includes a big variety of ATN Night Vision Binoculars, monoculars, and rifle scopes, with a full range of technology options from Gen 1 Night Vision Devices through Gen 2 and Generation 3 Night Vision Devices.

Gen 3 night vision was developed as an improvement over Second Generation Night Vision Devices, by applying gallium arsenide to the photocathode. This modification makes it possible for the Night Vision Device to produce bright and very sharp images compared to Generation 2 Night Vision.

How does a Night Vision Device work? Night vision scopes collect available light via the objective lens, inluding starlight, moonlight, and infra-red radiation. Next, the light goes through a photocathode tube that is located inside of the Night Vision Device. Light particles which are called photons are transformed into electrons, which are augmented through a number of different processes. After aplification, the electrons are projected onto a phosphorus screen that transforms them into a visible image.

Specifications for ATN Generation3 Night Vision Monocular, 6015-3 NVD:

Tube configuration:3rd Gen. Standard
Detection range:350 M/Y
Recognition range:300 M/Y
Lens system:F1
FOV:40 deg.
Diopter adjustment:+2/-6
Power supply:Two 1.5 Volt AA size
Range of focus:0.25M to infinity
Battery life:20-50 hours
Dimensions:113 x 56 x 50 MM
Weight:0.68kg / 1.7 lbs
Camera adaptable:Yes
Waterproof:1M for 30 min
Warranty:Two years

Features of ATN Gen3 Night Vision Monocular 6015-3:

  • US Military design
  • Multi-Purpose unit:
    • Handheld monocular
    • Hands-free goggle (optional helmet mount, included)
  • Mil-Spec headgear
  • Limited Two-Year Warranty

Package Contents:

  • ATN Gen 3 NVD Night Vision Monocular 6015-3
  • Soft carrying case
  • De-mist shield
  • Head mount assembly
  • Lens cap
  • Sacrificial filter
  • 1.5 volt AA battery
  • Neck Cord
  • Lens tissue
  • Instruction manual
