These ATN Night Vision Scopes use the Pinnacle Image Intensifier Tube from ITT. Aside from being an industry leader in image tubes, the Pinnacle Image Intensifier runs on a gated power supply that makes Night Vision in light-polluted areas a possibility by minimizing the "halo" effect. With the Pinnacle Image Intensifier tube in your Night Vision Device, you can always count on a 64-72lp/mm resolution and a noise ration of 24.
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

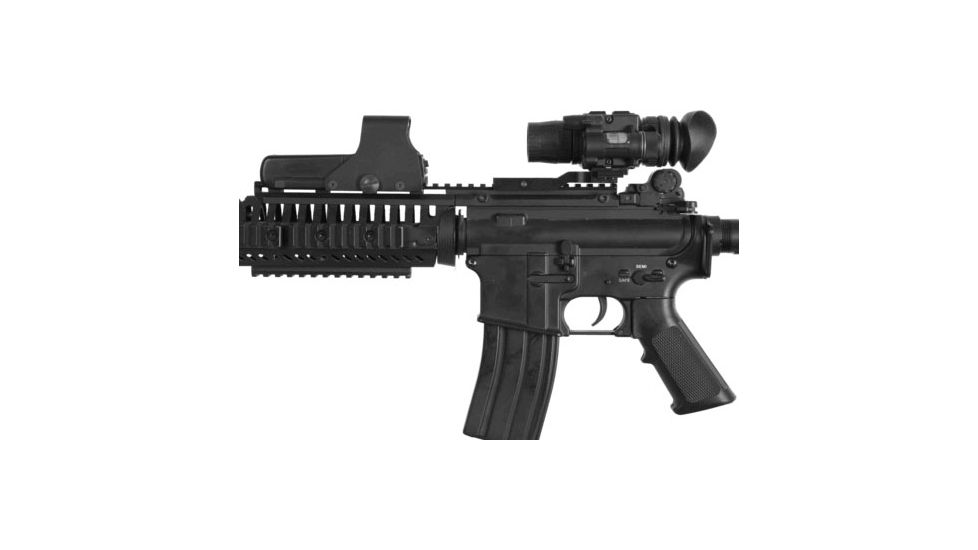

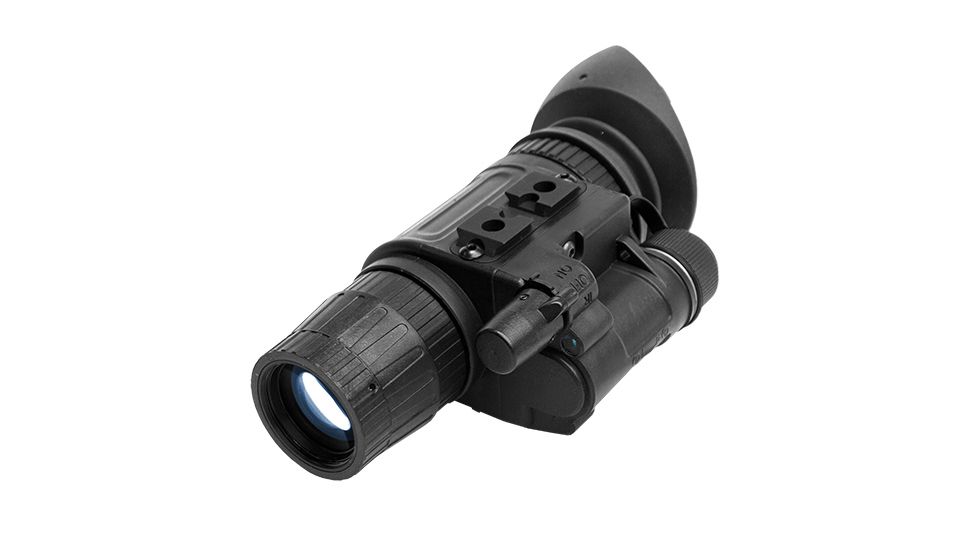

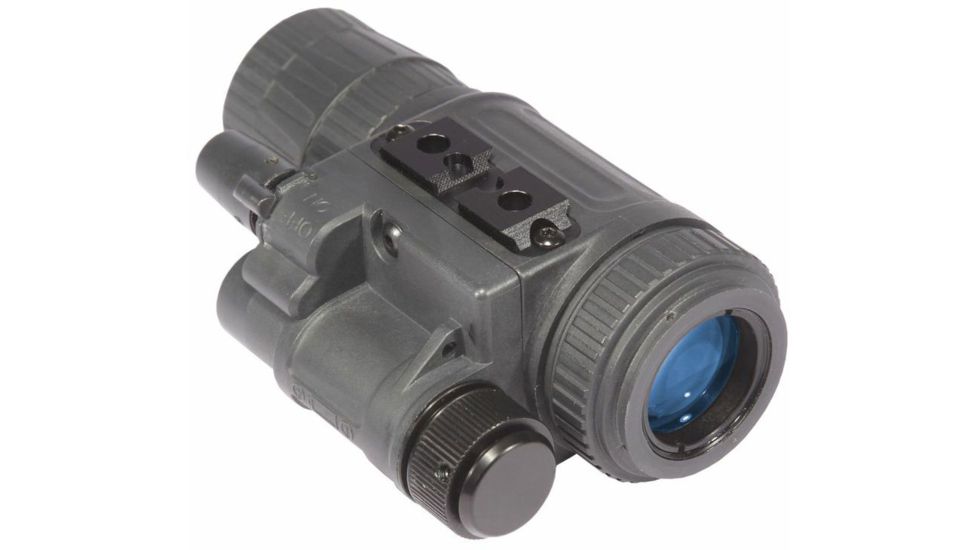

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P is an advanced multi-mission, multi-purpose 3rd Generation night vision hand-held, head-mounted, helmet-mounted, weapon-mounted
night vision monocular that enables activities such as walking, driving, military weapon firing, night surveillance, map reading, vehicle maintenance, and administering first aid under the cover of darkness. Thw Night Vision NVM 14-3P utilizes a single, technologically advanced Pinnacle Image Intensifier tube from ITT to provide crisp, clear images in the darkest of conditions. This ATN Night Vision unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus, and eyepiece focus along with using the principle of intensification of the residual light which is reflected from the surrounding objects. This Night Vision Monocular is also equipped ATN 's Total Darkness Technology featuring a built-in infrared light-emitting source giving it maximum flexibility even when available ambient light is minimal. The optical system of the rugged NVM143P Multi-purpose nightvision scope consists of: an objective lens, an image intensifier tube and an eyepiece. The ATN Monocular NVMPAN 143P is smaller and lighter than the ATN Mil Spec PVS14 and is fully submersible to a depth of 66 feet (20 meters). The NVM143P Monocular is the total night vision package for the modern nighttime military ope rator, police surveillance, search/rescue, or civilian concerned with securing family and property.
ATN night vision units with the 3P designation use ITT Pinnacle Image Intensifier tubes.
| Intensifier Tube: | 3rd Gen. Pinnacle |
| Magnification: | 1X |
| f-Number: | 1.2 |
| Field of View: | 40 degrees |
| Eyepiece Diopter Adj.: | -6 to +2 |
| Resolution: | 64-72 lp/mm |
| Signal to noise ratio: | 24 typical |
| Photocathode Sensitivity: | 2000-2800 |
| Eye Relief: | 25 mm |
| Focusing range: | 0,25m to infinity |
| Voltage: | 3.0 VDC or 1.5 VDC |
| Power Requirements: | 1 CR123A or 1 AA |
| IR Illumination Range: | 20 meters |
| 1 CR123A battery: | 50 hours |
| Weight (with battery): | 335 grams |
| Length: | 140 mm |
| Width: | 50 mm |
| Height: | 69 mm |
| Operation temperature: | -40 +50°C |
| Storage temperature: | -50 +70°C |
| Product Code | UPC | SKU |
|---|---|---|
| AT-NV-NVMPAN143P | 658175131731 | NVMPAN143P |
