Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

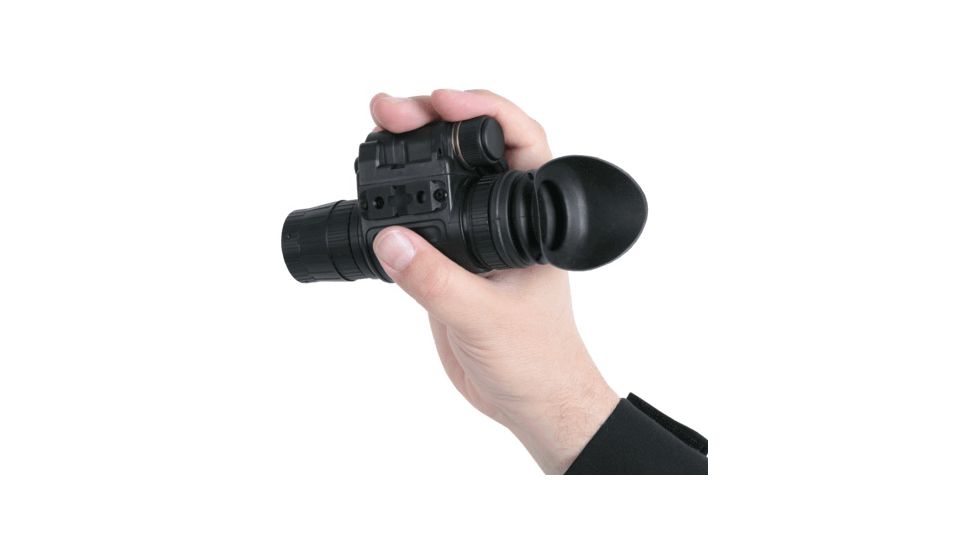

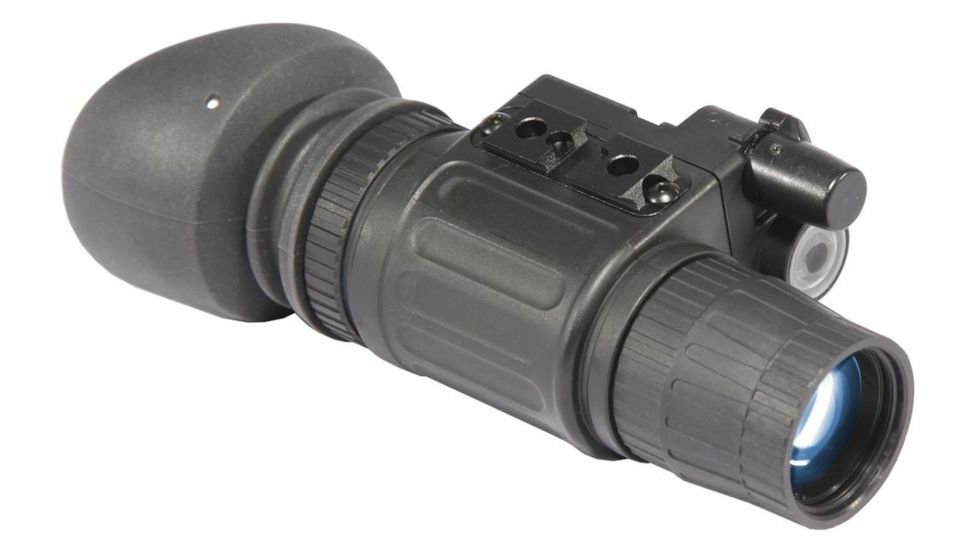

ATN NVM14-WPT Night Vision Monocular is a high performance, versatile night vision monocular. It is designed to be multifunctional: hand-held as a monocular, head-mounted/ helmet-mounted as
a single-eye goggle, or weapon- mounted as a night scope.The NVM14-WPT by ATN has an optional flip-up headset or helmet mount with an automatic off-feature. The automatic off-feature turns the unit off when it is flipped-up out of the viewing position.
This ATN NightVision Monocular has a host of additional features such as a built-in IR illuminator with rotary lens to select between IR Spot or Flood Beam as well as a built-in automatic highlight cutoff to protect the image intensifier. The NVM-14 also includes a bright light and low battery warning indicators built into the viewing area of the eyepiece.

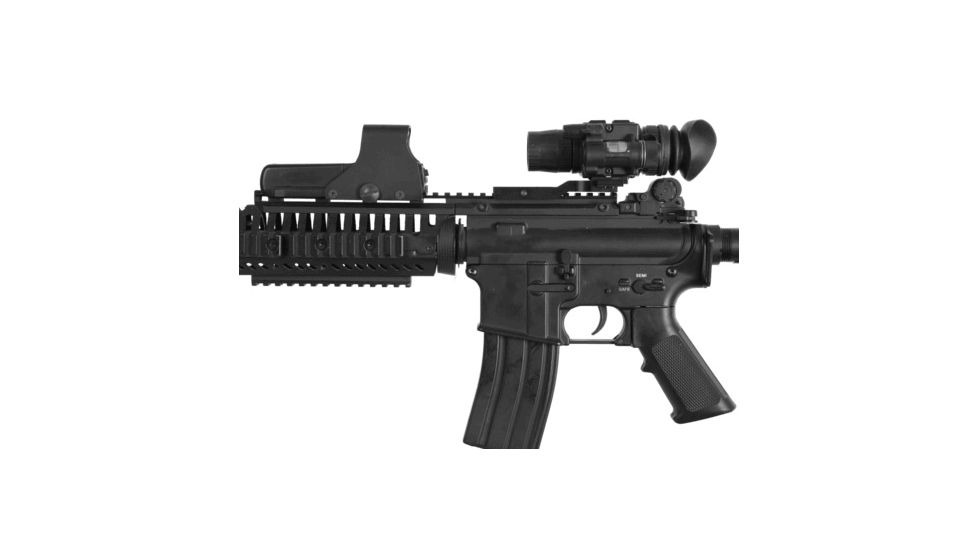

The ATN NVM14-WPT is compatible with most weapons, IR laser aiming/illuminating devices and standard collimated reflex sights. Optional: System/IIT service life recorder-feature that lets you measure the hours of operation (within one minute) that have been used on the system. Don't forget to check out our white phosphor technology page!
| Magnification: | 1X |
| Lens System Element: | F1.2, 25mm |
| Exit Pupil: | 14mm |
| Eye Relief: | 25mm |
| Eye Use: | Left or Right |
| FOV: | 40 deg. |
| Photo Cathode Type: | Multi-Alkali |
| Resolution: | 60-74 lp/mm Typical |
| Signal-to-Noise Ratio: | 18-26 - 22 Typical |
| Tube Life: | 10,000 Hours |
| Range of Focus: | .25m to infinity |
| IR Illumination Range: | 20 meters |
| Width: | 50mm |
| Operating Temperature: | -40 +50C |
| Storage Temperature: | -50 +70C |
| Battery Life w/o IR ON: | 30 hrs. (AA), 60 hrs. (3V, Lithium) |
| Battery Life w/ IR ON Continuous: | 30 hrs. (3V, Lithium) |
| Waterproof: | 20m for 1 hr. |
| Dimensions: | 120 x 49 x 69mm (4.7" x 2.8" x 2") |
| Weight w/ Battery: | .34kg (.75lbs) |
| Product Code | UPC | SKU |
|---|---|---|
| AT-NV-NVMPAN14WP | 658175900023 | NVMPAN14WP |
 |
|
 |
 |
