The ATN PS22-HPT Day/Night Tactical Kit - PS22-HPT Night Vision Sight & Trijicon 4x32 ACOG, QRM Riflescope is a Generation 2+ Night Vision Kit by ATN that includes all the components needed for an effective day and night riflescope system. The ATN PS22-HPT Day / Night Tactical Kit includes the ATN PS22-HPT Generation 2+ Night Vision Weapon Sight NVDNPS22H0, and the Trijicon 4x32 ACOG Riflescope TA01NSN.

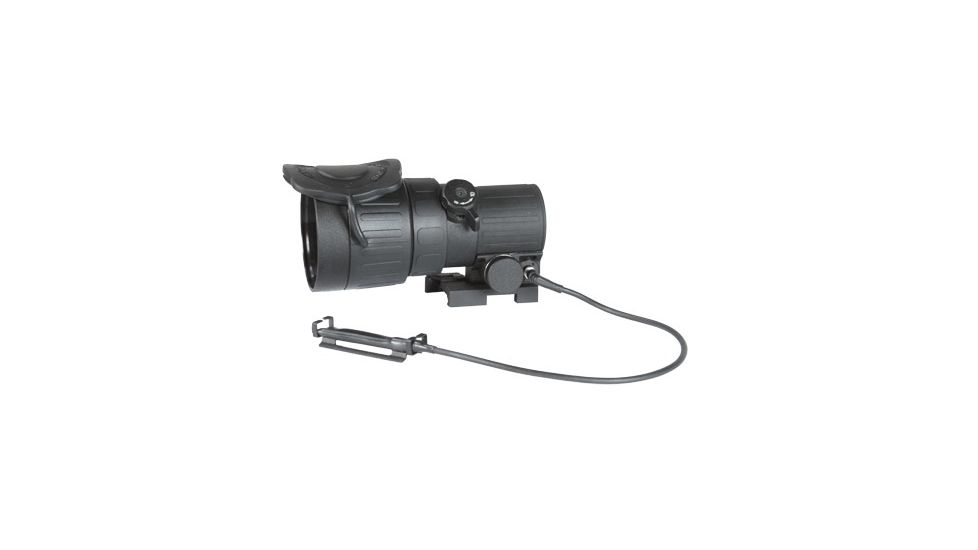

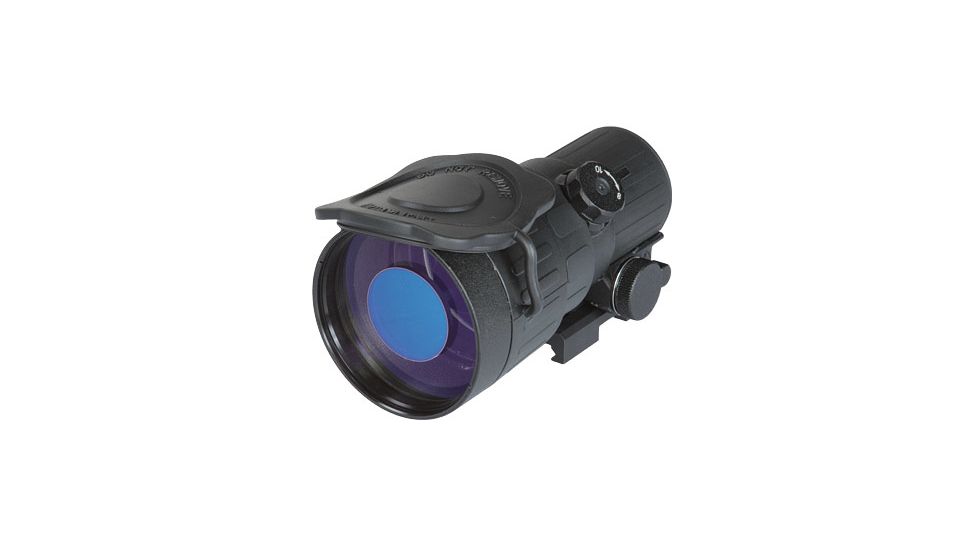

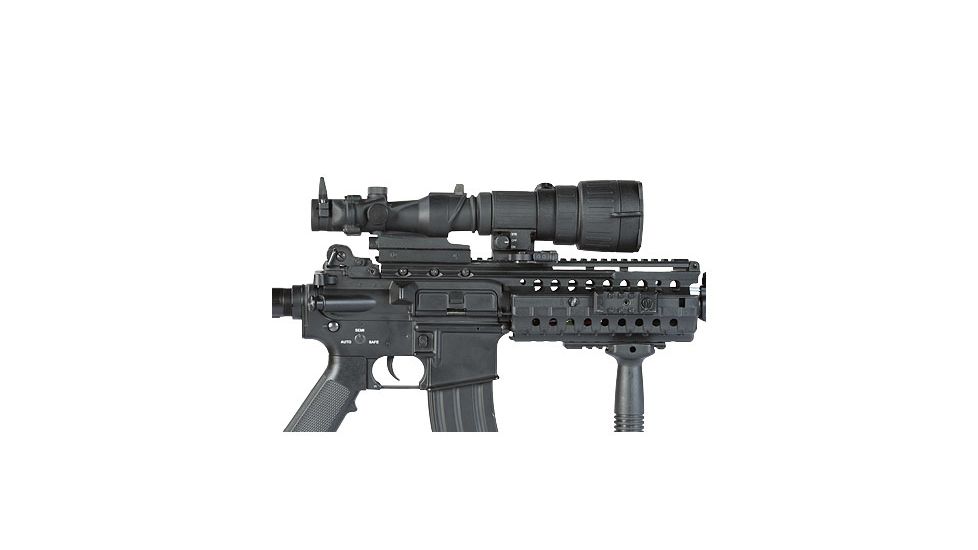

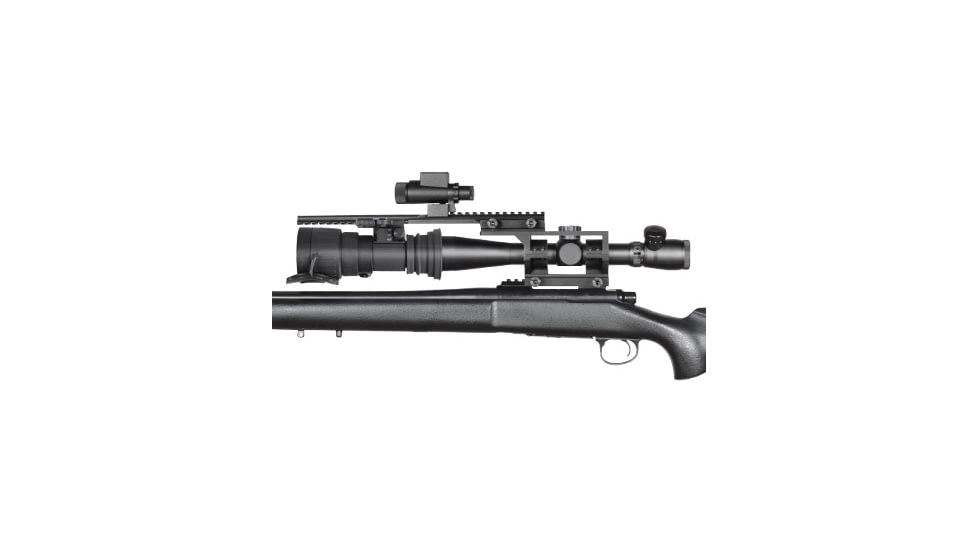

The ATN PS-22-HPT Gen.2+ Night Vision Weapon Sight NVDNPS22H0 from ATN is an attachment for daytime riflescopes with a 1x-6x (2.5x-4x are optimal) magnification that converts the scope into a high quality, accurate night vision weapon sight. The PS-22-HPT mounts in front of the Trijicon Rifle Scope. The PS22HPT comes standard with 7/8" weaver mount. There is also an adapter for an ARMS quick release mount. Optional Ring Adapters allow the unit to mount onto the objective of the riflescope (25-58mm diameter). The IR illuminator can be mounted onto the optional Picatinny Rail. The PS 22 - HPT utilizes a 2nd Gen.+ HPT Image Intensifier Tube. This HPT High Performance Tube provides improved performance standards for resolution and signal to noise specifications. The ATN PS 22-HPT 's ingenious setup allows the shooter to go from day to night in less then 30 seconds without tools and changes in eye relief, and remains zeroed all around the clock. The ATN PS-22-HPT is a complex optical-electronic system. The device contains an image intensifier tube assembly with an integrated high voltage power source and a three volt battery housing.

The ATN PS22-HPT Day/Night Tactical Kit is available the following model:

• NVDNPS22H0TT1: ATN PS22-HPT Day/Night Tactical Kit w/ Trijicon 4x32 ACOG Riflescope TA01NSN

Magnification:		1X
Intensifier Tube:		HPT-2nd Gen+
Lens System:		F1:1.44, 80mm
FOV:		13°
Resolution:		54-64 lp/mm
Detection Range:		300
Recognition Range:		250
Power Supply:		(1) 3 Volt Battery (CR123A)
Range of Focus:		10m to Infinity
Battery Life:		60 hours
Operating Temperature:		-40 +50°C
Storage Temperature:		-50 +70°C
Waterproof:		10m for 30min
Dimensions:		139mm X 80mm X 72mm
Weight:		0.6kg

• Easily changes daytime scope to Night Vision
• HPT 2nd Generation + intensifier tube
• Mounts in front of daytime scope, no re-zeroing required
• Multi-coated all glass optics
• Fast catadioptic front lens system
• Large 40mm eyepiece/output window
• Light weight and rugged
• Comes standard with 7/8" weaver mount
• Adapter for ARMS quick release mount included
• Optional adapters for mounting onto the objective of the day scope (25...58mm diameter)

• ATN PS22-HPT Night Vision Sight
• Trijicon 4x32 ACOG Riflescope TA01NSN

The ATN PS22-HPT Day/Night Kit is also available in other Generation models:

• Generation 2+: ATN PS22-2 Day/Night Kit
• Generation 2+ CGT: ATN PS22-CGT Day/Night Kit
• Generation 3: ATN PS22-3 Day/Night Tactical Kit
• Generation 3 Select Alpha: ATN PS22-3A Day/Night Tactical Kit
