Product No Longer Available
Unfortunately EOTech M953 1x Night Vision Binocular Gen 3 Handheld or Helmet Mounted M 953 (AN/PVS-15) is not listed by RangeFinders.
Product Info for EOTech M953 1x Night Vision Binocular Gen 3 Handheld or Helmet Mounted M 953 (AN/PVS-15)

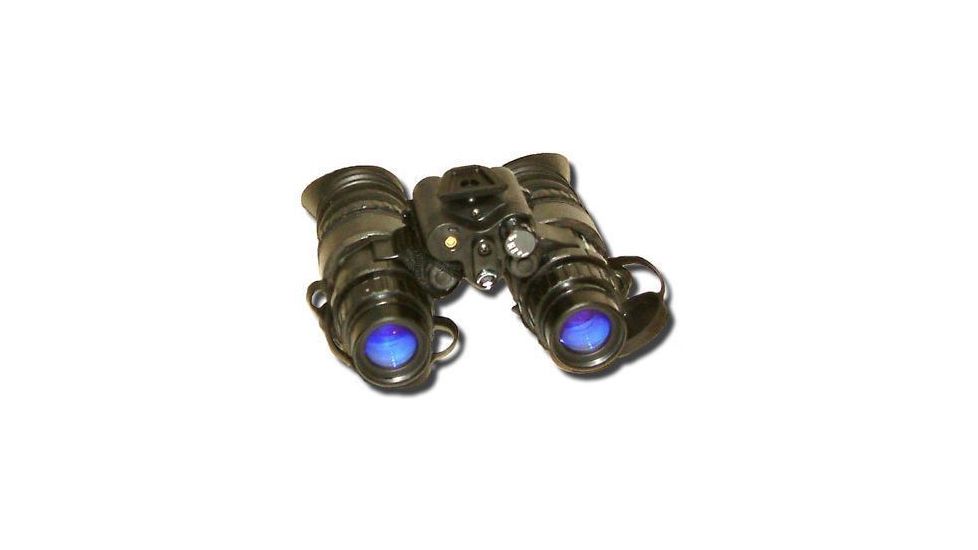

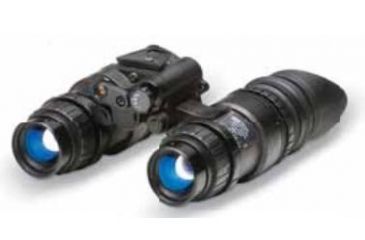

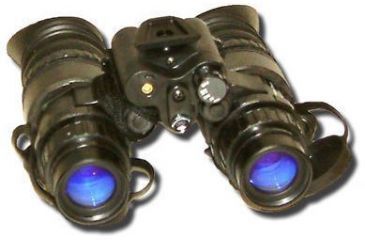

L3 EOtech Night Vision Binocular BNVS M953 (AN/PVS-15 Style) Gen 3 is based on the military DoD nomenclature AN/PVS-15 used by U.S. special forces. This rugged lightweight, self-contained twin tube goggle systems from EOTech offers better depth perception than single tube systems. This L3 EOtech Night Vision Binocular provides the same performance characteristics as found in aviator systems. The Night Vision Binocular M953 by EOTech can be operated as a hand-held , or helmet mounted. This night vision devices from EOTech was designed specifically where critical mission performance and depth perception factors are required elements. For more variety of Eotech Night Vision and ITT Night Vision models please visit our page.
Specifications for L3 EOtech BNVS M953 AN/PVS-15 Style Night Vision Binocular Gen 3 MVP-M953-I:
| Generation: | 3 U.S. | |
| Resolution: | 64 lp/mm (Min) | |
| Film: | Unfilmed | |
| Gate: | Autogated | |
| Signal to Noise (Min): | 25 to 1 | |
| Photocathode Sensitivity: | 1800 uA/lm @ 2856K | |
| Magnification: | 1x | |
| Field of View: | 40 degree | |
| Objective Lens: | f/1.2 (27mm) | |
| Diopter Adjustment: | +2 to -6 | |
| Minimum Focus: | 25 cm | |
| Interpupillary Adjustment: | 52 to 80 mm | |
| Battery Type: | One AA battery | |
| Weight: | 23 oz / 650 grams | |
| Battery Life: | >10 hours avg. | |
| IR Illuminator: | Yes (built in) | |
| Warranty: | One (1) Year | |
| Submersible: | 20 meters or 66 feet | |
| Eye Relief: | 25 mm | |
| Operating Temp. Range: | -32 Deg C to +49 Deg C | |
| Storage Temp: | -51 Deg C to + 71 Deg C | |
Features of L3 Eotech Night Vision Binocular M953 (AN/PVS-15 Style) Generation 3:
- One Year Warranty
- Single AA battery operation
- Automatic Brightness Control (ABC)
- Built-in IR illuminator
- High-light cutoff
- Hands-free or one-hand operation
- Submersible to 66 feet (20 meters)
- IR light and low battery indicators
Package Contents:
- L3 EOtech BNVS M953 (AN/PVS-15 Style) Night Vision Binocular Gen 3 M953-I
- Binocular Assembly - Binocular system.
- Batteries - Two AA batteries.
- Eye Cup Assembly - Prevents the emission of stray light or facial reflections.
- Soft Carrying Case - Provides easy mobility of the device.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Sacrificial Window - Shields the optics from sand, air particles or anything that may scratch the lens.
- Demist Shield - Snaps onto the eyepiece to prevent condensation from forming on the optics.
- Operator's Manual - Product operations manual.
