Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049

Availability Notice for - Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049

We carry thousands of products in stock, but this specific item is currently not available for sale. Please feel free to browse the store for similar products or use the form below to contact our knowledgeable Product Specialists for estimated availability time frame or replacement options for Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 ().

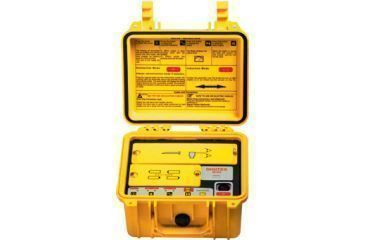

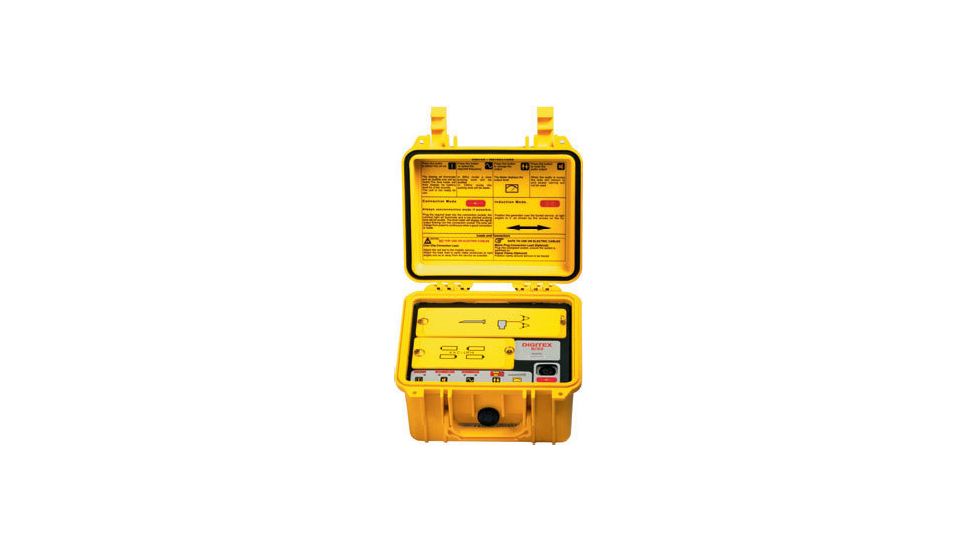

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049
Description

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049

This product may no longer available, but we have hundreds of thousands of other products for you to choose from. Check out our selection of products on sale, clearance items, new products, or just head to our Rangefinders.com and start browsing our extensive catalog of top quality items!

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 on sale and available from our online store. OpticsPlanet, Inc imageis an Authorized US Distributor for Leica Geosystems Surveying Equipment.

With the DIGISYSTEM operators can locate, trace and mark underground services quickly, precisely and reliably prior to excavation.Health and Safety authorities all over the world advise that before undertaking any kind of excavation operators should firstly scan an area with a Cable Avoidance Tool. Even with this advice, site workers are still injured and killed due to inadvertently striking buried cables. The Leica DIGISYSTEM product family works to eliminate these sorts of risks on your site by removing the possibility for human error from the locating process using the latest in location technology. By introducing an automatic pinpointing facility to accurately locate the cable, always starting up in power mode and at maximum sensitivity the Leica DIGI System Underground Utility Locators take away the need for awkward manual tuning, keeps you safer and locates faster.

Designed in conjunction with the Leica DIGICAT Underground Locator, to easily and accurately trace the route of, or locate, an underground cable or metal pipe that does not carry a naturally present signal. The Leica DIGITEX 8 / 33 Signal Generator generates a specific  “active” signal, which can then be traced using the Leica DIGICAT Burried Service Locator.

Specifications of Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049:

Frequency:   8 or 33 KHz

 Constant dual frequency available in connection mode
Tracing Range:  Induction typical 1500ft [50m], connection typical 800ft [250m]
Protection:  Conforms to IP57 (with the lid shut)
Included Accessories:  Crocodile equipped connection cable set with earth spike
Batteries:  4 x C alkaline (IEC LR14) (supplied)
Battery Life:  40 hours continous use
Weight:  2.95 kg [6.5 lb] including standard accessories and batteries

Package Contents:

  • Leica Geosystems Leica 731049 DIGITEX 8/33 Signal Generator
  • Leica Geosystems Connection Cable Set: Earth Spike, Crocodile Connection Cable Set
Models & part numbers

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 Options

Product Code UPC SKU
L5-SQ-731049 731049 731049
