Leica Geosystems Rugby 50 One Button Construction Laser w/ Carrying Case 754996

$60900
Free Shipping
Product Code L5-SQ-754996-DMO
UPC
SKU 754996-DMO
Condition
Description

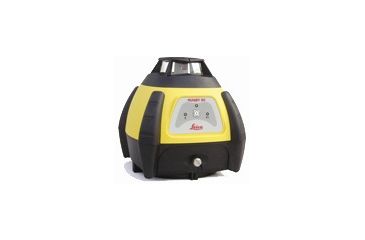

Leica Geosystems Rugby 50 One Button Construction Laser w/ Carrying Case 754996

Leica Rugby 50 Self-Leveling Construction Laser is rugged, reliable, accurate. The Leica Rugby 50 One-Button Construction Laser is the affordable “little brother” of the popular Leica Rugby 100 Construction Laser,image another great piece of Leica surveying equipment. The Leica Geosystems Rugby 50 Laser provides value where ever it is used. Work gets done faster and more accurately with the surveying equipment, providing savings in labor, time and materials. As a contractor, you know the values of lasers. Built to Leica Geosystems’ tough standards, you can trust the Leica Rugby 50 Construction Laser to provide you with the right tool to get the job done.

Note: Leica Rugby 50 Single Button Surveying Laser does NOT come with a battery door.

Specifications of Leica Rugby 50 One Button Construction Laser w/ Carrying Case:

Operating Range: 300m (1000 ft) Diameter
Self-leveling Accuracy: ±2.6mm at 30m
Self-leveling Range: ±5°
Rotating Speeds: 10rps (600 rpm)
Laser Diode (type): 780nm (infrared)
Dimensions (HWD): 158mm x 163mm x 166mm
Weight: 4 lbs (w/ batteries)
Battery Type: Two D-cells or NiMH pack
Operating Temperature: -20 to +50°C
Storage Temperature: -40 to +70°C
Dust / water (IEC60529): IP55

Features of Leica Rugby 50 One Button Construction Laser w/ Carrying Case 754996:

  • Simple, one- button operation
  • High impact composite housing
  • Fully sealed with enclosed head
  • Watertight for all conditions
  • Long battery life
  • H.I. (Elevation) Alert protection
  • Low battery indicator
  • Optional alkaline or NiMH batteries

Always automatic - Always self-leveling

The Leica Rugby 50 Construction Laser is designed to always turn on in automatic self-leveling mode. No concerns for setting up the laser incorrectly. Set up the Leica Rugby 50 within its wide leveling range, the instrument will automatically self-level and work can begin.A

A

H.I. (Elevation) Alert

The H.I. or Elevation Alert function monitors the leveling of the Leica Rugby 50. Any significant disturbance or movement of the tripod will cause the alert function to activate. The Leica Rugby 50 Construction Laser will stop operation and will sound an alarm to prevent possible errors.

A A

Out of level indication

During normal operation, the Leica Rugby 50 Laser continuously self-levels. Small vibrations and disturbances may cause an out of level condition. The head will stop momentarily and the emission LED will blink until the unit re-levels and work can resume.

Package Contents:

  • Leica Rugby 50 One Button Construction Laser w/ Carrying Case 754996
Models & part numbers

Leica Geosystems Rugby 50 One Button Construction Laser w/ Carrying Case 754996 Options

Product Code UPC SKU Leica Geosystems Rugby 50 One Button Construction Laser w/ Carrying Case 754996 Options
L5-SQ-754996-DMO 754996-DMO Open Box, Dealer Demo, Leica Geosystems Rugby 50 One Button Construction Laser w/ Carrying Case 754996
L5-SQ-754996-EE 754996 754996 New, Leica Geosystems Rugby 50 One Button Construction Laser w/ Carrying Case 754996
