Product No Longer Available
Unfortunately NG PVS7 QS MG Gen 2Plus Night Vision Goggles Quick Silver is not listed by RangeFinders.
Product Info for NG PVS7 QS MG Gen 2Plus Night Vision Goggles Quick Silver

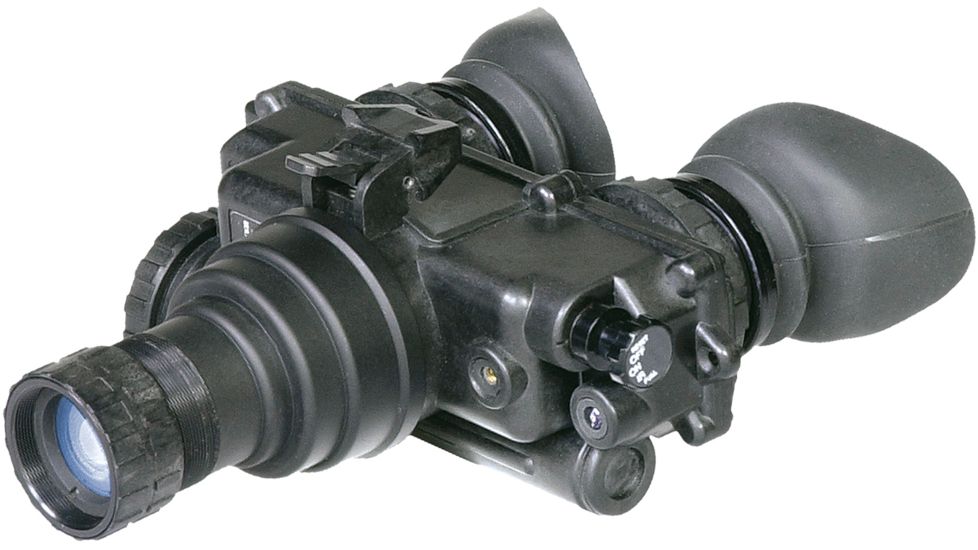

The NG PVS-7 Gen 2+ QS MG Night Vision Goggle is the most widely recognized and dependable U.S. Military night vision goggle system available. The AN/PVS-7B/D system has proven itself in combat due to its rugged, ergonomic design. The NG PVS7 Second Generation Night Vision Goggle is equipped with Manual Gain Control (MGC) which gives you ability to adjusts the brightness of the image tube to achieve the highest quality of the image under varying light conditions. It also has built-in infra-red illuminator which allows the user to operate under conditions of zero light. Lightweight, rugged, and versatile, it can be hand-held, head-mounted, and helmet-mounted. The dismounted goggle can also be used as an excellent long range viewer (with optional afocal lenses). The NG PVS 7 Generation 2 QS MG Night Vision Goggle is waterproof, compact, and has ergonomic, simple, easy-to-use controls.
Specifications for NG PVS7 GEN 2+ QS MG Night Vision Goggles:
| IIT Generation: | GEN 2+ |
| Resolution: | 47-54 lp/mm |
| Magnification: | 1x |
| Battery Life: | 30 hrs |
| Lens System: | F1.2 |
| FOV: | 40° |
| Range of Focus: | 0.20 to infinity |
| Diopter Adjustment: | +2 to -6 |
| Controls: | Direct |
| Bright Light Cut-off: | Yes |
| Automatic Shut-off System: | Yes |
| Infrared Illuminator: | Yes (Built-in with flood lens) |
| IR Indicator: | Yes (in FOV) |
| Low Battery Indicator: | Yes (in FOV) |
| Power Supply: | Two (2) AA batteries |
| Environmental Rating: | Waterproof |
| Operating Temperature: | -51 to +52 °C |
| Dimensions: | 162x 152 x 76 / 6.4 x 6 x 3 |
| Weight: | 0.68 / 24 kg / oz |
Features of NG PVS-7 Generation 2 Plus QS MG Night Vision:
- Compact, rugged design
- Waterproof
- Head or helmet mountable for hands-free usage
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Limited two-year warranty
Package Contents:
- NG PVS7 Second Generation QS MG Night Vision
- 2x AA-batteries
- Instruction Manual with Warranty Card
- Lens Cap
- Lens Tissue
- Packing Box
- Soft carrying Case
