Opti-Logic InSight Range Finder 800LH

$31995
Free Shipping
List Price $389.95
You Save $70.00 (18%)
Product Code OL-RF-INSIGHT800LH-BL
UPC 738490112315
SKU INSIGHT 800LHB
Model
Description

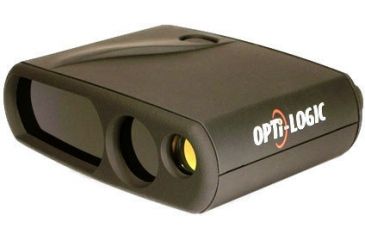

Opti-Logic InSight Range Finder 800LH

Opti Logic 800lh Laser Rangefinder - Hypsometer height measurement system combines a pulsed laser rangefinder and a vertical angle sensor in a lightweight, easy-to-use package. The hand-heldimage OptiLogic Laser Hypsometer Range-finder 800 LH is capable of measuring distances to non cooperative targets up to 800 yards away, depending on target size and reflectivity. Incorporating an internal electronic tilt sensor, the Opti Logic 800LH Rangefinder / Hypsometer makes vertical angle measurements with better than 1 degree resolution to remotely determine object heights. Applications of the OptiLogic 800LH Laser Rangefinder / Hypsometer include tree height measurements, construction, utilities, architectural measurements, landscaping, real estate appraisal, and much more. The Opti-Logic 800LH Laser Range Finder / Hypsometer is ideal for applications where surveying quality measurements are not required and higher instrument cost is not justifiable. Opti-Logic Laser Range-Finder / Hypsometer 800LH is designed for years of trouble-free operation and is proudly Made in the USA.

Opti-Logic 800LH Laser Range Finder now features a new LED internal display allows you to determine the distance to any target while looking through the viewfinder. The 800LH has two modes of height operation: 2 point (top/bottom) or 3 point (center/top/bottom) for measuring 2 and 3 point height & slope angles. Available in Black or Yellow.

Specifications for Opti-Logic Yellow Laser Range Finder / Hypsometer 800LH:

Operational Range of 800LH: 4-800 yd(Passive); Up to 999 yd(Reflective)
Approx. Size: 1.7" x 4" x 5.1"
Weight: 11 oz
Range Accuracy: +/- 1 yard (+/- 2 yards for very dark or very bright targets).
Height Accuracy: +/- 18 inches (+/- 1 yards for very dark or very bright targets).
Range Resolution: 1 foot / 0.5 yard / 0.1 meter
Angle Resolution: 0.1 degrees.
Readout: Internal LED display and External LCD display.
Units of Measure: Selectable in either feet, meters, or yards.
Viewfinder: Monocular viewing port. Red LED aiming sight, +/- 0.1 degrees
Battery: Single 9 volt battery. Operates for approximately 1000 readings.
Operational Temp: 0° - 40°C, 32°-104°F. Relative Humidity 5-95% non-condensing.
Laser Type: Infrared Class 1, eye safe 905nm Laser.

Features of Opti Logic Laser Range-Finder / Hypsometer 800LH:

  • Viewfinder: Look through the viewfinder window and aim the Red Dot at an object.
  • Range Button: Press the "Range" button to take distance or height measurements, or to select modes.
  • Display: The Opti-Logic Rangefinder/Hypsometer is User Programmable to read in either Feet, Meters, or Yards.
  • Low Battery: Replace the battery when the Low Battery symbol is displayed constantly.
  • Automatic Rain Mode: For range accuracy in light rain conditions.
  • Automatic Timeout: To save batteries, the instrument will automatically "time out" after about 7 seconds.
  • Proudly Made in the USA!

Package Contents:

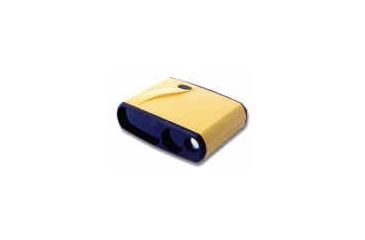

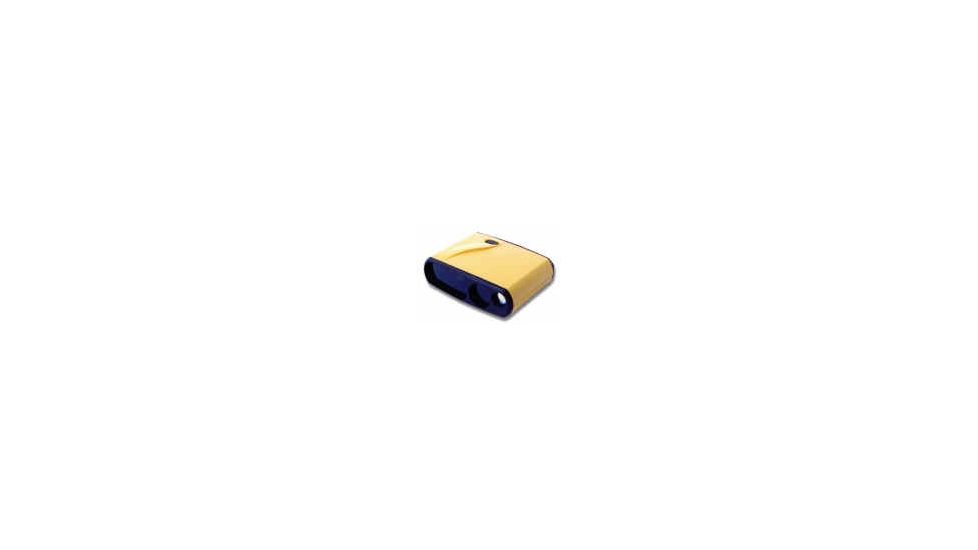

  • Opti-Logic 800LH Yellow Laser Range Finder / Hypsometer
  • Neck Strap
  • Durable Nylon Case
Models & part numbers

Opti-Logic InSight Range Finder 800LH Options

Product Code UPC SKU Opti-Logic InSight Range Finder 800LH Options
OL-RF-INSIGHT800LH-BL 738490112315 INSIGHT 800LHB Opti-Logic InSight 800LH Laser Range Finder, Black w/ Neck Strap & Case
OL-RF-INSIGHT800LH-YE 738490112339 INSIGHT 800LHY Opti-Logic InSight 800LH Laser Range Finder, Yellow w/ Neck Strap & Case
