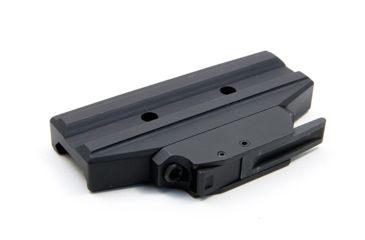

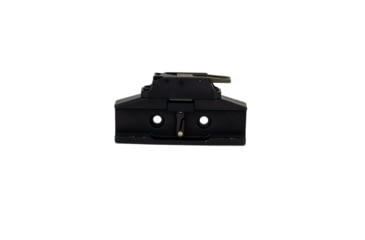

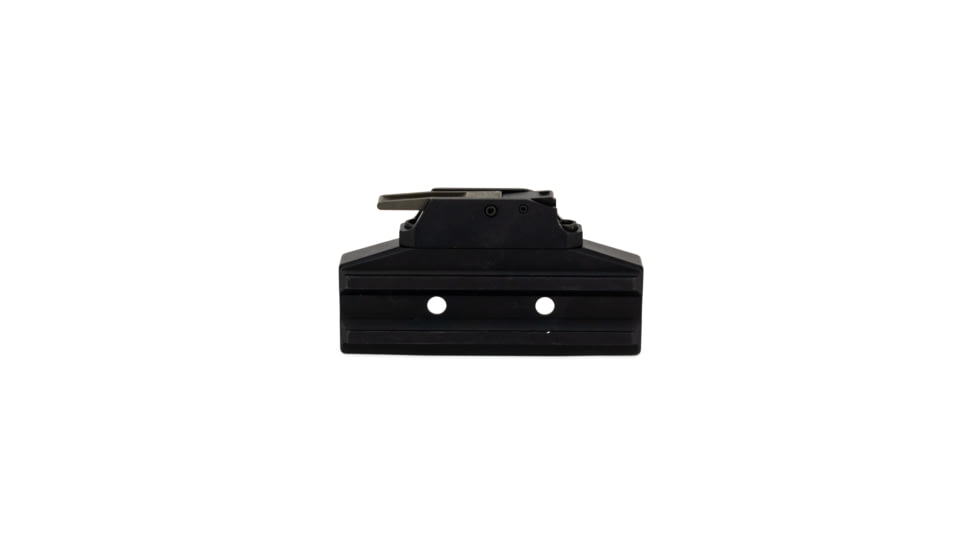

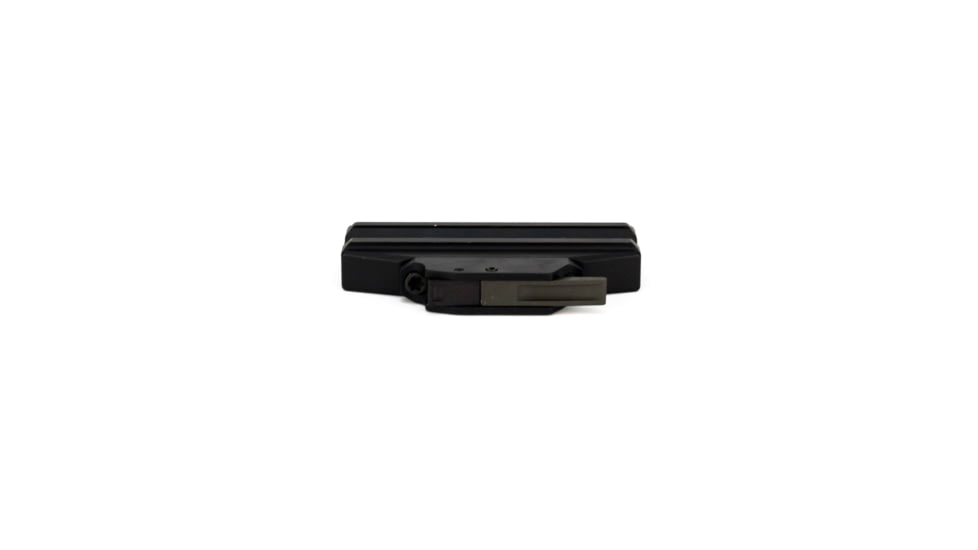

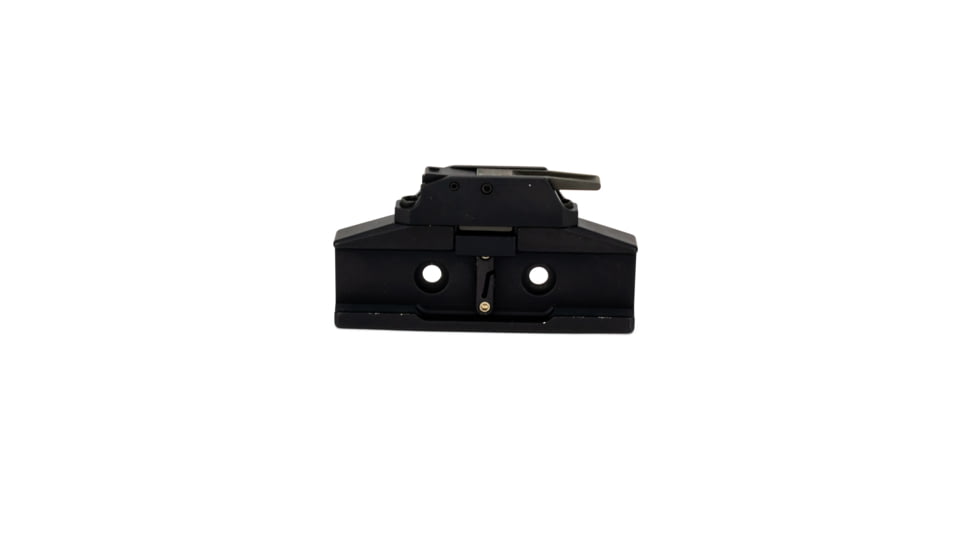

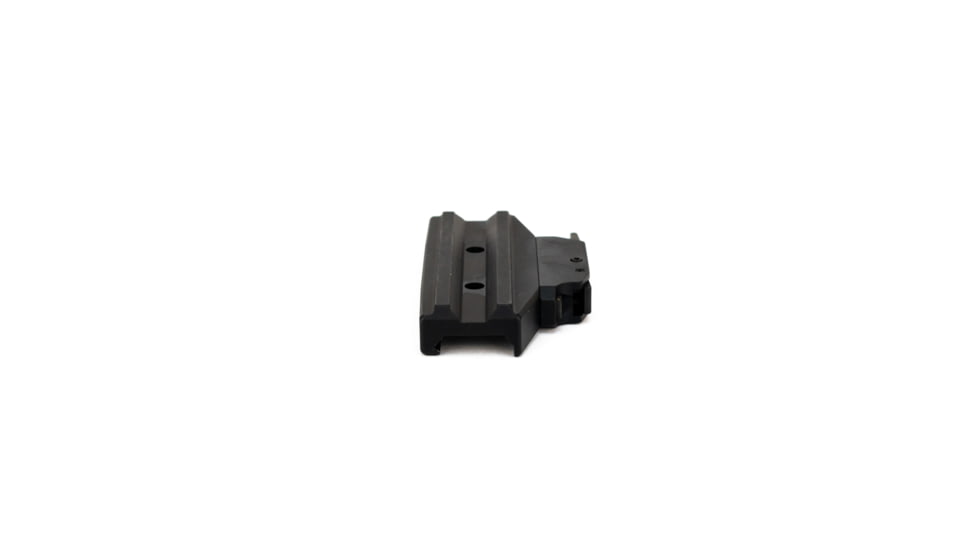

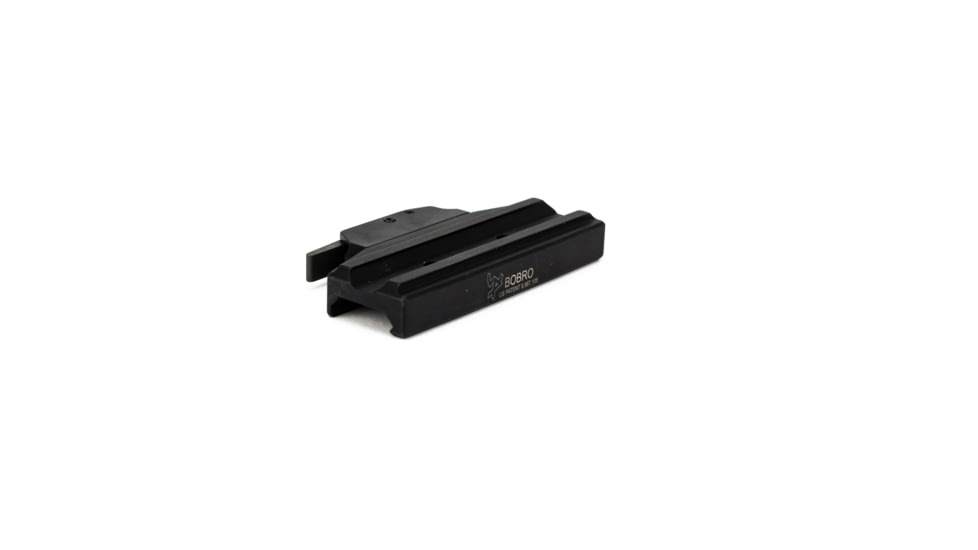

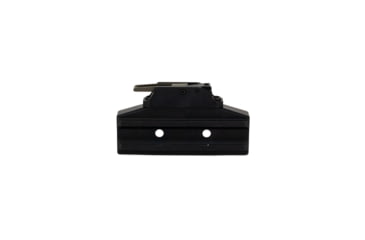

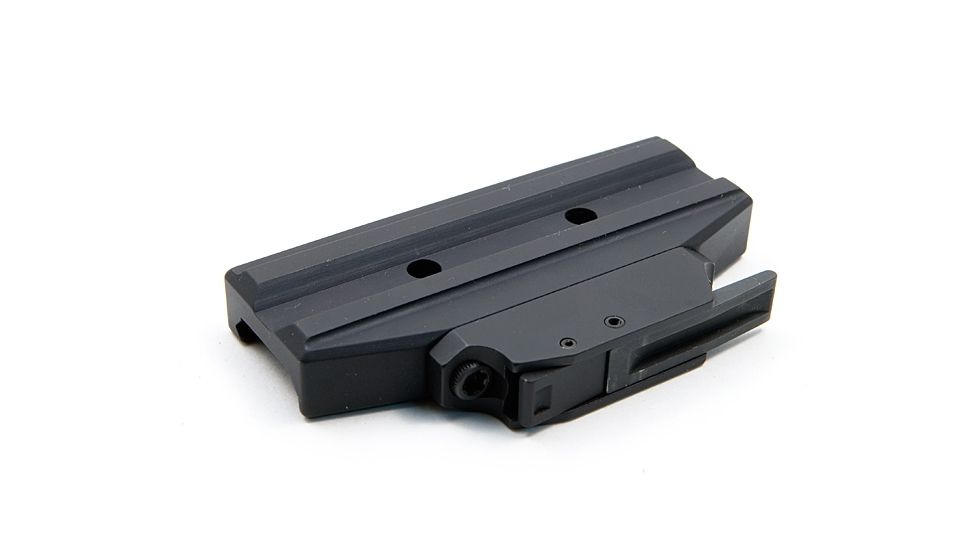

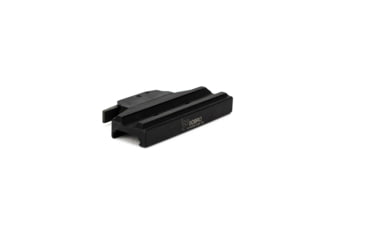

Bobro Engineering Trijicon Standard ACOG Mount B05-000-001 Multiple Options w/ Free S&H

The ACOG mount utilizes a single Patented US Patent 8,567,105 BLAC lever system and the mounting channel is to Trijicon factory dimensions. Height of mount is also to Trijicon factory dimensions. We were supplied critical dimensions directly from Trijicon, so it is completely within the manufacturers specifications, and will work with the ACOG properly. It is constructed from Aluminum alloy 6061-T6 and hard anodized to Mil-Spec. It is 3.5 inches long with 2 mounting fastener allocations. It can be configured for left/right lever placement. It utilizes a single BOBRO mechanical index and uses the factory supplied fastener for attachment to the mount body. It features the patent pending BLAClever system which requires no manual adjustment to attain a proper, rock solid engagement on a 1913 Picatinny rail.

Specifications for Bobro Engineering Trijicon Standard ACOG Mount:

Features of Bobro Engineering Trijicon Standard ACOG Mount:

• The Precision Optic Mount features the Patented BLAC lever system which was designed around the following parameters:
• Must be compatible with any 1913 Specification Rail
• to include systems that are out of specification (within reason) and this includes Weaver rails.
• Must be completely tool and user adjustable free
• It needs to be 100% self contained and mate securely to any rail without the user having to tailor the pressure/engagement position.
• Must lock with enough pressure to positively attach any device or optical instrument to a rail without movement
• static or dynamic forces not withstanding.
• The rail must not experience any deformation due to user error
• This must include synthetic (plastic/polymer/composite) rail systems.
• Auto Index capability
• The device must also index parallel to the bore
• The unit must always repeat the forward shift (recoil forces direction of influence) not only to maximize zero repeatability
• but to take this step of installation out of the users initial mounting sequence
• Index must be redundant.
• Unit must not shoot loose due to improper mounting or a mechanical bottoming out.
• The system must incorprate a safety that prevents the lever from being accidentally opened
• The safety must be able to be manipulated in conjunction with the lever rotation
• so that only one hand is required to open it.
• The unit will utilize constant force to ensure required pressure in all conditions
• The force must be substantial to prevent any shift forward/aft left/right.
• The pressure must be applied in a linear direction centered in the main body to prevent cocking of the mount.
• It must be easy to manipulate by gloved or fatigued hands.
• It must be extremely robust
• and withstand shock and impact to the system housing.
• There were others
• but by listing them we would compromise our trade secrets.
• Included Accessories:
• Instruction and Toolkit

Package Contents:

• Bobro Engineering Trijicon Standard ACOG Mount
