Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP) Multiple Options w/ Free Shipping and Handling — 2 models
Tap Tap to Zoom
Code: LW-RS-HLUDRRS-UD530X56
MPN: UD530X56
UPC: 810194020995
Code: LW-RS-HLUDRRS-UD530X56-R
MPN: UD530X56-R
UPC: 810194021008

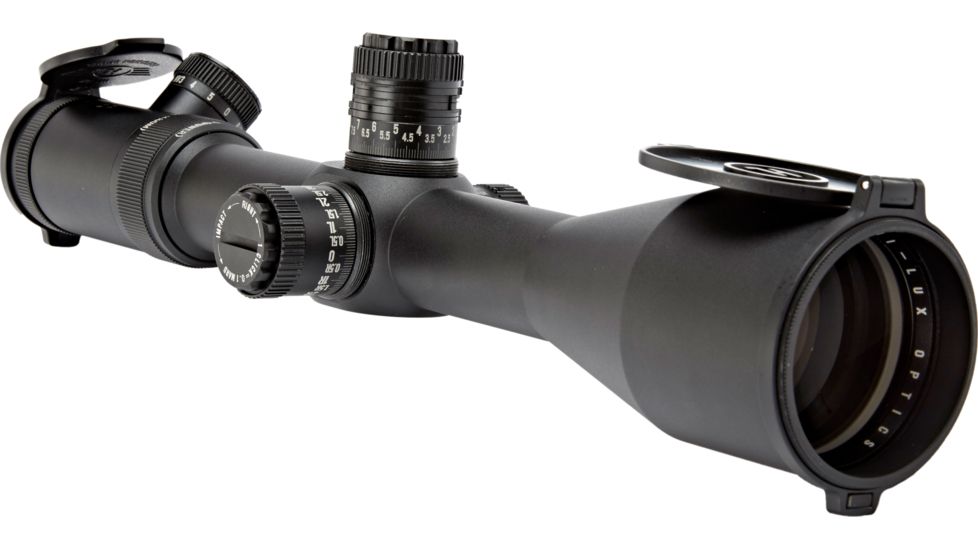

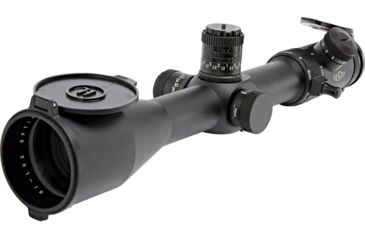

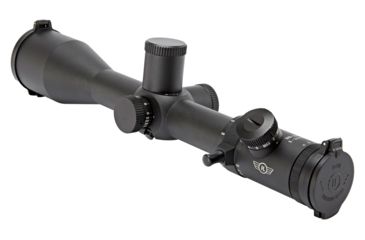

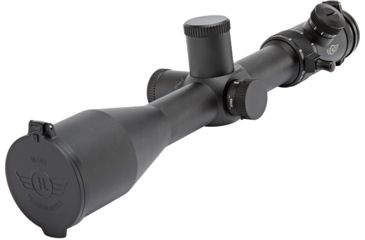

Product Info for Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP)
Looking for a riflescope that compensates for bullet drop regardless of rifle and caliber with the turn of a dial? The Uni-Dial 5-30X56s patented ballistic elevation turret has six colored markers which can be positioned to quickly reference up to 6 different distances. All you need is to know your Data of Previous Engagement or D.O.P.E. Once the turret has been set, the shooter will be able to hit targets by turning to the respective marker for that distance.

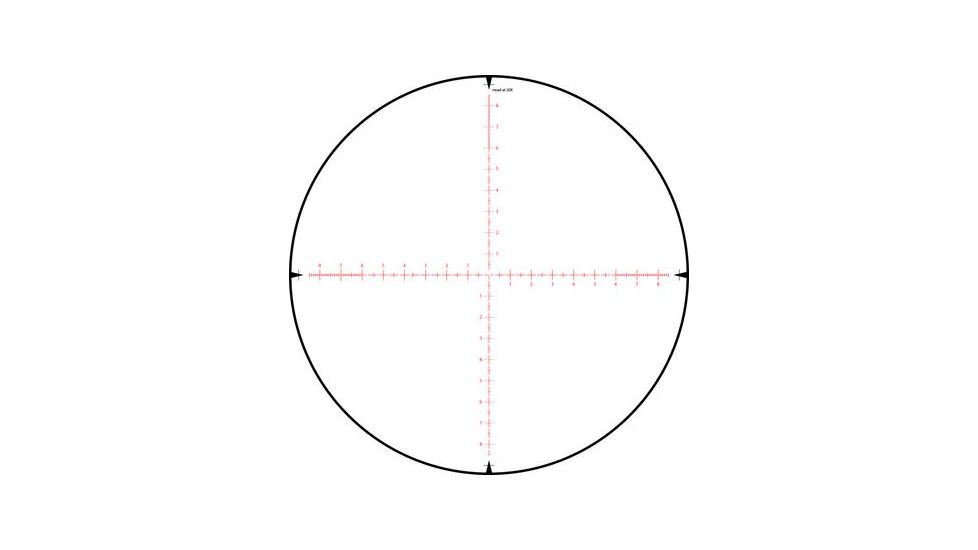

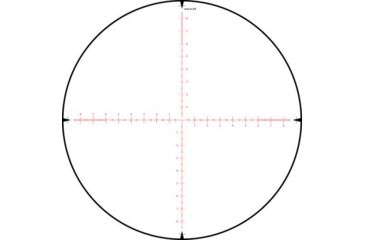

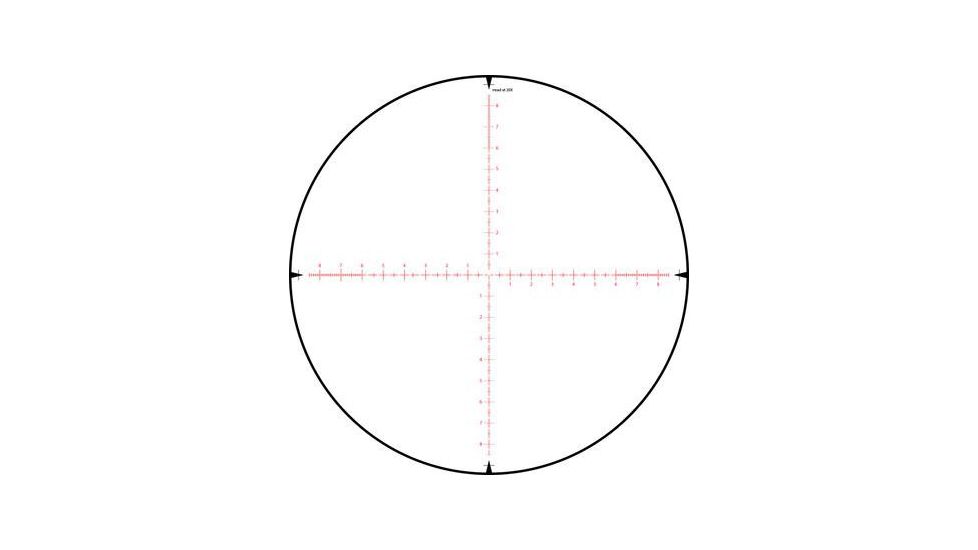

The Uni-Dial 5-30X was designed for the long range target shooter or hunter. With a 56mm objective and 34mm tube, the Uni-Dial 5-30X is a beast at light gathering. The HD Low Dispersion glass lenses produce a bright and crisp sight picture with true color fidelity, even in low light. The Second Focal Plane Mil Reticle clearly indicates every quarter Mil. All glass lenses in the UD530X56 are fully multi-coated with DiamondTuff14 for maximum light transmission. Nitrogen purging and rubber gasket seals guarantee fogproof performance in all temperatures and climates.
Specifications for Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP):
| Manufacturer: | Hi-Lux Optics |
| Objective Lens Diameter: | 56 mm |
| Magnification: | 5 - 30 x |
| Tube Diameter: | 34 mm |
| Reticle Focal Plane: | Second Focal Plane (SFP) |
| Exit Pupil: | 1.72 - 10.3 mm |
| Finish: | Matte |
| Field of View, Linear: | 1.2 - 7.5 ft at 100 yds |
| Eye Relief: | 3.3 in |
| Diopter Adjustment Range: | -3 - 3 dpt |
| Color: | Black |
| Weight: | 32 oz |
| Adjustment Click Value: | 0.1 Mil Rad |
| Length: | 14.6 in |
| Adjustment Type: | MOA |
| Parallax: | 10 m to Infinity |
| Illumination Type: | LED |
| Battery Type: | CR2032 |
| Width: | 4 in |
| Fabric/Material: | Aluminum |
| Adjustment Range: | 85 MOA |
| Height: | 3.5 in |
| Focus Range: | 10 m to Infinity |
| Lens Material: | Glass |
| Optical Coating: | Diamond Tuff14, Fully Multi-Coated |
| Brightness Settings: | 11 |
| Battery Life: | 300 hours |
| Operating Temperature: | -20 - 60 Celsius |
| Weather Resistance: | Yes |
| Water Resistance Level: | IP67 |
| Water Resistant Mark: | 1 m |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Battery Quantity: | 1 |
| Magnification Type: | Variable |
| Condition: | New |
| W/E Travel at 100 Yds: | 85 MOA |
| Quantity: | 1 |
| Attachment Type: | Riflescope Ring |
Features of Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP)
- The Uni-Dial 5-30X56 features a wide 5-30X magnification range
- The scope is housed in a 34mm tube for greater internal adjustment travel
- The Elevation turret features a toolless adjustable ballistic turret, which can be set for various distances based on your rifle's DOPE
Package Contents:
- Hi-Lux Optics Uni-Dial 5-30x56mm Rifle Scope, 34mm Tube, Second Focal Plane (SFP)
- Flip Up Lens Covers
- Microfiber Cloth
- CR2032 Battery
