EOTech M914 PVS-14 Type NVG Monocular has been discontinued by EOTech and is no longer available. Our product experts have helped us select these available replacements below.

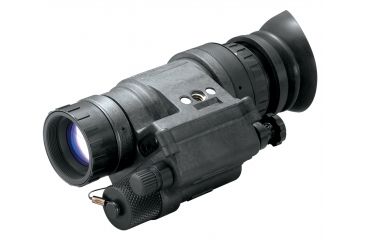

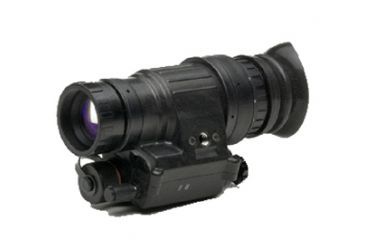

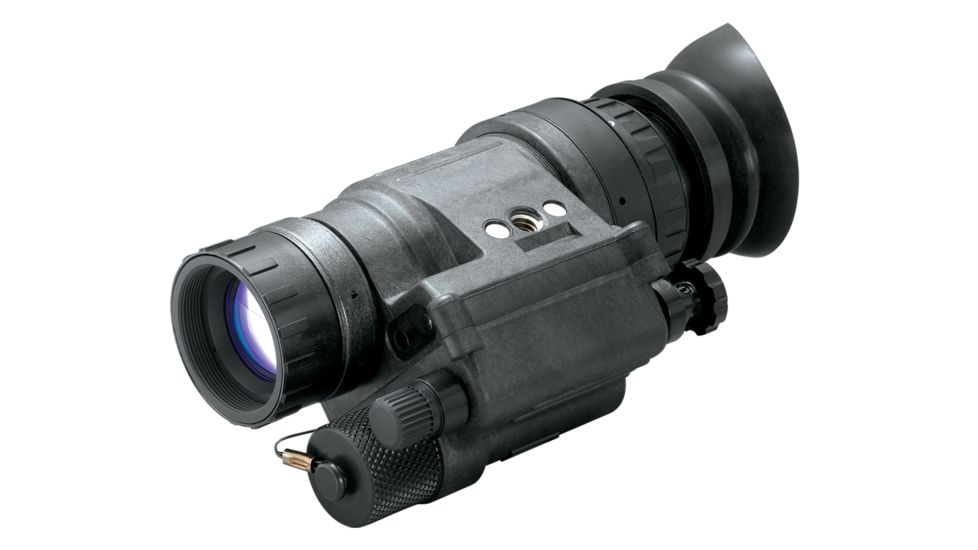

EOTech M914 PVS-14 Type NVG Monocular provides versatility and impressive image quality. The M914 (AN/PVS-14) monocular from EOTech features Light Cut-Off Tube Protection and Manual Gain Control. The EOTech PVS-14 offers the capabilities of a hand-held pocket scope, and can be mounted for right or left eye as a monocular and a weapon sight if mounted in conjunction with an infrared laser aimer. The EOTech M914 Night Vision Monocular delivers Gen 3 night vision performance with convenient hands-free operation or weapon-mounted operation. Make sure to see the full line of EOTech Night Vision devices for more versatile, high grade night vision devices.
| Optics | ||
|---|---|---|
| Magnification: | 1x | |
| Field of View (FOV): | 40.0° | |
| Objective Lens: | 27 mm (1.1 in.) | |
| Minimum Focus Distance: | 25 cm (9.8 in.) | |
| Eye Relief: | 25 mm (1 in.) | |
| Diopter Adjustment: | +2 to -6 | |
| Gen III Image Intensification Tube Options | ||
| Alpha;Resolution: | 45 lp/mm (min);Signal/Noise | |
| Delta;Resolution: | 64 lp/mm (min);Signal/Noise | |
| Omega;Resolution: | 64 lp/mm (min);Signal/Noise | |
| Power | ||
| Power Source: | 1 AA Battery | |
| Battery Life: | ~40 Hours at Room Temperature | |
| Physical Characteristics | ||
| Size: | 11.4 cm L x 5.1 cm W x 5.7 cm H (4.5 in L x 2 in W x 2.2 in H) | |
| Weight: | 290 g with battery (.6 lbs) | |
| Color: | Black | |
| Mounts: | Head and Helmet Mount Adapter
Weapon Mount Adapter for Picatinny Rail (MIL-STD-1914/STANAG 2324) |
|
| Warranty | ||
| Housing: | 1 year | |
| Tube: | 1 year | |
| Model Numbers | ||
| Alpha: | Model 245620-00 | |
| Delta: | Model 245620-003 | |
| Omega: | Model 245620-005 | |
