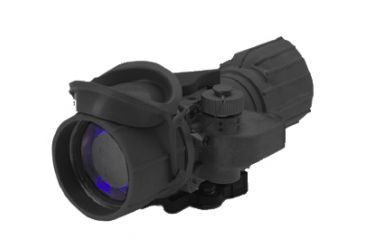

Name: EOTech Night Vision M2124 Clip-On Night Vision Device
Brand: EOTech
SKU: ET-NVM-M2124
Availability: Discontinued

Product Info for EOTech Night Vision M2124 Clip-On Night Vision Device

EOTech M2124 Night Vision Clip-On is a rugged device ready for the toughest tactical use. The M2124 Night Vision Scope from EOTech combines day and night vision sights which eliminates the need to re-zero, since the primary sight remains undisturbed. The EOTech M2124 Night Vision Sight has an advanced design which eliminates the typical requirement of removing a primary (day) sighting system since the CNVD mounts in line with a standard day optical sight. The EOTech M-2124 PVS-24 Night Sight maintains the user's consistent eye relief and shooting position as well as retaining user muscle memory. By operating the locking quick-disconnect, single-throw lever mounting system provided, the EOTech M2124 easily attaches to a MIL-STD-1913 rail interface system. The unit may also be used as a hand-held observation device. Be sure to see the full collection of EOTech night vision products for more high grade, useful night vision devices.

Specifications for EOTech Night Vision M-2124 Clip On Sight:

Optics

Field of View (FOV):	40.0°
Focal Length:	55 mm (2.2 in)
Minimum Focus Distance:	25 m (27.3 yd)
Magnification:	1x (Unity)
Detection Range:	500 m (546.8 yd)
Image Intensification Tube Options

Alpha:	Resolution:45 lp/mm (min) Signal/Noise:17.1:1 (min) FOM:1250 (max)
Delta:	Resolution:64 lp/mm (min) Signal/Noise:21.0:1 (min) FOM:1600 (max)
Omega:	Resolution:64 lp/mm (min) Signal/Noise:21.0:1 (min) FOM:Unrestricted
Power

Power Source:	1 CR123 Lithium Battery
Warning Indicator:	16(+) hours @ room temperature
Physical Characteristics

Size:	13.7 cm L (w/light baffle) x 9.7 cm W x 7.7 cm H (5.4 in L x 3.8 in W x 3 in H)
Weight:	771 g with battery (1.7 lbs)

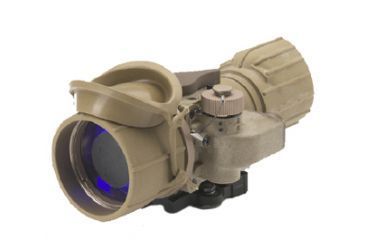

Color:	Available in Black or Taupe
Mount:	Single-Throw Lever Quick-Disconnect Mount for Picatinny Rail (MIL-STD-1913/STANAG 2324)
Warranty

Housing:	1 Year
Tube:	1 Year

Features of EOTech Night Vision M 2124 Night Vision Sight:

Converts to Night Vision without Zero Shift
Quick-Disconnect Weapon Mount for MIL-STD-1913 Rail Systems
Maintains SHooting Position and Eye Relief
Compact and Lightweight
Available in Black or Taupe
Generation III night vision
U.S. manufactured image intensifier tube
Optional Class A and Class C ("Leaky Green") Filters
Clip-On Power Supply (COPS) for pre-flight or dismounted operations
Low Profile Power Pack with primary and alternate battery plus aircraft power port provide triple redundancy for complete system confidence
Multiple Helmet Mounts
Clip-On Power Supply (COPS)
Dual AA Battery Operation
One-Year Warranty Standard
Improved 40° field of view

Package Contents:

EOTech M2124 Night Vision Clip-On Sight
Quick-Disconnect Mount
Batteries
Lens Cleaning Kit
Adjustment Wrenches
Operation Manual
Soft Carrying Case

Benefits of L-3 Night-Vision M-2124 Weapon Sight:

Converts to Night Vision without Zero Shift
Quick-Disconnect Weapon Mount for MIL-STD-1913 Rail Systems
Maintains SHooting Position and Eye Relief
Compact and Lightweight
Available in Black or Taupe
Generation III night vision
U.S. manufactured image intensifier tube

Features of L 3 Night Vision M 2124 Night Vision Sight:

Optional Class A and Class C ("Leaky Green") Filters
Clip-On Power Supply (COPS) for pre-flight or dismounted operations
Low Profile Power Pack with primary and alternate battery plus aircraft power port provide triple redundancy for complete system confidence
Multiple Helmet Mounts
Clip-On Power Supply (COPS)
Dual AA Battery Operation
One-Year Warranty Standard
Improved 40° field of view
