Leica DISTO Lino P3 Three Dot Laser Level, Layout and Alignment Tool Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica DISTO Lino P3 Three Dot Laser Level, Layout and Alignment Tool has been discontinued by Leica Disto and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tactical and Military Gear, Tactical Range Finders yourself to try and find the perfect replacement for you!
Product Info for Leica DISTO Lino P3 Three Dot Laser Level, Layout and Alignment Tool

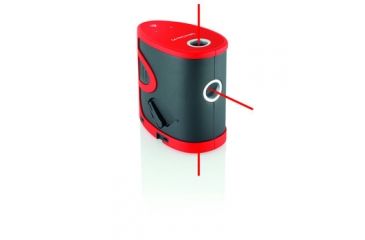

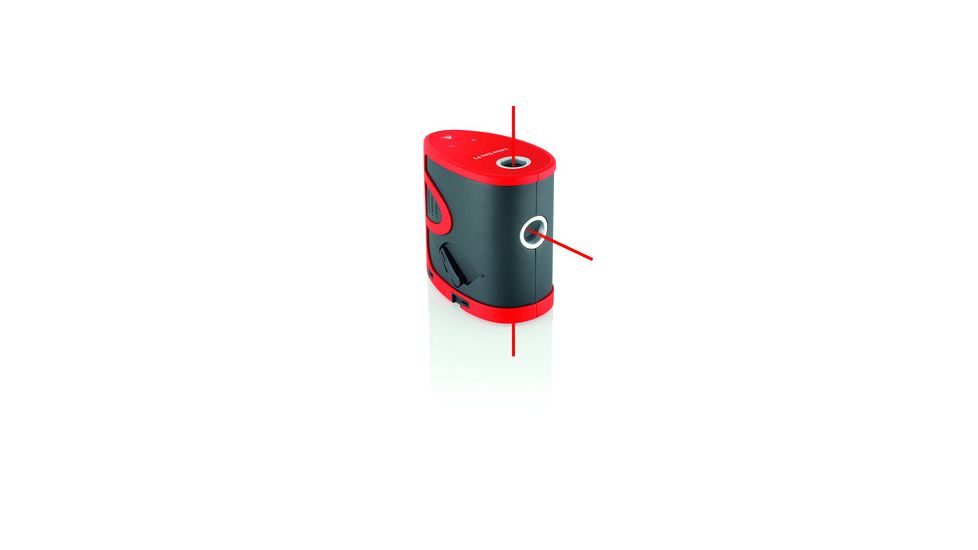

The Leica DISTO Lino P3 Three Dot Laser Level is excellent for plumbing up and down and transfers all the points you need, quickly and accurately. The Lino P3 by Leica Disto features the Power Range Technology, a magnetic multifunctional adaptor and it's self leveling. With Self-leveling, it is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignments of ± 4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines. Errors are prevented! The Leica Lino P-3 is excellent for plumbing up and down. The laser beam is projected above and below the instrument, allowing you to transfer reference points quickly and efficiently, e.g. from floor to ceiling. The adapter supplied with the Leica Lino P 3 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets. Robust housing The Leica Lino P3 is dust and splash-proof to IP54 and can be locked to protect the instrument during transport. See our full line of Leica Disto construction lasers well as rangefinders from many top brands. Leica Disto Lino P3 is a member of the quality line of Leica Disto Rangefinders.
Specifications for Leica DISTO Lino P3 Three Dot Laser Level:
| Range: | up to 15 m depending on lighting conditions |
| Leveling accuracy @ 5 m: | ± 1.5 mm |
| Self-leveling range: | 4° ± 0.5° |
| Accuracy of plumb point: | @ 5 m ± 1.5 mm |
| Number of laser points: | 3 |
| Beam direction: | up, down, forward |
| Laser type: | 635 nm, laser class II |
| Batteries: | type AA 3 × 1.5 V |
| Protection class splash water / dust proof: | IP54 |
| Operating temperature: | -10 °C to 40 °C |
| Storage temperature: | -25 °C to 70 °C |
| Dimensions (H × D × W): | 99.1 × 108.1 × 59.3 mm |
| Weight without batteries: | 310 g |
| Tripod thread: | 1/4" |
Features of Leica DISTO Lino P3 3-Dot Laser Level:
- Self-leveling
- Plumbing
- Expanded range of applications
- Robust housing
Package Contents:
- Leica DISTO Lino P3 Three Dot Laser Level, Layout and Alignment Tool 777067
- Target plate
- Magnetic multifunction adapter
- Alkaline batteries (type AA, 3 × 1.5V)
- Pouch
