Leica DISTO Lino P5 Five Dot Laser Level, Layout and Alignment Tool Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica DISTO Lino P5 Five Dot Laser Level, Layout and Alignment Tool has been discontinued by Leica Disto and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tactical and Military Gear, Tactical Range Finders yourself to try and find the perfect replacement for you!
Product Info for Leica DISTO Lino P5 Five Dot Laser Level, Layout and Alignment Tool

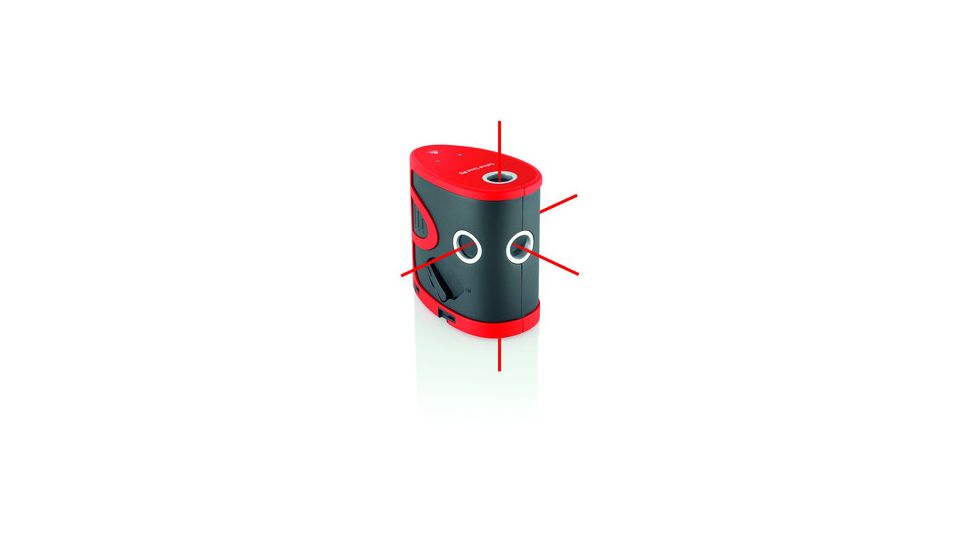

The Leica DISTO Lino P5 Five Dot Laser Level projects five laser beams, which are exactly at right angles to one another. The Lino P5 by Leica Disto greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient. With Self-leveling, it is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignments of ± 4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines. Errors are prevented! Setting out right angles The Leica Lino P-5 has five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient. In addition to the plumb beams, the Leica Lino P 5 projects three points at exactly the same height. Aligning windows, partition walls and other building elements becomes quick and easy. Turn the rotatable adapter to transfer reference points in no time at all across the room from one wall to another. Leave your spirit level and string line in your toolbox! The adapter supplied with the Leica DISTO Lino P5 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets. See our full line of Leica Disto construction lasers well as rangefinders from many top brands. Leica DISTO Lino P5 is a member of the quality line of Leica Disto Rangefinders.
Specifications for Leica DISTO Lino P5 Five Dot Laser Level:
| Range: | up to 15 m depending on lighting conditions |
| Leveling accuracy @ 5 m: | ± 1.5 mm |
| Self-leveling range: | 4° ± 0.5° |
| Accuracy of plumb point: | @ 5 m ± 1.5 mm |
| Number of laser points: | 5 |
| Beam direction: | up, down, forward, right, left |
| Laser type: | 635 nm, laser class II |
| Batteries: | type AA 3 × 1.5 V |
| Protection class splash water / dust proof: | IP54 |
| Operating temperature: | -10 °C to 40 °C |
| Storage temperature: | -25 °C to 70 °C |
| Dimensions (H × D × W): | 99.1 × 108.1 × 59.3 mm |
| Weight without batteries: | 320 g |
| Tripod thread: | 1/4" |
Features of Leica DISTO Lino P5 5-Dot Laser Level:
- Self-leveling
- Setting out right angles
- Aligning
- Transferring measured points
- Expanded range of applications
Package Contents:
- Leica DISTO Lino P5 Five Dot Laser Level, Layout and Alignment Tool 777068
- Target plate
- Magnetic multifunction adapter
- Alkaline batteries (type AA, 3 × 1.5V)
- Pouch
