Leica Geosystems Sprinter50 (METRIC or DECIMAL FEET display/measurements) Electronic Level, 2.0mm accuracy, w/user manual and case has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!

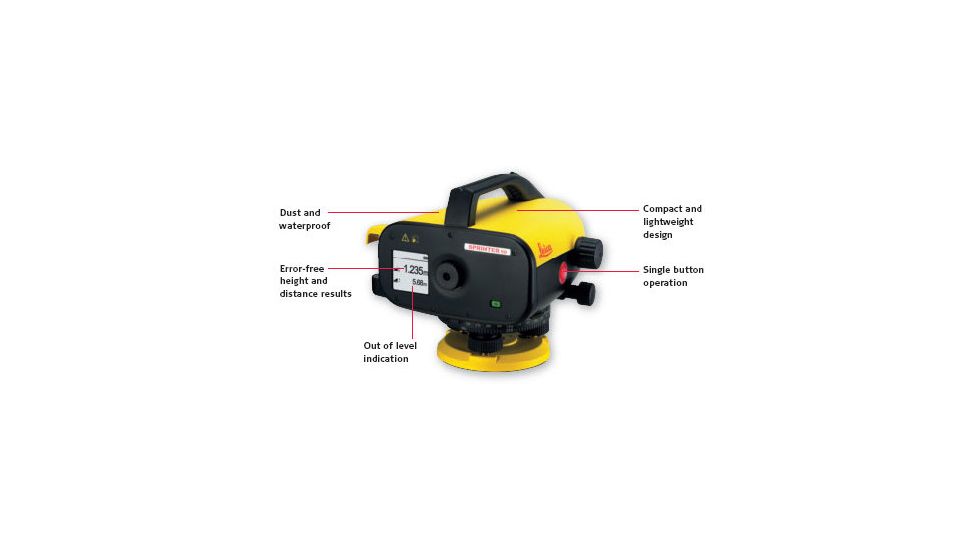

Leica Geosystems 2.0mm accuracy Sprinter 50 Electronic Level is an accurate electronic level, that provides error-free measurements and readings. One-button digital leveling - Quick to learn and operate. This Leica Geosystems instrument from Sprinter Family automatically determines height and distance. Aim and focus, measure with one key press and the data is displayed almost instantly. Surveying Equipment by Leica Geosystems is easier to use than a conventional level.
The Leica Geosystems Sprinter 50 is the perfect leveling tool for your daily levelling tasks. Just aim, focus and measure by pressing one button, the data is displayed almost instantly. There will be no more misreading. Error reducing functions, such as the tilt sensor prevent the system from measuring if the user operates outside the compensator range. You always measure and read error-free! Any levelling - at any place - for anyone Use the Leica Sprinter 50 Electronic Level as a multifunctional levelling tool: elevation control, height control, platform/concrete casting stakeout, rectangular area stakeout, distance measuring, as-built elevation checking, grade checking, area leveling, volume determination of earth/dirt moving operations.

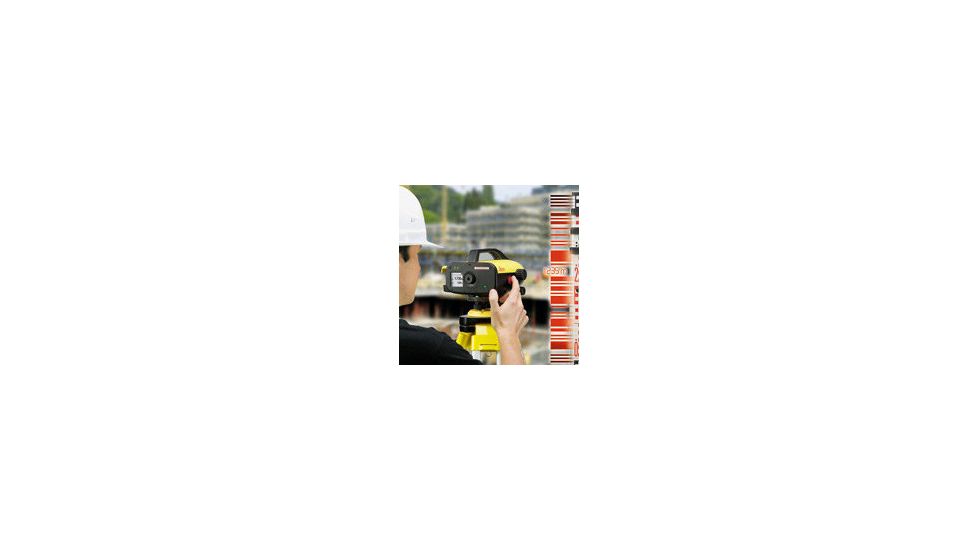

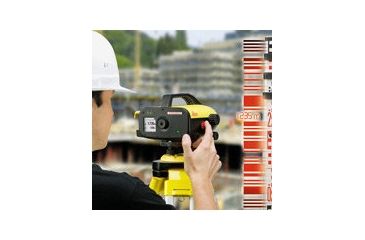

With its high-accuracy optical elements you simply aim and focus the staff as an optical level. With its easy one-button operation, Leica Sprinter does not need any intensive training. Simply push the red button to take the measurement. That's all you need to do. Optical reading is no longer needed. The bar code on the staff determines height and distance which is displayed on a highly visible LCD display. There will be no misreading.
Height accuracies: | Standard deviation height measurement per 1 km double run (ISO 17123-2) |
Electronic measurement: | 2.0 mm |
Optical measurement: | With standard aluminum E-scale/Numeral staff |
Single staff reading: | Standard Deviation 0.6 mm (electronic) and 1.2 mm (optical) at 30m |
Distance accuracies: | Standard deviation distance measurement 10 mm for D 10 m and (Distance in m x 0.001) for D > 10 m |
Range: | 2 - 100 m (electronic) |
Time for single measurement: | <3 sec |
Compensator: | Magnet damped pendulum compensator (range +/- 10min) |
Telescope: | Magnification (optical) 24x |
Environmental conditions: | IP55 |
Power supply: | AA dry cells (4 x LR6/AA/AM3 1.5 V) |
Weight: | <2.5 kg |
Accuracy per km double-run: | 2.0 mm |
Height and distance: | yes |
