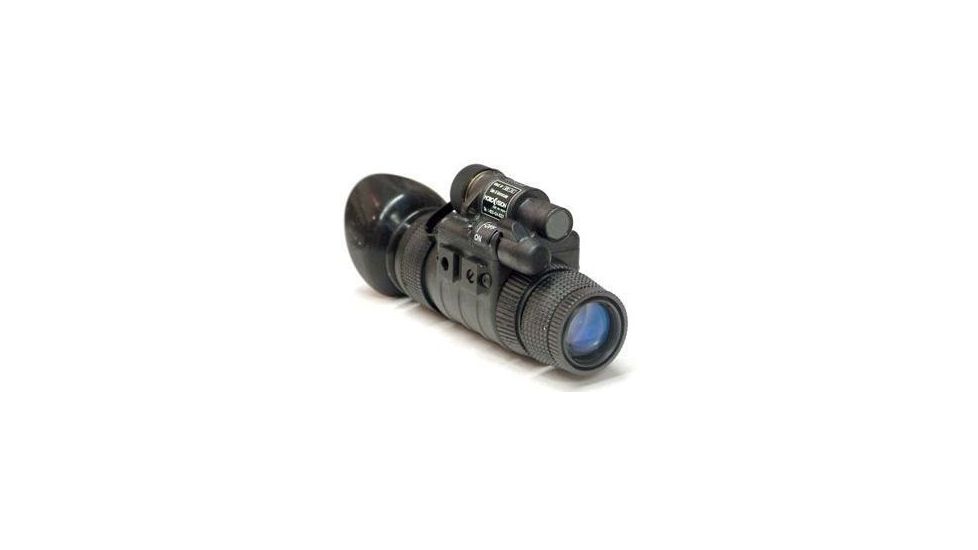

Morovision MV-14P Night Vision Mini-Monocular Gen 3 PINNACLE MVP-MV14P Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision MV-14P Night Vision Mini-Monocular Gen 3 PINNACLE MVP-MV14P is not listed by RangeFinders.
Product Info for Morovision MV-14P Night Vision Mini-Monocular Gen 3 PINNACLE MVP-MV14P
Using a Morovision MV-14P Night Vision Mini-Monocular Gen 3 PINNACLE MVP-MV14P with thin-filmed and auto-gated ITT image tube, the U.S. Military battle-proven Morovision MV14P PINNACLE mini-monocular provides exceptional quality image resolution under varying light conditions. The innovative mil-spec housing is extremely lightweight, weighing only 9.2 oz and can be submerged to depths up to 66 feet. The MV-14P from Morovision operates using either one or one and includes a built in IR Illuminator ( infra red )for increased image clarity in low light situations. Standard accessories including a head mount assembly and a weapons mount make the versatile MV-14P required gear for all public safety and military applications. For more variety of Moro Vision Night Vision and ITT Night Vision models please visit our page
Specifications for Morovision MV-14P Night Vision Mini-Monocular Gen 3 PINNACLE MVP-MV14P:
| Generation:Â | Â 3 U.S. (ITT PINNACLE) | |
| Resolution:Â | Â 64 lp/mm (Min) | |
| Gate:Â | Â Auto-Gated | |
| Film:Â | Â Thin-Filmed | |
| Magnification:Â | Â 1x (3x or 5x optional) | |
| Field of View:Â | Â 40 degrees | |
| Objective Lens:Â | Â 25mm f/1.2 | |
| Eyepiece Lens:Â | Â EFL 26 mm | |
| Diopter Adjustment:Â | Â +6 to -4 | |
| Range of Focus:Â | Â 10" to infinity / 25 cm to infinity | |
| Detection Range:Â | Â 975' / 300 meters | |
| Recognition Range:Â | Â 775' / 250 meters | |
| Battery Type:Â | Â One (1) 3V Lithium (CR123) | |
| Battery Life:Â | Â 40 hrs at room temp. | |
| Weight:Â | Â 9.2 oz (260 grams) | |
| Dimensions:Â | Â 4.2 (L) x 2 (W) x 2.5 (H) | |
| Operating Temperature:Â | Â -40C to +50C | |
| Storage Temperature:Â | Â -51C to +85C | |
| Camera Adaptable:Â | Â Yes | |
| Weather Resistant:Â | Â Yes - Submersible to 66 feet | |
| IR Illuminator:Â | Â Yes (built in) | |
Features of Morovision MV14P Night Vision Mini-Monocular:
- ITT PINNACLE Image Intensifier Tube - Thin-Filmed/Auto-Gated
- High resolution 64 lp/mm (Min), high gain, and high photoresponse
- Multifunctional, Hand-held, head-mounted or helmet-mounted as single eye goggle, or weapons-mounted as night scope
- Uses one AA or one 3V lithium battery
- Automatic high-light cutoff
- Submersible up to 66 feet
- Comprehensive two-year warranty
Package Contents:
- Morovision MVPMV14P PINNACLE Night Vision Mini-Monocular
