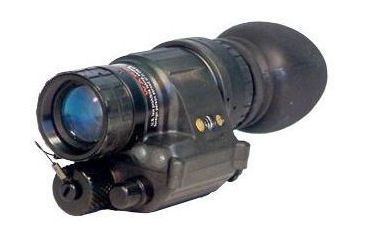

Morovision Night Vision F6015EGA (PVS-14) Monocular Gen 3 PINNACLE MVP-276958-1 Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision Night Vision F6015EGA (PVS-14) Monocular Gen 3 PINNACLE MVP-276958-1 is not listed by RangeFinders.
Product Info for Morovision Night Vision F6015EGA (PVS-14) Monocular Gen 3 PINNACLE MVP-276958-1
Introducing Morovision Night Vision F6015EGA Monocular Gen 3 PINNACLE MVP-276958-1 with Morovision 's most advanced single intensifier tube system. The versatile Generation 3 F6015EGA ( PVS-14 ) features manual gain control which allows the user to increase or decrease image tube brightness for greater viewing contrast in varying light conditions and uses a single ,. The Morovision MVP-276958-1 uses a Pinnacle image tube ( Auto-Gated ) image tube in a compact, high-performance, mil-spec housing designed for multiple applications. This Morovision Night Vision Device can be handheld, head-mounted, weapons mounted or adapted to a camera or camcorder. For more variety of Moro Vision Night Vision and ITT Night Vision models please visit our page
Specifications for Morovision Night Vision Monocular Gen 3 PINNACLE MVP276958-1:
| Generation:Â | Â 3 U.S. (ITT PINNACLE) | |
| Resolution:Â | Â 64-72 lp/mm (Typ) | |
| Film:Â | Â Thin-Film | |
| Gate:Â | Â Auto-Gated | |
| Brightness Gain:Â | Â Adjustable from 25 to more than 3000 fL/fL | |
| Magnification:Â | Â 1x | |
| Field of View:Â | Â 40 degrees | |
| Objective Lens:Â | Â f/1.2 | |
| Eyepiece Lens:Â | Â EFL 26 mm | |
| Diopter Adjustment:Â | Â +4 to -6 | |
| Range of Focus:Â | Â 25cm to infinity | |
| Voltage Required:Â | Â 1.5 Volts | |
| Battery Type:Â | Â One (1) AA size | |
| Battery Life:Â | Â Approx. 50 hrs at room temp | |
| Weight:Â | Â 12.4 oz (351.53 grams) | |
| Dimensions:Â | Â 4.5" (L) x 2" (W) x 2.25" (H) | |
| Operating Temperature:Â | Â -51C to +49C | |
| Storage Temperature:Â | Â -51C to +49C | |
| System Parts Warranty:Â | Â One (1) year | |
| Intensifier Tube Warranty:Â | Â One (1) year | |
Features of Morovision MVP-276958-1 NV F6015 EGA Monocular Generation 3:
- ITT PINNACLE Image Intensifier Tube - Thin-Filmed/Auto-Gated
- High resolution 64-72 lp/mm (Typ), high gain, and high photoresponse
- Variable Gain Control for enhanced performance in altering light conditions
- Multifunctional: Hand-held or head-mounted as single eye monocular
- Camera and video adaptable
Package Contents:
- Morovision Night Vision F6015EGA (PVS-14) Monocular Gen 3 PINNACLE MVP-276958-1
- Helmet Mount Assembly - PASGT Helmet type.
- Helmet/Head Mount Adapter
- Small Arms Weapons Mount
- Eye Cup - Prevents the emission of stray light or facial reflections.
- System Soft Carrying Case - Provides convenient storage of the F6015EGA
- Shoulder Strap - Attaches to the F6015EGA carrying case for easy portability.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Day Light Filter - Filters excessive light. Protects objective lens
- Demist Shield - Protects diopter lens from the elements.
- Sacrificial Window - Protects the front optic from the elements.
- Operator's Manual - Instructional users guide.
- Batteries - Two (2) AA. (includes one (1) spare)
