Morovision Pinnacle MV-321G Night Vision Dual Tube Goggle Gen 3 Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision Pinnacle MV-321G Night Vision Dual Tube Goggle Gen 3 is not listed by RangeFinders.

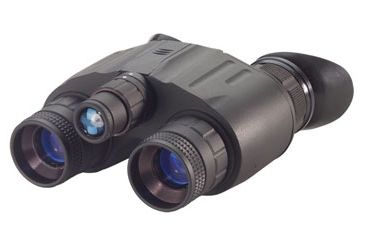

Product Info for Morovision Pinnacle MV-321G Night Vision Dual Tube Goggle Gen 3
Morovision Pinnacle MV-321G Night Vision Goggle Generation 3 features the latest rugged military design with specialized multicoated optics. The light weight Morovision MV-321G Goggles feature 1x magnification, automatic brightness control (ABC), a built in IR illuminator ( infra-red ), bright light protection, and includes headgear mounting. Its unique dual tube / dual eye goggle configuration is the only that offers a true stereoscopic night vision image. The innovative wide exit pupil design eliminates the need for interpupillary adjustment and reduces the size and weight of the unit. Add the optional 3x commercial lens for greater performance! For more variety of Moro Vision Night Vision and ITT Night Vision models please visit our page
Available models of Morovision Night Vision Monoculars
- Morovision MV-321G Dual Tube Gen 3 MVPA-MV-321G-A NV Goggles
- Morovision MV-321G Dual Tube Gen 3 PINNACLE MVPA-MV-321G-P NV Goggles
Specifications for Morovision Pinnacle MV 321G Night Vision Pinnacle Goggle Gen. 3:
| Generation:Â | Â 3 U.S. (MVPA-MV-321G-P - ITT PINNACLE) | |
| Resolution:Â | Â 64 lp/mm (Min) | |
| Gate:Â | Â Auto-Gated (MVPA-MV-321G-P) | |
| Film:Â | Â Thin-Filmed (MVPA-MV-321G-P) | |
| Magnification:Â | Â 1x | |
| Field of View:Â | Â 40degrees | |
| Objective Lens:Â | Â f/1.2 | |
| Diopter Adjustment:Â | Â +4 to -4 | |
| Range of Focus:Â | Â 10" to infinity/25cm to infinity | |
| Detection Range:Â | Â 1066' or 325 meters | |
| Recognition Range:Â | Â 902' or 275 meters | |
| Battery Type:Â | Â One (1) 3V Lithium (CR123) | |
| Battery Life:Â | Â 30 hrs @ room temp. | |
| Weight w/batteries:Â | Â 20 oz / 567 grams | |
| Dimensions:Â | Â 4.5"(L) x 4.5"(W) x 2.5"(H) | |
| Operating Temperature:Â | Â -20C to +45C | |
| Weather Resistant:Â | Â Yes | |
| IR Illuminator:Â | Â Yes (built in) | |
Features of Morovision Night Vision Dual Tube Goggle MV321G - P:
- ITT PINNACLE Image Intensifier Tube - Thin-Filmed/Auto-Gated in MVPA-MV-321G-P
- High resolution 64 lp/mm (Min), high gain, and high photoresponse
- Automatic Brightness Control (ABC) automatically adjusts brightness
- Multifunctional: Hand-held, head-mounted, helmet-mounted, or tripod mounted
- Automatic high-light cutoff
- Comprehensive two-year warranty
Package Contents:
- Morovision Pinnacle MV-321G NightVision Dual-Tube Goggle Gen 3
- Foam Fitted Hard Case - Weather-proof protective case.
- Eye Cups - Prevents the emission of stray light or facial reflections.
- Soft Carrying Case - Provides convenient storage.
- Day Light Filter - Filters excessive light. Protects objective lens from the elements.
- Shoulder Strap - Attaches to the MV-321B-P carrying case for easy portability.
- Warranty Card - Proof of one-warranty on product.
- Operating Manual - Instructional users guide.
- Battery - One (1) 3-Volt Lithium Battery (CR123) - Provides up to 30 hours of operational time.
- Data Sheet - System Test Data Sheet.
