Morovision PVS-7 Delta Kit Goggle Gen 3 PINNACLE MVP-MVPVS7 Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision PVS-7 Delta Kit Goggle Gen 3 PINNACLE MVP-MVPVS7 is not listed by RangeFinders.
Product Info for Morovision PVS-7 Delta Kit Goggle Gen 3 PINNACLE MVP-MVPVS7
Morovision PVS-7 Delta Kit Goggle Gen 3 PINNACLE MVP-MVPVS7 is offered with the night vision goggle as supplied to the U.S. Military and its allies with an image intensifier tube by Morovision. The Morovision MVP-MVPVS7 is equipped with a factory new, high- performance, ITT Generation 3 Pinnacle image intensifier tube, this is designed for the most demanding of night time applications. Battle-proven technology includes Automatic Brightness Control which automatically adjusts the brightness of the image tube to achieve the highest quality image resolution under varying light conditions as well as protect the user and the system against inadvertent exposure to excessive white light. In addition, a built-in infra-red illuminator with momentary or continuous switching function allows the user to operate under zero light conditions. Lightweight and versatile, the Delta PVS-7 goggle kit by Morovision can be hand-held, head- mounted, and helmet-mounted. Standard Delta accessories and System Data Sheet included. For more variety of Moro Vision Night Vision and ITT Night Vision models please visit our page
Available models of Morovision Night Vision Goggles
- Morovision PVS-7 Delta Kit Goggle Gen 3 MVP-MVPVS7-3D
- Morovision PVS-7 Delta Kit Goggle Gen 3 PINNACLE MVP-MVPVS7-3DP
Specifications for Morovision PVS7 Delta Goggle Kit Generation 3 MVPMVPVS7:
| Generation:Â | Â 3 U.S. (ITT PINNACLE) | |
| Resolution:Â | Â 64 lp/mm (Min) | |
| Film:Â | Â Thin-Film | |
| Gate:Â | Â Auto-Gated | |
| Magnification:Â | Â 1x | |
| Field of View:Â | Â 40 degrees | |
| Objective Lens:Â | Â f/1.2 | |
| Eyepiece Lens:Â | Â EFL 26 mm | |
| Diopter Adjustment:Â | Â +2 to -6 | |
| Interpupillary Adjustment:Â | Â 55 to 71mm | |
| Range of Focus:Â | Â 20 cm to infinity | |
| Battery Type:Â | Â | |
| Battery Life:Â | Â 30 hrs @ room temp. | |
| Weight w/batteries:Â | Â 24 oz / 680 grams | |
| Dimensions:Â | Â 6 3/8"(L) x 6"(W) x 3"(H) | |
| Operating Temperature:Â | Â -51C to +52C | |
| Weather Resistant:Â | Â Yes | |
| IR Illuminator:Â | Â Yes (built in) | |
| Warranty:Â | Â Two (2) Years | |
Features of Morovision MVP MV PVS7 Delta Kit Goggle:
- ITT PINNACLE Image Intensifier Tube - Thin-Filmed/Auto-Gated
- High resolution 64 lp/mm (Min), high gain, and high photoresponse
- Multifunctional - Hand-held, head-mounted, helmet-mounted.
- Lightweight only 24 oz w/ batteries
- Equipped with momentary or continuous IR switch
- Automatic high-light cutoff
- Comprehensive two-year warranty

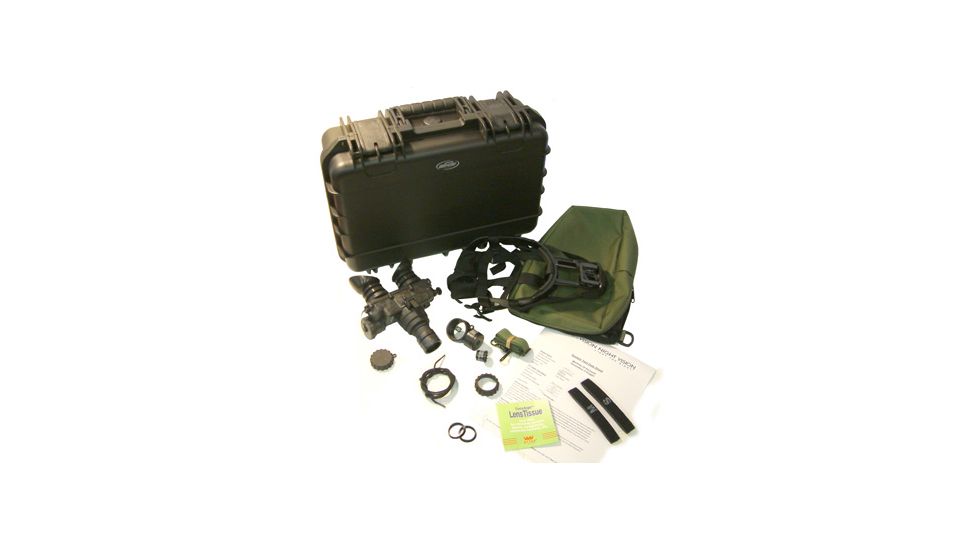

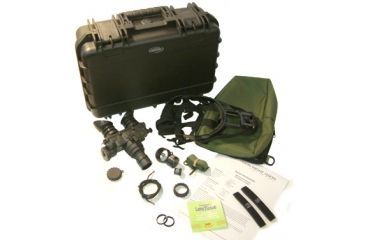

Package Contents:
- Morovision PVS-7 Delta Kit Night Vision Goggle Gen 3 PINNACLE
- Head Mount Assembly
- Medium & Thick Brow Pads
- Eye Cups
- Soft Carrying Case
- Shoulder Strap
- Sacrificial Window
- Demist Shields
- Batteries
