Morovision PVS-7 Goggle Gen 3 PINNACLE MVP-MVPVS7-3P Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision PVS-7 Goggle Gen 3 PINNACLE MVP-MVPVS7-3P is not listed by RangeFinders.

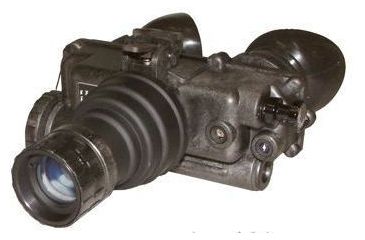

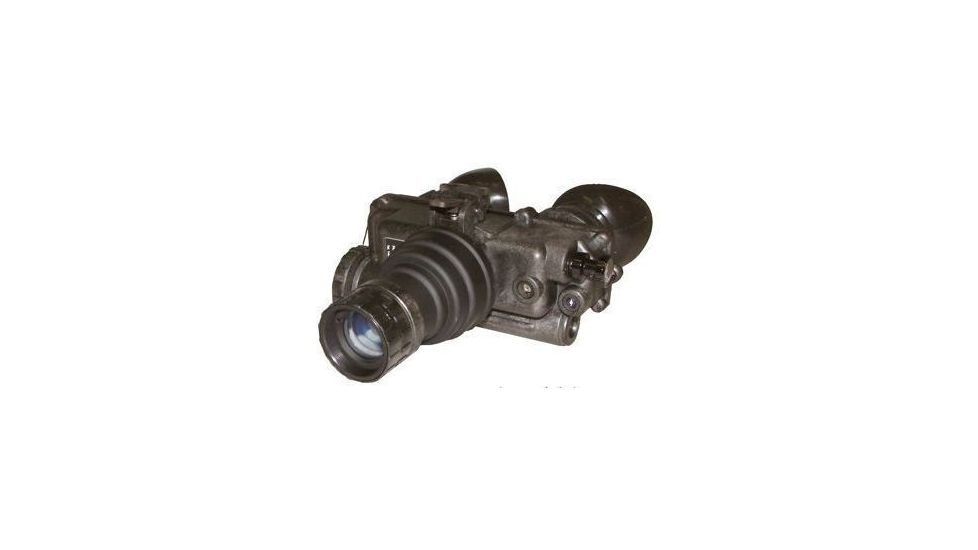

Product Info for Morovision PVS-7 Goggle Gen 3 PINNACLE MVP-MVPVS7-3P
Morovision PVS-7 Goggle Gen 3 PINNACLE is the standard issue night vision goggle type supplied to the U.S. Military and its allies. Morovision Night Vision Goggles equipped with a factory new, high-performance, ITT Generation 3 PINNACLE image intensifier tube. Morovision is the world's leading producer of night vision devices. The PVS-7 Gen 3 PINNACLE night vision goggle by Morovision is designed for the most demanding of night time applications. Battle-proven technology includes Automatic Brightness Control (ABC) which automatically adjusts the brightness of the image tube to achieve the highest quality image resolution under varying light conditions as well as a built-in infra-red illuminator which allows the user to operate under zero light conditions. Lightweight and versatile, the PVS-7 Gen 3 PINNACLE night vision goggle from Morovision can be hand-held, head-mounted, and helmet-mounted. Standard accessories of Morovision Nightvision Goggles and System Data Sheet included.
For more variety of MoroVision Night Vision and ITT Night Vision models please visit our page.
Specifications for Moro Vision PVS-7 Goggle Gen 3 PINNACLE:
| Generation:Â | Â 3 U.S. (ITT PINNACLE) | |
| Resolution:Â | Â 64 lp/mm (Min) | |
| Film:Â | Â Thin-Film | |
| Gate:Â | Â Auto-Gated | |
| Magnification:Â | Â 1x | |
| Field of View:Â | Â 40 degree | |
| Objective Lens:Â | Â f/1.2 | |
| Eyepiece Lens:Â | Â EFL 26 mm | |
| Diopter Adjustment:Â | Â +2 to -6 | |
| Interpupillary Adjustment:Â | Â 55 to 71mm | |
| Range of Focus:Â | Â 20 cm to infinity | |
| Battery Type:Â | Â Two (2) AA batteries | |
| Battery Life:Â | Â 30 hrs in room temp. | |
| Weight w/batteries:Â | Â 24 oz / 680 grams | |
| Dimensions:Â | Â 6 3/8"(L) x 6"(W) x 3"(H) | |
| Operating Temperature:Â | Â -51 C to +52 C | |
| Weather Resistant:Â | Â Yes | |
| IR Illuminator:Â | Â Yes (built in) | |
| Warranty:Â | Â Two (2) Years | |
Features of Morovision Goggle PVS-7 Gen 3 PINNACLE MVP-MVPVS7-3P:
- ITT PINNACLE® Image Intensifier Tube - Thin-Filmed/Auto-gated
- High resolution 64 lp/mm (Min), high gain, and high photoresponse in visible and near infrared
- Multifunctional: Hand-held, head-mounted, helmet-mounted, or tripod mounted
- Lightweight only 24 oz w/ batteries
- Equipped with momentary or continuous IR switch
- Automatic high-light cutoff
- Comprehensive two-year warranty
Package Contents:
- Morovision PVS-7 Goggle Gen 3 PINNACLE MVP-MVPVS7-3P
- Head Mount Assembly - Allows for hands free operation. Accommodates user's head size and eye positioning.
- Medium & Thick Brow Pads - Changeable pads.
- Eye Cups - Prevents the emission of stray light or facial reflections.
- Soft Carrying Case - Provides convenient storage.
- Day Light Filter - Filters excessive light. Protects objective lens from the elements.
- Shoulder Strap - Attaches to the PVS-7 carrying case for easy portability.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Sacrificial Window - Shields the optics from sand, air particles, or anything that may scratch the lens.
- Demist Shields - Snaps onto the eyepiece to prevent condensation from forming on the optics.
- Operator's Manual - Instructional users guide.
- Batteries - Two (2) AA.
- Data Sheet - System Test Data Sheet.
