Unfortunately Morovision PVS-7 SOCOM Night Vision Goggle Kit Gen 3 PINNACLE is not listed by RangeFinders.
Product Info for Morovision PVS-7 SOCOM Night Vision Goggle Kit Gen 3 PINNACLE
Morovision PVS-7 SOCOM Night Vision Goggle Kit Gen 3 PINNACLE is standard issue night vision goggle type supplied to the U.S. Military and its allies. This Morovision Night Vision Goggle equipped with a factory new, high-performance, ITT Generation 3 PINNACLE image intensifier tube. Those Morovision Night Vision Goggles are designed for the most demanding of night time applications. The night vision goggle from Morovision includes Automatic Brightness Control which automatically adjusts the brightness of the image tube to achieve the highest quality image resolution under varying light conditions as well as protect the user and the system against inadvertent exposure to excessive light. The PVS-7 SOCOM Kit by Morovision includes the following accessory items in addition to the standard accessory items: IR Spot/Flood Lens, Magnetic Compass, 3x Military Magnifier Lens, PASGT Helmet Mount Assembly, Guardian IR Mockingbird Marker (User Programmable) and a Hard Shipping and Storage Case. To the package of Morovision PVS-7 SOCOM Night Vision Goggle Kit included System Data Sheet.
Specifications for Morovision PVS-7 SOCOM PINNACLE Night Vision Goggle Kit Gen 3:
| Generation:Â | Â 3 U.S. (ITT PINNACLE) | |
| Resolution:Â | Â 64 lp/mm (Min) | |
| Film:Â | Â Thin-Film | |
| Gate:Â | Â Auto-Gated | |
| Magnification:Â | Â 1x | |
| Field of View:Â | Â 40 degree | |
| Objective Lens:Â | Â f/1.2 | |
| Eyepiece Lens:Â | Â EFL 26 mm | |
| Diopter Adjustment:Â | Â +2 to -6 | |
| Interpupillary Adjustment:Â | Â 55 to 71mm | |
| Range of Focus:Â | Â 20 cm to infinity | |
| Battery Type:Â | Â Two (2) AA batteries | |
| Battery Life:Â | Â 30 hrs at room temp. | |
| Weight w/batteries:Â | Â 24 oz / 680 grams | |
| Dimensions:Â | Â 6 3/8"(L) x 6"(W) x 3"(H) | |
| Operating Temperature:Â | Â -51 C to +52 C | |
| Weather Resistant:Â | Â Yes | |
| IR Illuminator:Â | Â Yes (built in) | |
| Warranty:Â | Â Two (2) Years | |
Features of Moro Vision PVS-7 SOCOM Night Vision Goggle Kit Gen III PINNACLE MVP-PVS7SCP1:
- ITT PINNACLE Image Intensifier Tube - Thin-Filmed/Auto-Gated
- High resolution 64 lp/mm (Min), high gain, and high photoresponse in visible and near infrared
- Multifunctional: Hand-held, head-mounted, helmet-mounted.
- Lightweight only 24 oz w/ batteries
- Equipped with momentary or continuous IR switch
- Automatic high-light cutoff
- Comprehensive two-year warranty

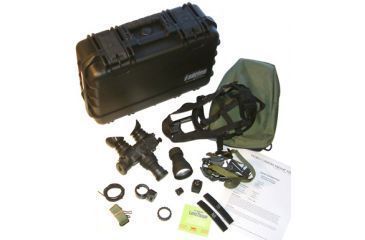

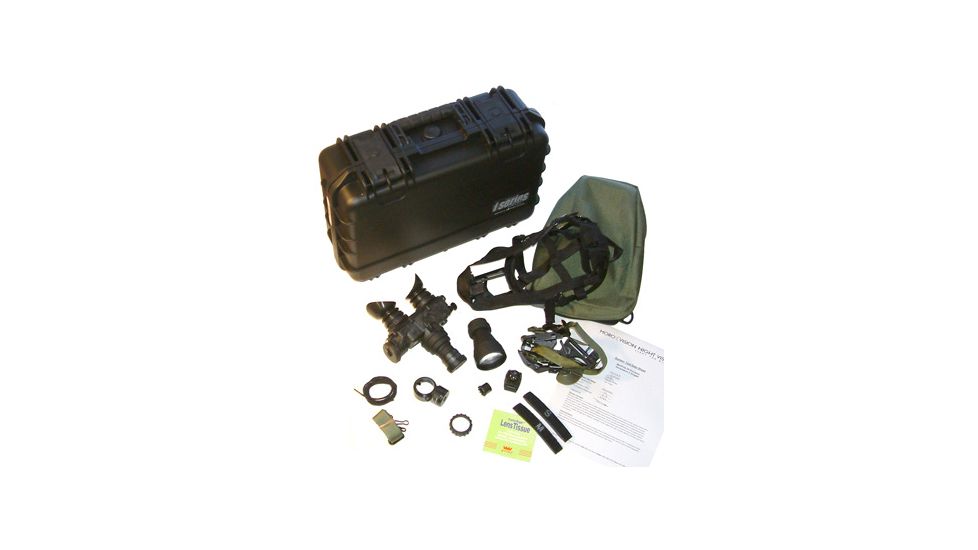

Package Contents:
- Morovision Night Vision Goggle Kit PVS-7 SOCOM Generation 3 PINNACLE MVP-PVS7SCP1
- Head Mount Assembly - Allows for hands free operation. Accommodates user's head size and eye positioning.
- Medium & Thick Brow Pads - Changeable pads.
- Eye Cups - Prevents the emission of stray light or facial reflections.
- Soft Carrying Case - Provides convenient storage.
- Shoulder Strap - Attaches to the PVS-7 carrying case for easy portability.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Sacrificial Window - Shields the optics from sand, air particles, or anything that may scratch the lens.
- Demist Shields - Snaps onto the eyepiece to prevent condensation from forming on the optics.
- Operator's Manual - Instructional users guide.
- Batteries - Two (2) AA.
- Data Sheet - System Test Data Sheet.
