Morovision SunStar 300 w/ RS-170 Video Output Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision SunStar 300 w/ RS-170 Video Output is not listed by RangeFinders.
Product Info for Morovision SunStar 300 w/ RS-170 Video Output

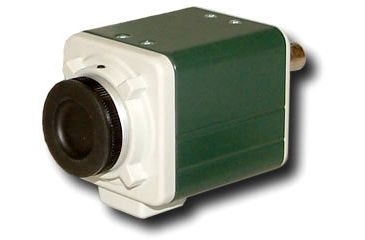

Morovision SunStar 300 w/ RS-170 Video Output delivers quality video imagery at light levels that starve traditional video cameras. As light levels decrease, the camera's unique intra-frame and inter-frame video signal processing features turn on all the way down to light levels as low as 0.00005 lux. Additionally, the cameras advanced 1/3 inch CCD sensor incorporates advanced micro-optics to boost overall quantum efficiency. The high resolution monochromatic camera is ideal for day/night security applications and features very high intra scene dynamic range that minimizes bright light source blooming.SunStar 300 is compatible with a wide selection of C-mount lenses.
Morovision is known for the highest quality in all of their Morovision Night Vision products. Be sure to check out the rest of Morovision products and other high performance product selection.
Specifications for Morovision SunStar 300 w/ RS-170 Video Output:
| Image Array Type:Â | Â Silicon CCD | |
| Sensitivity at 5% Modulation(f1.4 optic):Â | Â 0.00005 lux | |
| Pixel Size:Â | Â 6.35 x 7.40 um | |
| Imaging Size:Â | Â 6.00 x 4.96 mm | |
| Array Format:Â | Â 768 x 494 pixels | |
| Spectral Response:Â | Â 400 to 1060 nm | |
| Limiting Resolution:Â | Â 580 TV Lines | |
| Signal to Noise (with AGC off):Â | Â 52.dB | |
| Video:Â | Â RS-170 | |
| Dimensions with Connectors:Â | Â 50 mm (H) x 58 mm (W) x 67 mm (L) | |
| Weight:Â | Â 225 g without Lens | |
| Input Voltage:Â | Â 10 to 12.5 VDC (regulated) | |
| Input Power:Â | Â 6 Watts | |
| Lens Mount:Â | Â C & CS-Mount | |
| Auto-Iris Signals:Â | Â Video and DC | |
| Operating Temperature: |  -10° C to +40° C | |
| Storage Temperature: |  -20° C to +60° C | |
Features of Morovision SunStar 300 w/ RS-170 Video Output:
- Low-Light Sensitivity (0.00005 lux)
- Wide Dynamic Range
- Video image processing solution
- 1/3-inch CCD
- Compact Size
- Increase your CCTV performance up to 600 times
- Limited blooming when viewing bright light sources in the field of view
- Lower costs than intensified and thermal camera solutions
- Wide range of standard C-mount lenses to choose from
- Easy integration into standard housings
Package Contents:
- Morovision SunStar 300 w/ RS-170 Video Output
- Includes 12.5 VDC power supply.
