Morovision SunStar Low Light CCD Night Vision Security Camera 800 w/ RS-170 Output Multiple Options
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision SunStar Low Light CCD Night Vision Security Camera 800 w/ RS-170 Output is not listed by RangeFinders.
Product Info for Morovision SunStar Low Light CCD Night Vision Security Camera 800 w/ RS-170 Output

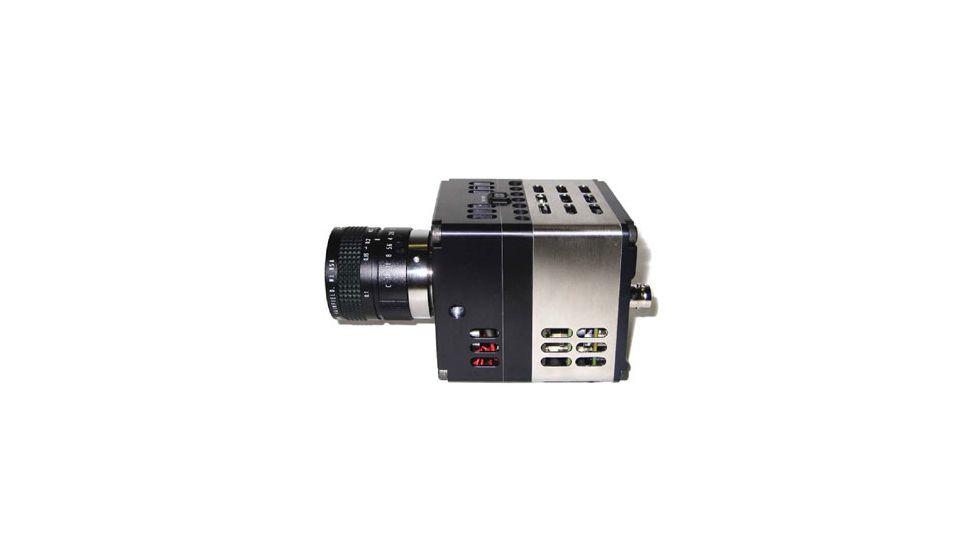

The Morovision Low Light CCD SunStar 800 Surveillance Camera MVP-SS800 is a very high sensitivity video camera that can be used for 24-hour surveillance. At the heart of this Security Camera from Morovision, is an EMCCD detector that gives outstanding performance from bright sunlight to overcast starlight and below. The digital architecture of the Morovision 800 Sun-Star Low Light CCD NV Camera provides enhanced performance at the lowest light levels and enables the user to confi gure the camera for optimum performance. This Morovision Digital Surveillance Camera operates from bright sunlight down to overcast starlight conditions at TV frame rates with fully automatic level control. Flexible and easy to use, the Moro-Vision Sunstar CCD Security Camera offers bright, crisp images in full daylight while its selectable temporal and spatial filtering options combined with the integral Peltier cooled EMCCD package, enables the user to attain optimal performance at the very lowest light levels.
Specifications for Morovision Low Light CCD SunStar Night Vision Camera:
| TV System: | EIA or CCIR |
| Sensor: | EMCCD (Electron Multiplier CCD), 2/3" frame transfer back illuminated |
| CCD Readout Noise: | <1e- |
| Fill Factor: | 100% |
| Anti-Blooming: | Standard |
| Spectral Sensitivity: | 300-1060 nm |
| CCD Effective Pixels: | 768(H) x 488(V) EIA / 768(H) x 576(V) CCIR |
| Pixel Size: | 11.5 x 27um EIA / 11.5 x 23um CCIR |
| Luminious Sensitivity: | 10 microlux scene (shadowed overcast starlight, f1.4 lens, 200ms integration) |
| Luminous Sensitivity: | 2500uA/lumen (2854K) |
| Limiting Resolution: | 576 TVL pph |
| Signal to Noise: | 15 dB (no fi ltering, 10^-4 lux scene illumination with f1.4 lens) |
| Resolution: | 200 TV lines pph (20 msec integration, no filter) |
| Camera Cooling: | Fan-assisted air or heatsink to base |
| Frame Transfer Shutter: | Optional liquid crystal shutter (tighter storage and operating temperature requirements) |
| Analog Output: | Composite video 1V p-p, 75 ohm EIA or CCIR |
| Digital Interface: | Camera link |
| Lens Control: | Auto-iris (HR10 / 6 connector) - T350 lens required for bright sunlight operation |
| Power: | 12V @ 800mA typical, 1.1A max |
| Storage Temperature Range: | -35°C to +75°C |
| Operating Temperature Range: | -35°C to +55° |
| Relative Humidity: | 95% non-condensing |
| Standard Operational Ceiling: | 30,000 ft |
| CCD Head: | 71 x 71 x 40 mm |
| Electronics Module: | 71 x 71 x 45 mm |
Features of MoroVision CCD 800 Low Light SunStar Security Camera:
- Back illuminated CCD
- Very high sensitivity, 24-hour camera
- 10 microlux scene illumination with f1.4 lens
- High resolution, high contrast, "eye friendly" image
- Smooth day/night transition and rapid overload response
- Undamaged by persistent bright lights or overload
- Airborne Surveillance
- Ground-based surveillance
- Underwater imaging (enhanced blue response)
- Driver view enhancement
- Commander's night sight
- Scientific imaging
Package Contents:
- Morovision Low Light CCD SunStar 800 Surveillance Camera MVP-SS800
