Morovision Thermal-Eye X200xp RCP-7070410-0001 Multiple Options
Tap Tap to Zoom
Product Not Available for Order Yet
Morovision Thermal-Eye X200xp RCP-7070410-0001 is not available yet, but it is coming to our store soon! If you are looking for something you can receive sooner, please consider the replacements selected by our product experts below
Product Info for Morovision Thermal-Eye X200xp RCP-7070410-0001

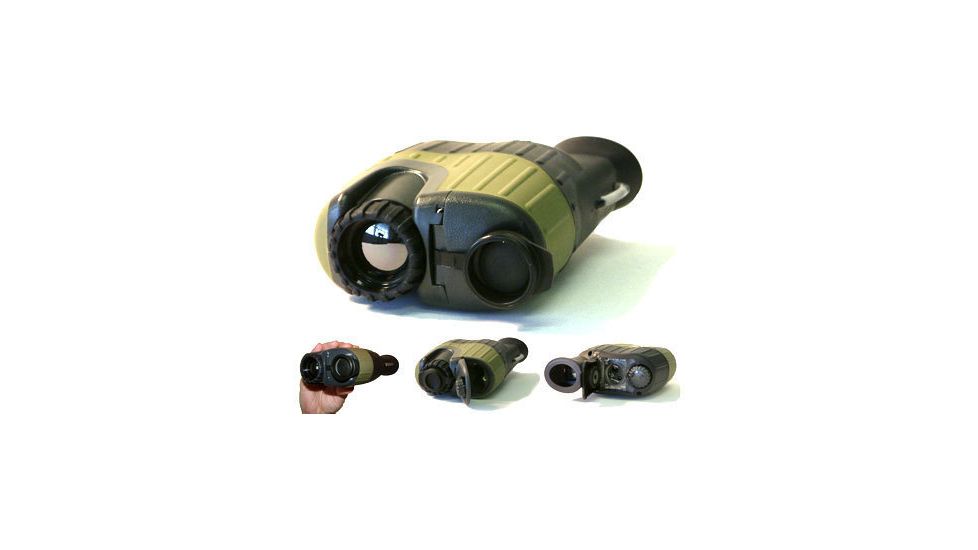

Morovision Thermal-Eye X200xp has advanced significantly beyond its X100xp predecessor, which has performed with accolades in both Afghanistan and Iraq. This new unit offers 50% greater stand-off-range than the previous generation's unit and can detect human activity at up to 450 meters/1,500 feet (about the length of four football fields). The X200xp also has improved image processing for best-in-class image quality. The Thermal Eye X200xp includes sophisticated image processing provides greater scene detail and improved clarity and sharpness. The advanced technology also offers improved vision in challenging field conditions like dust, smoke and complete darkness, all while preventing a blooming effect from nearby lights common in image intensification cameras. The 30-hertz, 30 um detector ensures not only a fast turn-on time, but also real-time video imaging.
Morovision is known for the highest quality in all of their Morovision Night Vision products. Be sure to check out the rest of Morovision products and other high performance product selection.
Specifications for Morovision Thermal-Eye X200xp:
| Focal Plane Array | Type & Material:Amorphous Silicon Microbolometer
Pixel Count (Resolution):160 x 120 Spectral Response: 7-14 um (filter bandwidth) Thermal Sensitivity: less than or equal to 50 mK |
| Thermal Imaging Performance | Startup Time: ~ 4 sec
Detection Range for Human Activity: Up to 1500ft (305m) Contrast/Brightness & Pixel Processing: Fully Automatic Susceptibility to Blinding Visible Light: None Infrared Polarity: White = Hot, Black = Cold |
| Optics | Field of View: 11°H x 8°V
Lens Focal Length: 25mm Minimum Focus Distance: ~ 3 ft. (1 meter) |
| Video | Output format: Analog: NTSC or PAL on rear outlet jack
Viewfinder Display: Monochrome LCD (320 x 240 pixels) Viewfinder Dimming: Integral to power on/off switch |
| Power | Power Source: Two (2) AA batteries
Operating Time: ~ 3 Hours with alkaline ~6 Hours with lithium Auxiliary Power: 9 to 12 VDC input on rear outlet jack |
| Environmental Characteristics | Operating Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: -4°F to 176°F (-20°C to 80°C) Water & Shock Resistance: Waterproof to 9ft (3m) submersion, buoyant in fresh water Shockproof to 6 ft (2m) drop - IEC level IPX6 EMC Compliance:FCC Part 15 & CE Mark |
| Physical Characteristics | Size: 5 1/4" L x 4 1/2" W x 2" H (13.4 x 11.4 x 5.1 cm)
Weight: 13 oz (381g), batteries installed Eye Cup: Integral to camera body with 2" eye relief |
Features of Morovision Thermal-Eye X200xp:
- Enhanced DSP image processing
- On-screen battery level indicator
- Left or right hand operation with slip resistant grip
- Tactile battery loading feature
- Sealed cover for enclosing video and power jacks
- Long eye relief viewfinder for use with glasses
- 1/4-20 tripod mount
Package Contents:
- Morovision Thermal-Eye X200xp
- Hard Protective Case
- 2 AA alkaline batteries
- Neck strap & wrist strap
- Lens cover
- Lens cleaning cloth
- Owner's Manual
