Laser Atlanta Advantage, Model R Distance Measuring Surveying Laser Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Laser Atlanta Advantage, Model R Distance Measuring Surveying Laser has been discontinued by Laser Atlanta and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Laser Atlanta Advantage, Model R Distance Measuring Surveying Laser
Laser Atlanta Advantage, Model R Distance Measuring Surveying Laser is an ultimate field rangefinder, offering great accuracy, along with additional components like Compass & Inclinometer, and Bluetooth Technology, if needed. This Advantage Model R Series from Laser Atlanta also features an extraordinary GE Lexan ABS compound lodging that's capable of withstanding the environment and its surroundings. Other features for Laser Tactical Advantage Model R Survey System include elastic guards and a secured Head Up Display pointing sight. Laser Tactical Surveying Equipment, the industry leader in top-quality rangefinders and rangefinder accessories.
Specifications for Laser Atlanta Advantage, Model R Distance Measuring Surveying Laser:
| Dimensions: | 4.5w x 7.5h x 8.4d in. |
| Weight: | 4.8 pounds with battery handle |
| Operating temperature: | -22F to 140F |
| Storage temperature: | -40F to 176F |
| Humidity: | 90% non-condensing |
| Environmental: | Water and dust resistant |
| Head-up display: | LED aiming sights and 1 line x 4 character readout |
| Rear panel display: | 4 line x 20 character LCD - backlit |
| Keyboard: | Membrane keypad |
| Data transfer: | RS-232 serial port / Optional memory port for SD & USB |
| Power source: | Rechargeable battery handles, Nickel Metal Hydride |
| Recharge time: | Standard 8 - 10 hours |
| Measurement time: | 0.33 seconds minimum |
| Range: | 2,000 ft. passive / 30,000 ft. to prism |
| Range accuracy: | +/- 6in. / 3 sigma |
| Resolution inclinometer: | 0.1 ft. |
| Inclinometer type: | Triaxial magnetometer |
| Inclinometer range: | +/- 50 degrees from level |
| Inclinometer accuracy: | +/- 0.4 degrees |
| Inclinometer resolution: | 0.1 degrees |
| Inclinometer repeatability: | +/- 0.3 degrees |
| Compass type: | Digital |
| Compass range: | 0.0 degrees to 359.9 degrees |
| Compass accuracy: | +/- 1 degrees RMS when level |
| Compass resolution: | 0.1 degrees |
| Compass repeatability: | +/- 0.3 degrees |

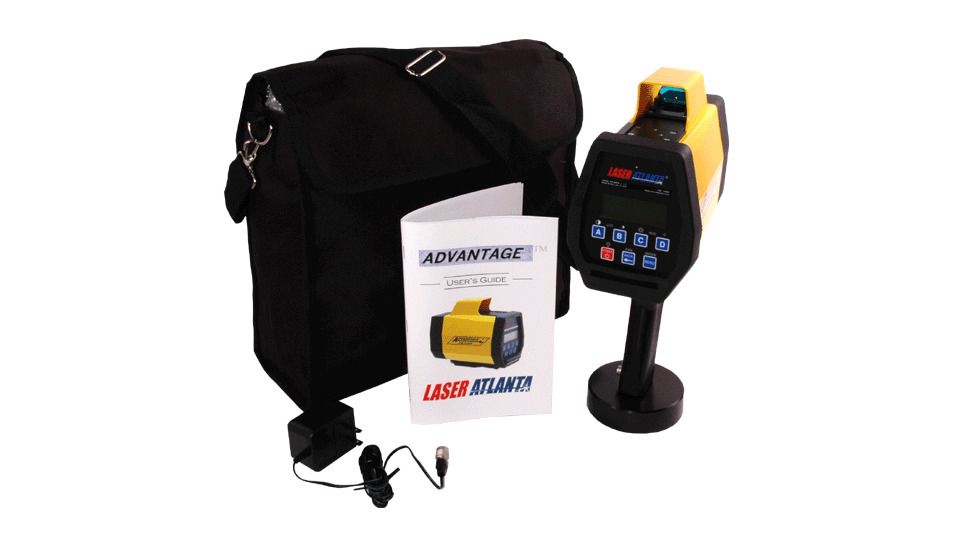

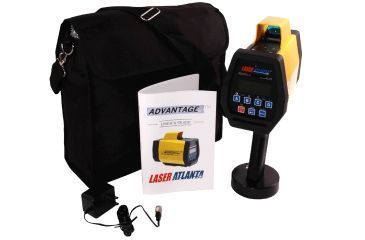

Package Contents:
- Laser Atlanta Advantage, Model R Distance Measuring Surveying Laser
