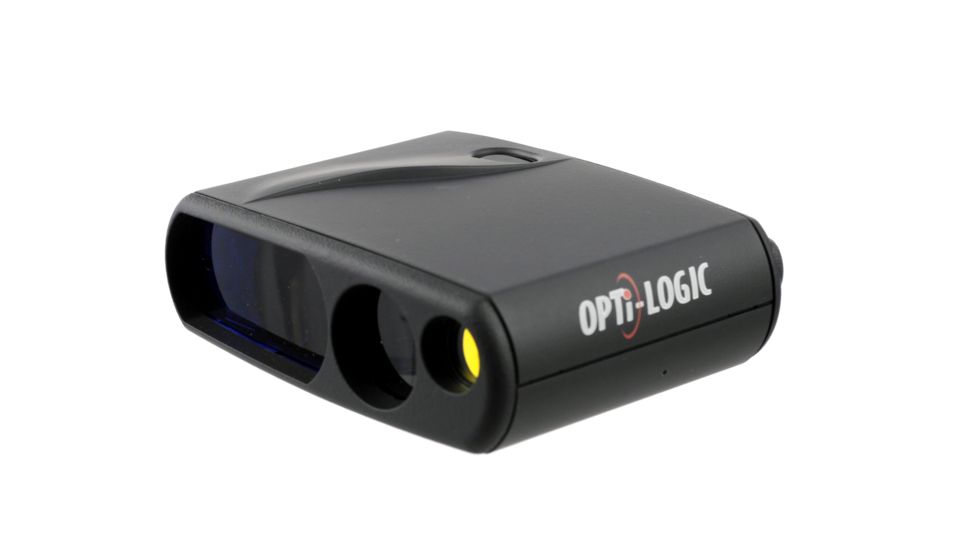

Opti-Logic 1000LH Laser Range Finder Hypsometer Multiple Options

Opti Logic Black 1000 LH Laser Rangefinder - Hypsometer height measurement system combines a pulsed laser rangefinder and a vertical angle sensor in a lightweight, easy-to-use package. The hand-held OptiLogic Laser Range-finder / Hypsometer 1000 LH is capable of measuring distances to noncooperative targets up to 1000 yards away, depending on target size and reflectivity. Incorporating an internal electronic tilt sensor, the Opti Logic 1000LH Rangefinder / Hypsometer makes vertical angle measurements with better than 1 degree resolution to remotely determine object heights. Applications of the OptiLogic 1000LH Laser Rangefinder / Hypsometer include tree height measurements, construction, utilities, architectural measurements, landscaping, real estate appraisal, and much more. The Opti-Logic 1000LH Laser Range Finder / Hypsometer is ideal for applications where surveying quality measurements are not required and higher instrument cost is not justifiable. Opti-Logic Laser Range-Finder / Hypsometer 1000LH is designed for years of trouble-free operation and is proudly made in specialized factories.

Specifications for Opti-Logic Laser Range Finder / Hypsometer 1000LH:

Operational Range of 1000LH:		4-1000 yd(Passive); Up to 1500 yd(Reflective)
Approx. Size:		1.7" x 4" x 5.1"
Weight:		11 oz
Range Accuracy:		+/- 1 yard (+/- 2 yards for very dark or very bright targets).
Height Accuracy:		+/- 18 inches (+/- 1 yards for very dark or very bright targets).
Range Resolution:		1 foot / 0.5 yard / 0.1 meter
Angle Resolution:		0.1 degrees.
Readout:		Easy to read external LCD display.
Units of Measure:		Selectable in either feet, meters, or yards.
Viewfinder:		Monocular viewing port. Red LED aiming sight, +/- 0.1 degrees
Battery:		Single 9 volt battery. Operates for approximately 1000 readings.
Operational Temp:		0° - 40°C, 32°-104°F. Relative Humidity 5-95% non-condensing.
Laser Type:		Infrared Class 1, eye safe 905nm Laser.

Features of Opti Logic Laser Range-Finder / Hypsometer 1000LH:

• Viewfinder: Look through the viewfinder window and aim the Red Dot at an object.f
• Range Button: Press the "Range" button to take distance or height measurements, or to select modes.
• Display: The Opti-Logic Rangefinder/Hypsometer is User Programmable to read in either Feet, Meters, or Yards.
• Low Battery: Replace the battery when the Low Battery symbol is displayed constantly.
• Automatic Rain Mode: For range accuracy in light rain conditions.
• Automatic Timeout: To save batteries, the instrument will automatically "time out" after about 7 seconds.

Package Contents:

• Opti-Logic Black 1000LH Laser Range Finder / Hypsometer
