Name: Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports
Brand: Opti-Logic
SKU: OL-RF-RS100
Availability: Discontinued

Product Info for Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports

The Opti Logic RS100 Industrial Rangefinder unit is laser range finder that outputs measured distance readings to an RS-232 compatible port. Range finder data then can be output from Opti-Logic RS 100 Industrial laser range-finder as either raw (relative) or calibrated (actual) distances. This information can then be used in several applications. OptiLogic RS-100 Industrial Laser Rangefinder is a great pre-made laser rangefinder to fit your needs and Opti Logic RS100 Industrial Rangefinder is also part of family of Opti-Logic Industrial laser range finders that are made to fit almost any project you will deal with.

Specifications for Opti-Logic RS100 Industrial Laser Range-Finder:


RS100 Range:		100 Yards (Minimum 4 Yards)

Communications:		ASCII Characters Protocol: RS232 - 8, N, 1 (no handshaking) Baud Rate:19200 Connections:Transmit, Receive, and Ground Wires

Data Raw Counts:		~200Hz

Data Calibrated Range:		~10Hz

Data Rate:		~200Hz raw counts for un-calibrated operation;~ 10Hz for calibrated operation

Calibrated Range Units:		Feet, Meters, Yards

Laser:		Class I (eye-safe), 905nm +/- 10nm

Power:		7-9VDC conditioned required, Current draw @ full power (~ 1.8W)

Laser Wavelength:		RS100 905nm +/- 10nm

Laser Divergence:		Vertical Axis -- 3.5mrad half-angle divergence; Horizontal Axis -- 1mrad half-angle divergence; (Approximate Beam "footprint" at 100m is 35cm x 5cm)

Accuracy:		+/- 1m on 1x1m2 diffuse target with 50% reflectivity

Resolution:		0.2m

Dimensions:		32x78x84mm

Weight:		< 8oz

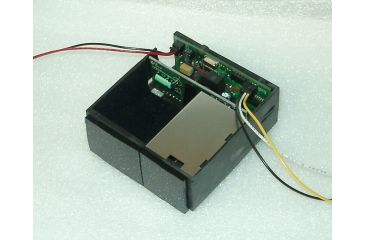

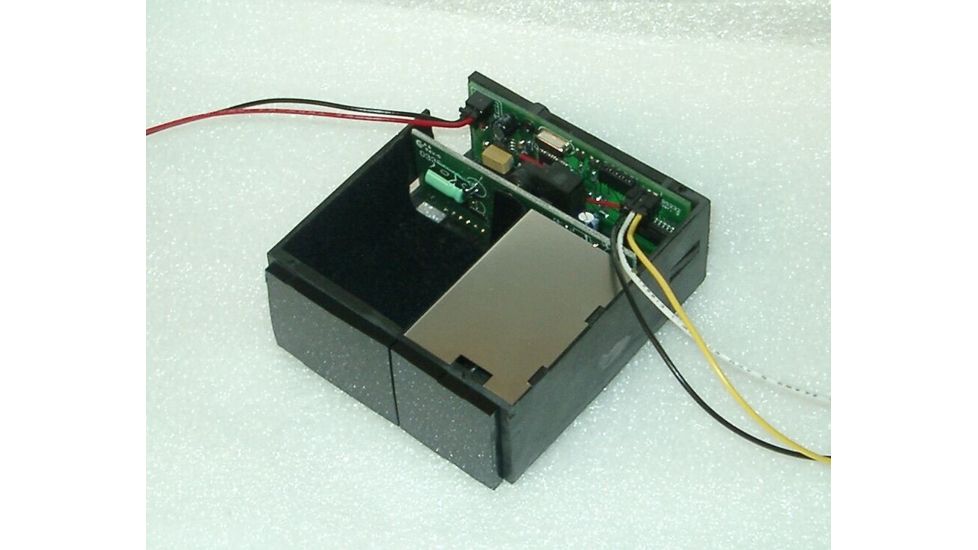

Case:		Supplied as OEM modules consisting of open chassis containing optics and circuit boards. Custom Housings can be designed and built on request.

Note:		Custom designs and modifications are available at additional cost, please contact manufacturer.
