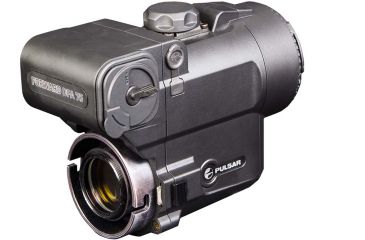

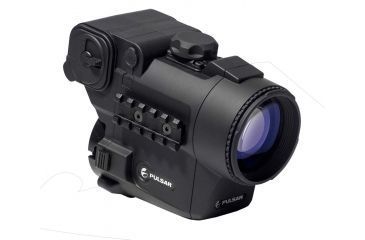

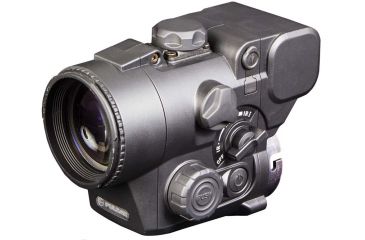

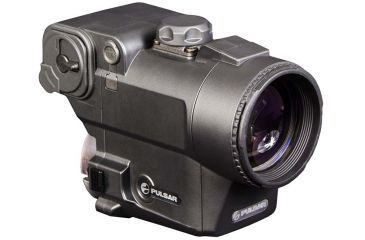

Pulsar DFA75 Night Vision Digital Forward Attachment Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Pulsar DFA75 Night Vision Digital Forward Attachment has been discontinued by Pulsar and is no longer available. Our product experts have helped us select these available replacements below.
Product Info for Pulsar DFA75 Night Vision Digital Forward Attachment
Convert your daytime Rifle Scope into a night vision Rifle Scope with the Pulsar DFA75 Night Vision Digital Forward Attachment. This night vision Rifle Scope from the experts at Pulsar can be quickly installed when required to the front of a daylight Rifle Scope. With an advanced Charge Couple Device (CCD) chip, the Pulsar DFA75 Weather-resistant NV Digital Forward Rifle Scope Attachment delivers highly vivid images in extremely challenging lighting conditions. Increase your chances of hitting your mark with the Pulsar DFA75 NV Digital Forward Attachment w/ Modular Laser IR attached to your Rifle Scope.
Specifications for Pulsar DFA75 Weather-resistant NV Digital Forward Rifle Scope Attachment:
| Magnification (of the digital module): | 1x |
| When used with 10x32 monocular (PL71011): | 10x |
| Lens diameter, mm: | 50 |
| Lens focus, mm: | 50 |
| Relative aperture: | 1 |
| Field of view: | 5° |
| Field of view, m@100m: | 8.7 |
| Minimum focusing distance, mm: | 5 |
| Exit pupil, mm: | 30 |
| Resolution, lines per mm: | ≥50 |
| Range of detection, with attachable laser illuminator, m: | 400 |
| Power supply, V: | 3.7/6 |
| Battery type/td>: | 4xAA |
| Battery life (with IR), hour: | 1.5 |
| Battery life (w/o IR), hour: | 2 |
| External Power Supply: | DC 8.4/15V/3W |
| Battery type wireless remote: | CR2032 |
| Body material: | glass-nylon composite |
| Operating temp: | .20 to +50 |
| Type of CCD array: | Sony ICX-255AL, .33" |
| Camera resolution, pixels: | 500x582 |
| Video Output signal: | CCIR / EIA |
| Dimensions: | ISSX 82x117mm |
| Weight (with/without batteries), oz: | 22.9/19.7 |
Features of Pulsar DFA75 NV Digital Forward Attachment w/ Modular Laser IR:

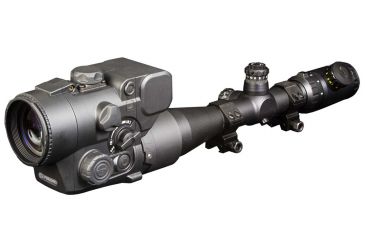

- Converts a daytime Rifle Scope into a night vision Rifle Scope
- Electronic windage/elevation adjustment
- Converts into 10x monocular (eyepiece accessory sold separately)
- Fine image quality and resolution
- Resistant to bright light exposure
- Modular laser IR illuminator with three-step power adjustment
- Built-in and external power supply
- Lightweight and durable composite housing
- Weather resistant
- Intuitive easy-to-use interface
- Wireless remote control
- Wide range of operating temperature
- Internal focusing
- Video output
Package Contents:
- Pulsar DFA75 Night Vision Digital Forward Attachment
