Leica DISTO Sprinter 50 Electronic Level Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica DISTO Sprinter 50 Electronic Level has been discontinued by Leica Disto and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Leica DISTO Sprinter 50 Electronic Level
Leica DISTO Sprinter 50 Electronic Level 764686 is a one-button digital levelling device that displays and measures in decimal feet. This quick to learn and operate piece of equipment from Leica Disto provides error-free measurements and readings. With the Sprinter50 Electronic Level, optical reading is no longer needed. Just aim, focus and measure by pressing one button, the data is displayed almost instantly. Eliminate misreading on any site with this Leica DISTO Surveying Equipment. Error reducing functions, such as the tilt sensor prevent the system from measuring if the user operates outside the compensator range. The bar code on the staff determines height and distance, which is displayed on a highly visible LCD display. Any levelling - at any place - for anyone! Use the Leica DISTO Sprinter 50 764686 as a multifunctional levelling tool in elevation control, height control, platform/concrete casting stakeout, rectangular area stakeout, distance measuring, as-built elevation checking, grade checking, area leveling, and volume determination of earth/dirt moving operations. Surveying Equipment such as the Sprinter 50 Electronic Level can be used in applications such as building and civil engineering, landscaping and architecture.
Specifications for Leica DISTO Sprinter 50 Electronic Level 764-686:
| Height accuracies: | Standard deviation height measurement per 1 km double run (ISO 17123-2) |
| Electronic measurement: | With Sprinter aluminum barcode staff: 2.0 mm |
| Optical measurement: | With standard aluminum E-scale/Numeral staff: 2.5 mm |
| Single staff reading: | Standard Deviation 0.6 mm (electronic) and 1.2 mm (optical) at 30m |
| Distance accuracies: | Standard deviation distance measurement 10 mm for D 10 m and (Distance in m x 0.001) for D > 10 m |
| Range: | 2 - 100 m (electronic) |
| Time for single measurement: | <3 sec |
| Compensator: | Magnet damped pendulum compensator (range +/- 10min) |
| Telescope: | Magnification (optical) 24x |
| Environmental conditions: | IP55 |
| Power supply: | AA dry cells (4 x LR6/AA/AM3 1.5 V) |
| Weight: | <2.5 kg |
| Accuracy per km double-run: | 2.0 mm |
| Height and distance: | Yes |

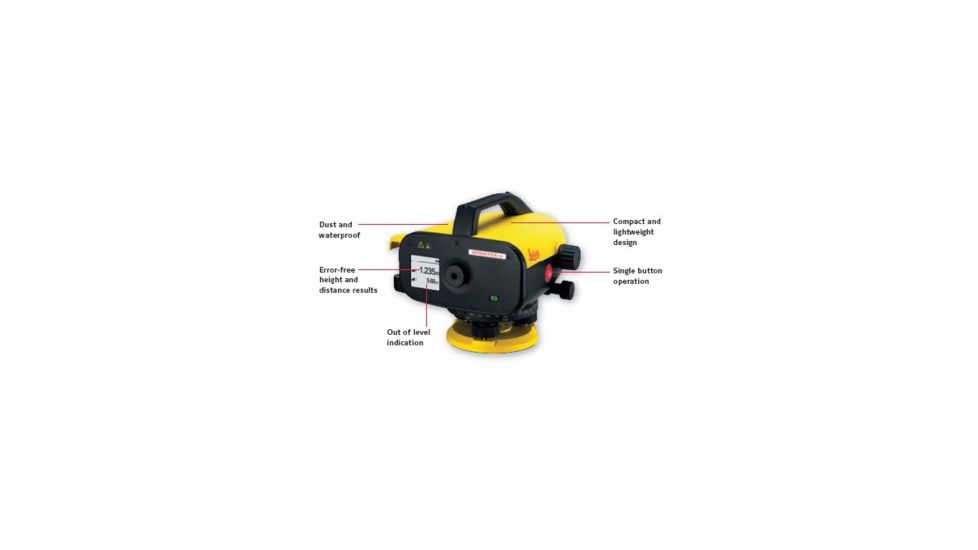

Features of Leica DISTO Sprinter 50 Electronic Level, 2.0mm accuracy:
- User-friendly menu
- Inverse staff reading
- The right leveling applications
- Minimize Human Errors
- Operate in Low Light Conditions
- Easy one-touch operation. Simply push the red button
- Quick height and distance result. The reading is displayed almost instantly
- Reliable and error-free reading, even in dim light conditions
- Quicker and easier than an optical level
Package Contents:
- Leica DISTO Sprinter 50 Electronic Level 764686
- User manual
- Case
