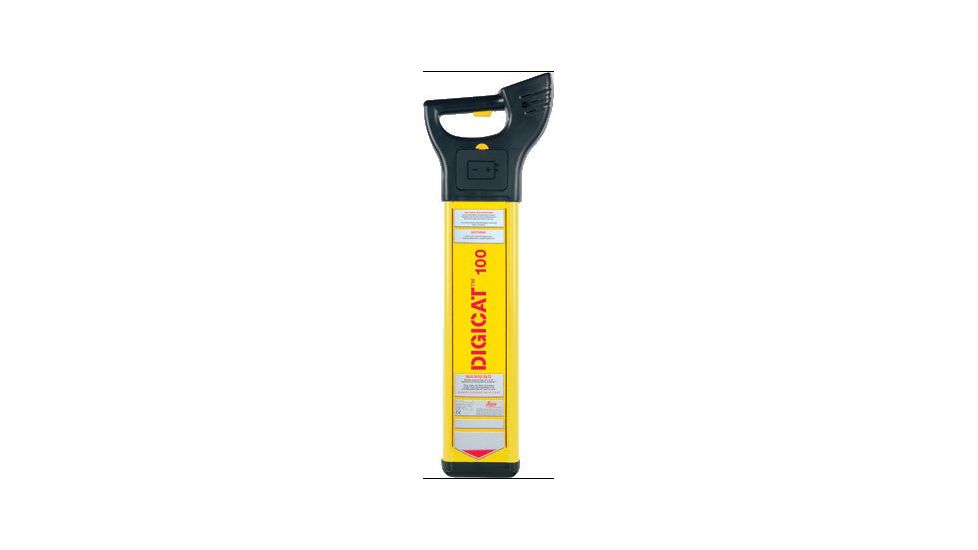

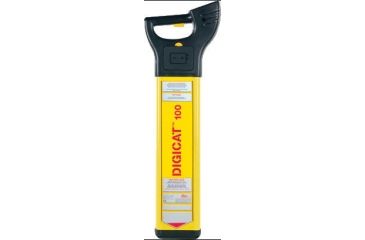

Leica Geosystems 731047 DIGICAT 100 Underground Service Locator Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica Geosystems 731047 DIGICAT 100 Underground Service Locator has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Leica Geosystems 731047 DIGICAT 100 Underground Service Locator
Leica Geosystems 731047 DIGICAT 100 Underground Service Locator on sale and available from our online store. OpticsPlanet, Inc is an Authorized US Distributor for Leica Geosystems Surveying Equipment.
Health and Safety authorities all over the world advise that before undertaking any kind of excavation operators should firstly scan an area with a Cable Avoidance Tool. Even with this advice, site workers are still injured and killed due to inadvertently striking buried cables. The Leica DIGISYSTEM product family works to eliminate these sorts of risks on your site by removing the possibility for human error from the locating process using the latest in location technology. By introducing an automatic pinpointing facility to accurately locate the cable, always starting up in power mode and at maximum sensitivity the Leica DIGI System Underground Utility Locators take away the need for awkward manual tuning, keeps you safer and locates faster.
The Leica 731047 DIGICAT 100 Buried Service Locator is designed to help avoid damage to underground services during excavation and is an easy to operate, fully automatic location system with the ability to manually tune if preferred. Active signal tracing is available by using the Leica Geosystems DIGITEX signal generator.
Specifications of Leica Geosystems 731047 DIGICAT 100 Underground Service Locator:
| Frequency:Â | Power mode 50/60 Hz, Radio mode 15-30 Hz
 Generator mode 8 and 33 KHz |
|
| Depth:Â | Â Power to 10ft 3m, Radio to 7ft 2m, Generator to 10ft 3m | |
| Protection:Â | Â Conforms to IP54 | |
| Batteries:Â | Â 6 x AA alkaline (IEC LR6) (supplied) | |
| Battery life:Â | Â 30 hours intermittent use | |
| Weight:Â | Â 2.83 kg 6.2 lb including batteries | |
Features of Leica Geosystems 731047 DIGICAT 100 Underground Service Locator:
- Always switches on in POWER mode for maximum safety. This ensures that you will locate services carrying a power current first as these can be the most dangerous to hit.
- Starts up with maximum sensitivity for safe operation, there is no need to adjust any awkward controls, this speeds up the location process considerably.
- Fully automatic pinpointing for quick and accurate location of the relevant service, without the need for any adjustment by the operator. The DIGICAT 100 Unit has got the facility to manually adjust at the pinpointing stage if that is what the operator is used to, however all adjustments are done automatically within the electronics, no fine-tuning necessary.
- In-built self-test function (user activated), which tests both the hardware and the software to ensure full functionality of the unit.
- Audio visual display with simple LED indicators for maximum convenience.
- Pictographic quick-guide instructions are displayed on the face of the locator to remove the lanGauge barrier and for easy on-site reference.
- Network Rail approved (PADS No: 094/020050) and CableTracks enabled units also available.
Package Contents:
- Leica Geosystems Leica DIGICAT 100 Undeground Service Locator 731047
- Leica Geosystems Batteries
- Leica Geosystems User Manual
