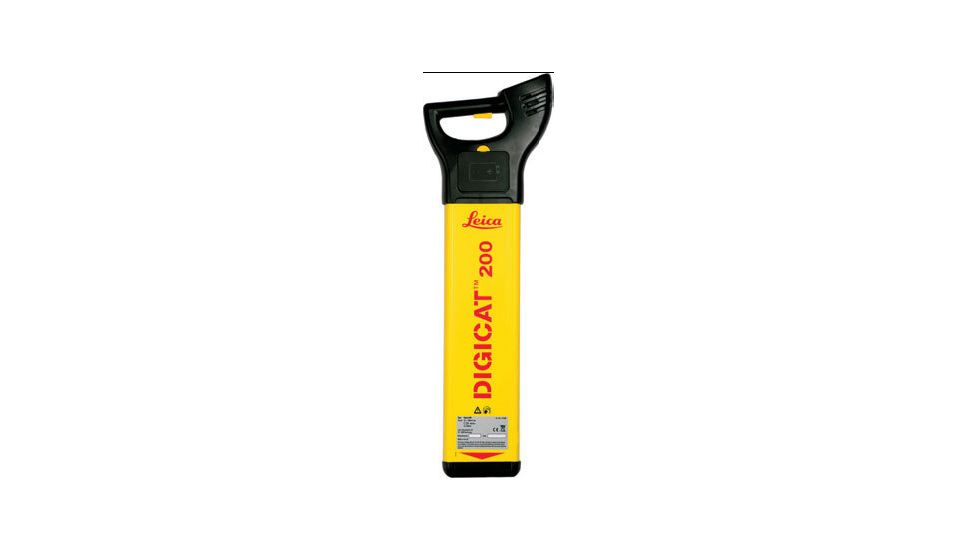

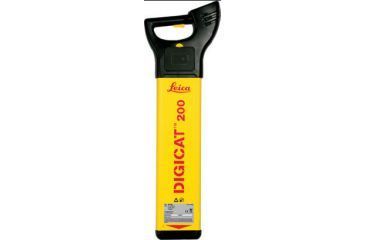

Leica Geosystems DIGICAT 200 Underground Service Locator with Depth Estimation Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica Geosystems DIGICAT 200 Underground Service Locator with Depth Estimation has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Leica Geosystems DIGICAT 200 Underground Service Locator with Depth Estimation
Leica Geosystems DigiCat 200 Underground Service Locator with Depth Estimation on sale and available from our online store. We are an Authorized US Distributor for Leica Geosystems Surveying Equipment. With the DigiSystem by Leica Geosystems, operators can locate, trace and mark underground services quickly, precisely and reliably prior to excavation. Health and Safety authorities all over the world advise that before undertaking any kind of excavation operators should firstly scan an area with a Cable Avoidance Tool. Even with this advice, site workers are still injured and killed due to inadvertently striking buried cables. The Leica Digi System product family works to eliminate these sorts of risks on your site by removing the possibility for human error from the locating process using the latest in location technology. By introducing an automatic pinpointing facility to accurately locate the cable, always starting up in power mode and at maximum sensitivity the Leica DigiSystem Underground Utility Locators take away the need for awkward manual tuning, keeps you safer and locates faster.In addition to the well proven functions of Leica Geosystems DigiCat200 Underground Service Loacator offers a one stop depth estimation. In co-operation with Leica Geosystems DigiTex 8/33 (operating in the 33kHz mode) the real depth and location of all services can be found. Available in two display formats, offering depth estimation to 3m or 10ft and an accuracy of approx. ± 10%. For more Surveying Equipment please visit our Surveying Equipment store section.
Specifications of Leica Geosystems DigiCat 200 Underground Service Locator:
| Frequency: | Power mode 50/60 Hz, Radio mode 15-30 Hz; Generator mode 8 and 33 KHz |
| Depth: | Power to 10ft/3m, Radio to 7ft/2m, Generator to 10ft/3m |
| Depth Estimation: | Depth estimation with DIGITEX (33KHz mode) or DIGIMOUSE to 10ft/3m within 10% accuracy (typical) |
| Protection: | Conforms to IP54 |
| Batteries: | 6xAA alkaline (IEC LR6) included |
| Battery Life: | 30 hours intermittent use |
| Weight: | 2.83 kg/6.2 lb including batteries |
Features of Leica Geo Systems DigiCat200 Service Locator:
- Always starts in power mode at maximum senstivity – ensures safest operating conditions
- 8 and 33 kHz tracing modes – maximum flexibility
- Compact and lightweight
- Highly visible digital LED display – swift service location
- One stop depth estimation in cooperation with DIGITEX or DIGIMOUSE
- Locates power signals radiated by energised cables
- Traces signals originating from distant radio transmitters
- Locates a distinctive signal applied by the DIGITEXTM 8/33 dual frequency signal generator to a metallic underground conductor
Package Contents:
- Leica GeoSystems Digi Cat 200 Buried Service Locator with Depth Estimation
- (6) AA Batteries
