Leica Geosystems LDT-05 Digital Theodolite Multiple Options
1 of 2 images

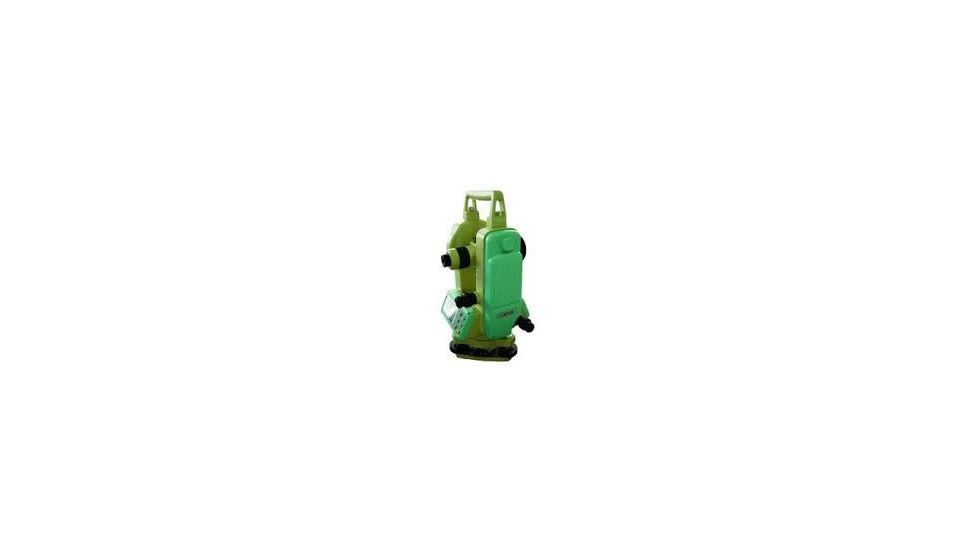

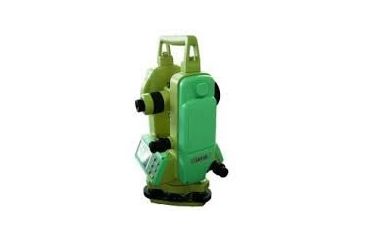

Leica Geosystems LDT-05 Digital Theodolite, blue/tan 6003830
2 of 2 images

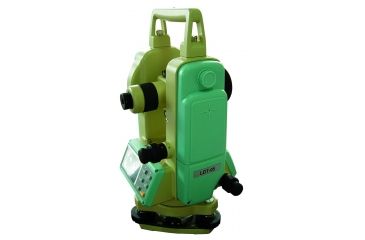

Leica Geosystems LDT-05 Digital Theodolite, blue/tan 6003830
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica Geosystems LDT-05 Digital Theodolite has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Leica Geosystems LDT-05 Digital Theodolite
The Leica LDT-05 Digital Electronic Theodolite has been created for improved performance in construction applications. Work faster with the advanced features of this Digital Theodolite from Leica Geosystems to improve productivity while increasing the bottom line.
Specifications for Leica Digital Electronic Theodolite - LDT05:
| Image: | Erect |
| Magnification: | 30x |
| Diameter of Objective Lens (Aperture): | 1.7 in (45 mm) |
| Focus Distance: | 4.43 ft (1.35 m) to infinity |
| Field of View: | 1 degree 30 minutes |
| Ratio of Stadia Lines: | 1/100 |
| Resolving Power: | 3 seconds |
| Reticule Illumination: | Yes, on/off button |
| Quick Sites (Rough Sites): | Yes |
| Minimum Reading: | 1 second, 5 second, or 10 second |
| Unit of Reading/Measure: | Degree / mil / gon / V% |
| Display: | Dual back-lit LCD |
| Accuracy: | 5 second |
| Measuring Method/Reading System: | Incremental photoelectricity |
| Detection Method: | Horizontal both sides, vertical single side |
| Plate/Tubular Bubble Vial: | 30 seconds/2 mm |
| Circular Bubble Vial: | 8 minutes/2 mm |
| Weight: | 10.14 lbs (4.6 kg) |
| Warranty: | 1 year |
| Dimensions: | 6.4 x 6.1 x 13.4 in. (164 x 154 x 340 mm) |
| Protection Class: | IP54 |
| Tripod Thread: | 5/8 x 11 |
| Auto Shut Off: | After 30 minutes |
| Tribrach: | Detachable |
| Power Source: | NiMH rechargeable, option for 4 AA alkaline batteries |
| Battery Life: | Alkaline - up to 36 hours |
| Battery Life Alert: | Visible alert |
| Voltage: | 4.8 |
Features of Leica Digital LDT05 Electronic Theodolite:
- 5-second precision readouts
- Reticle illuminator
- Laser plummet
- IP54 Environmental protection
- Back-lit LCD display panels
- 90-Degree Layout
- Checking Angles
- Alignment and Plumb
- Short-Range Leveling
- General Construction
- Anchor Bolt Positioning
- Steel Column Placement
- Setting Elevations
- Setting Lines
- Basic Grade Work
Package Contents:
- Leica LDT-05 5" Theodolite
- carry case
- laser plummet
- Auto vertical compensation
- Dual keyboard
- Rechargeable Alkaline battery with holder
- Charger
- Plumb bob, Tool kit and user manual
