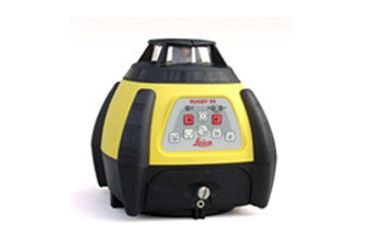

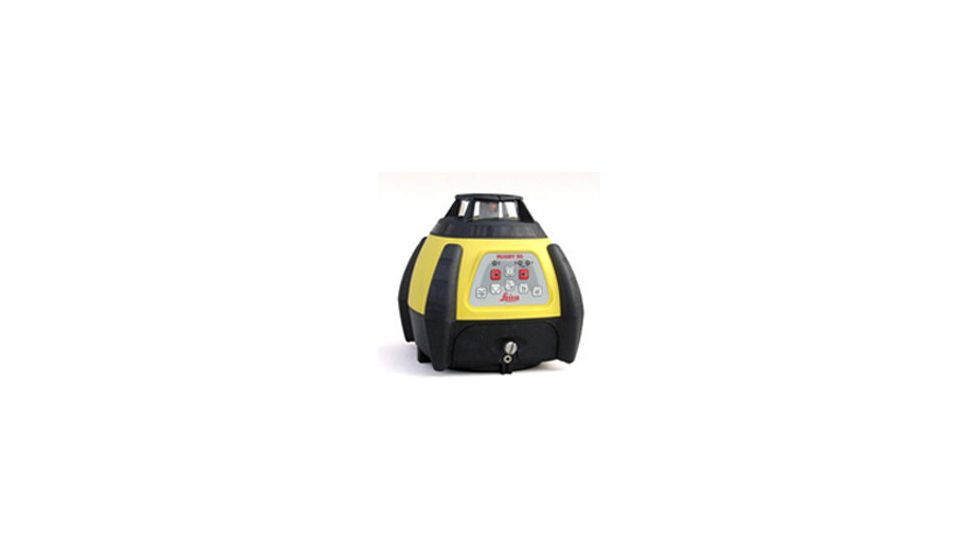

Leica Geosystems Rugby 55 class IIIa GC Package with Rod-Eye Basic Multiple Options

Leica Geosystems Rugby 55 GC IIIa Class Package with Rod-Eye Basic provides today's contractor with the tools needed for virtually any leveling or alignment job. The Leica Geosystems Surveying Equipment features an easy to use keypad, a watertight seal, variable head speeds, selectable scanning modes, a bright red beam and alkaline or rechargeable battery pack. With the Rugby 55 by Leica Geosystems mounted securely to the first piece of wall angle, set it to the desired height, adjust the ceiling grid using the laser beam on the target as the reference.

Set up your Leica Geosytems Rugby 55 GC 3a Surveying Equipment over a control point using the unique Beam Down feature, then align the rotating or scanning beam to your second control point using the buttons on the Surveying Equipment by Leica Geosystems or the remote control. The top plumb beam is always 90° to the main beam. Set up and align the Leica Rugby 55 to two control points, and the top plumb beam will provide an easy to use, 90 reference.

Adjustments to the Leica Geosystems Rugby 55 3A GC Laser are possible from virtually any direction using the full-function, infrared Remote Control.

Available Leica Rugby 55 GC IIIa Package with Rod-Eye Basic

• 6003490: Leica Geosystems Alkaline Rugby 55 (Class IIIa) GC Package with: Rod-Eye Basic
• 6003491: Leica Geosystems Rugby 55 GC Package (Class IIIa) with Rod-Eye Basic, Re-chargeable

Specifications of Leica Geosystems Rugby 55 Interior Construction Laser:

Operating Range (Rotating Beam):		300m (1000 ft) Diameter
Operating Range (Plumb Beam):		up to 60m (200 ft)
Self-leveling Accuracy:		±2.6mm at 30m (±3/32" at 100 ft)
Self-leveling Range:		±5°
Rotating Speeds:		0, 2, 5, 10 rps
Laser Diode (type):		635nm (bright red)
Dimensions (HWD):		158 x 163 x 166mm (6.2 x 6.4 x 6.5")
Weight with Batteries:		1.85 kg (4.0 lbs)
Battery Type:		Two D-cells or NiMH pack
Battery Life:		Alkaline
Operating Temperature:		-20 to +50° C (-4° F to +122° F)
Storage Temperature:		-40 to +70° C (-40° F to +158° F)
Dust / water (IEC60529):		IP55
IR Remote Control
IR Remote Range:		Up to 40m (130 ft)
IR Remote Battery:		Life Up to two years

Features of Leica Geosystems Rugby 55 IIIA GC Interior Construction Laser:

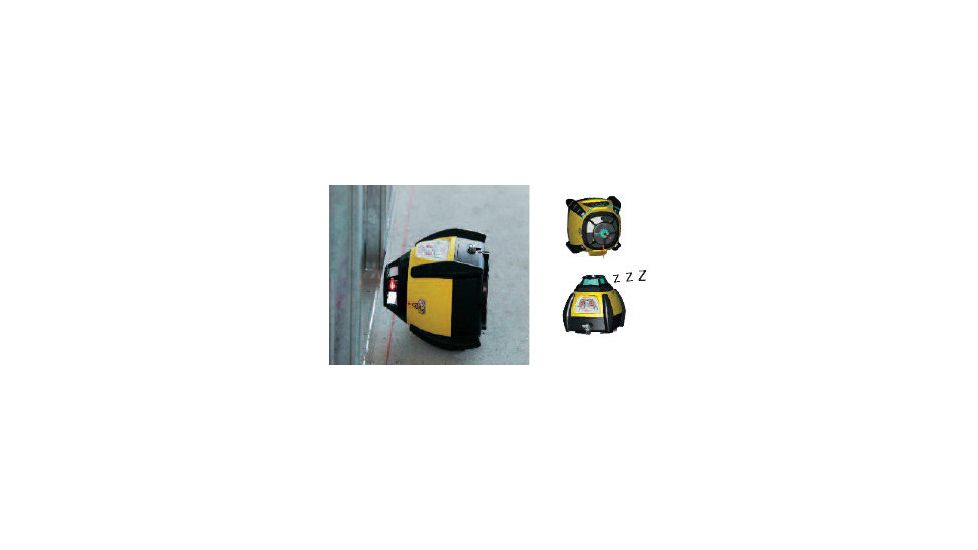

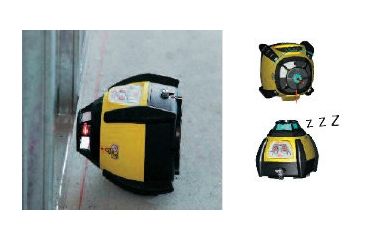

• Scan-90: With the Leica Rugby 55 the scanning or stationary beam can be quickly positioned in 90° increments... making layout easier by quickly moving the beam to the left of right side of the Leica Rugby 55.
• Beam Down Mode: By selecting zero rps with the head speed button, the rotating head automatically positions itself in a plumb down direction for alignment of the Leica Rugby 55 Laser over a reference point.
• Sleep Mode: Pressing the Up and Down buttons together on the remote will put the Leica Rugby Interior Laser into sleep mode for two hours to save battery life without disturbing your setup.

Applications:

• Ceiling grids - Floor layout - Raised access floors - Transferring points
• Setting window supports - cabinets - Interior walls - Tilt ups - Setting benchmarks
• Elevation control - Footings and foundations - Plumb - Manual slopes

Package Contents:

• Leica Geosystems Rugby 55 Class IIIA GC Package Interior Construction Laser and Rod-Eye Basic
• Leica Geosystems Rugby 55 (Class IIIa) GC with Standard Carrying case 755000
• Leica Geosystems Rod-Eye Plus with bracket 769810
• 752048 Alkaline Battery Holder (6003488 only)
• 8220674 Single D Cell Alkaline Battery (6003488 only)
• 752049 NiMH Battery Pack, Rugby 50/55 (6003489 only)
• 727165 NiMH Battery Charger for Rugby, 110V (6003489 only)
• 731440 US Cable for Universal Charger (6003489 only)
• 756717 Rugby 55 Laser User Manual - English
