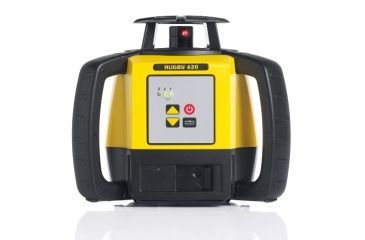

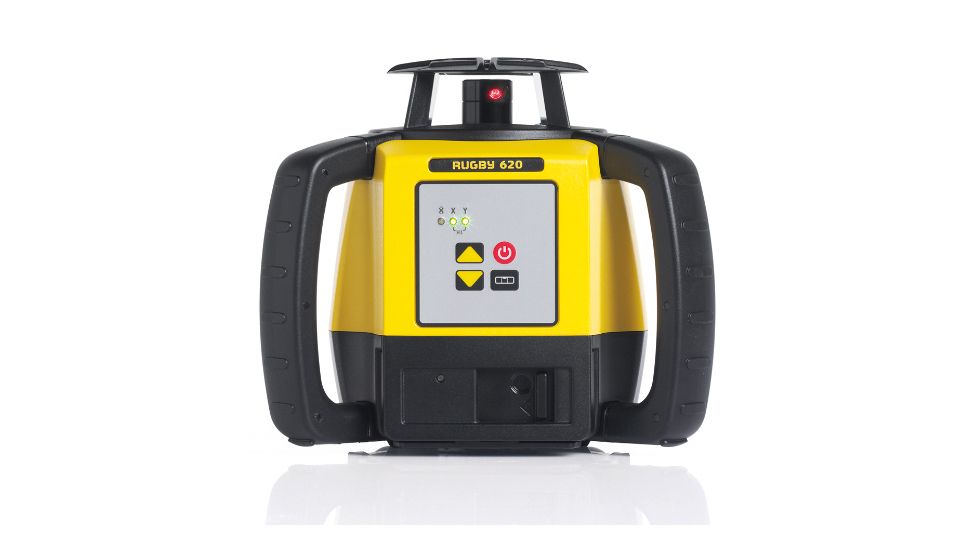

Leica Geosystems Rugby 620 Rotary Self Levelling Survey Laser Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica Geosystems Rugby 620 Rotary Self Levelling Survey Laser has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Leica Geosystems Rugby 620 Rotary Self Levelling Survey Laser
Make no mistakes with the simple and reliable Leica Geosystems Rugby 620 Rotary Surveying Laser. This Leica Geosystems Rugby 620 Rotary Self Levelling Survey Laser features concrete forming, pad placement and framework levelling and slope matching up to 8% in single axis. With Leica Geosystems Rugby 620 Rotating Surveying Lasers, setting foundations and footings has never been more efficient.
Specifications for Leica Geosystems Rugby 620 Rotating Surveying Lasers:
| Dimensions: | 212 x 239 x 192 mm |
| Weight: | 2.56 kg / 5.6 lbs |
| Functionality: | Self-levelling horizontal & manual slope in one axis |
| Laser class: | Class 2 |
| Laser type: | 635 nm (visible) |
| Measured at 20°C (horizontal / vertical): | ± 1.5 mm at 30 m (1/16" at 100 ft) |
| Rotation - RPS: | 10 |
| Range (diameter) - Basic: | 600 m (2.000 ft) |
| Range (diameter) - RE140/160: | 800 m (2.600 ft) |
| Li-Ion battery / hours operation: | 40+ |
| Alkaline battery / hours operation: | 60+ |
| Working temperature range: | -20 to +50 °C (-4 to +122 °F) |
| Storage temperature range: | -40 to +70 °C (-40 to +158 °F) |
| Seal (both excluding and including battery pack): | IP67 |
| Warranty: | 3 years no cost |
Features of Leica Geosystems Rugby 620 Rotary Self-levelling Surveying Laser:
- Concrete forming, pad placement and framework levelling; setting foundations and footings has never been more efficient
- Slope matching up to 8% in single axis
Package Contents:
- Leica Geosystems Rugby 620 Rotary Survey Laser Self Levelling
