Leica Geosystems Rugby 680 Rotary Self Level Dial in Grade Laser Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica Geosystems Rugby 680 Rotary Self Level Dial in Grade Laser has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!

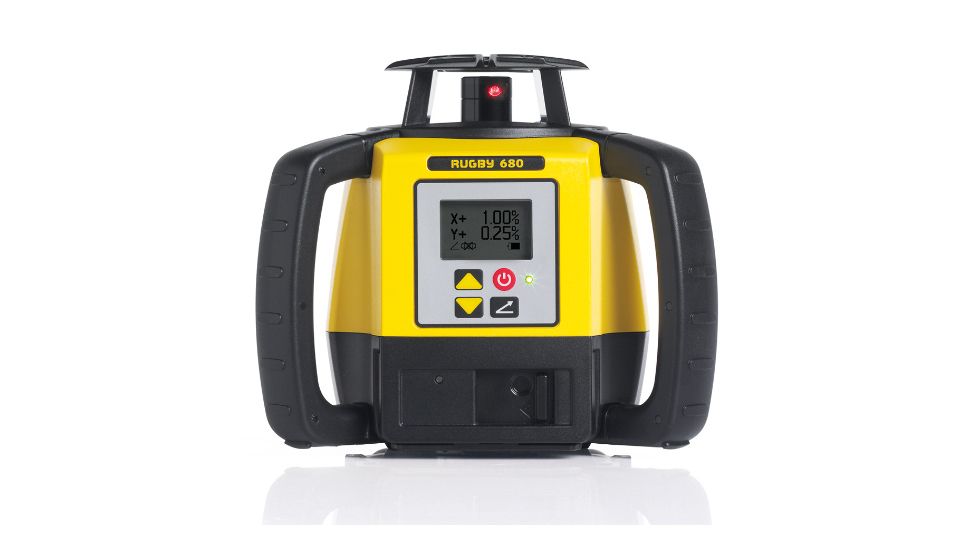

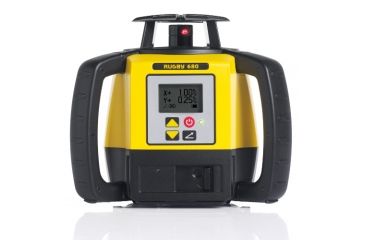

Product Info for Leica Geosystems Rugby 680 Rotary Self Level Dial in Grade Laser
The Leica Geosystems Rugby 680 Rotary Surveying Laser has a durable construction that gives you digital grade capability. This Leica Geosystems Rugby 680 Rotary Self Level Dial in Grade Laser gives you dial-in grade in single axis, easy and fast at the touch of a button. Over the course of the day, these Leica Geosystems Rugby 680 Rotary Self Level Dial in Grade Lasers feature the unique Smart Slope function that continuously monitor time and temperature changes to ensure accurate performance.
Specifications for Leica Geosystems Rugby 680 Rotating Surveying Lasers:
| Dimensions: | 212 x 239 x 192 mm |
| Weight: | 2.56 kg / 5.6 lbs |
| Functionality: | Self-levelling horizontal, dial-in grade in dual axis |
| Laser class: | Class 2 |
| Laser type: | 635 nm (visible) |
| Measured at 20°C (horizontal / vertical): | ± 1.5 mm at 30 m (1/16" at 100 ft) |
| Grade range: | ± 8% SG |
| Smart Slope: | Yes |
| Rotation - RPS: | 10 |
| Range (diameter) - Basic: | 600 m (2.000 ft) |
| Range (diameter) - RE140/160: | 800 m (2.600 ft) |
| Li-Ion battery / hours operation: | 40+ |
| Alkaline battery / hours operation: | 60+ |
| Working temperature range: | -20 to +50 °C (-4 to +122 °F) |
| Storage temperature range: | -40 to +70 °C (-40 to +158 °F) |
| Seal (both excluding and including battery pack): | IP67 |
| Warranty: | 3 years no cost |
Features of Leica Geosystems Rugby 680 Rotary Self-levelling Surveying Laser:
- A great general construction laser with digital grade capability
- Dial-in grade in single or dual axis, easy and fast at the touch of a button
- The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
Package Contents:
- Leica Geosystems Rugby 680 Rotary Self Level Dial in Grade Laser
