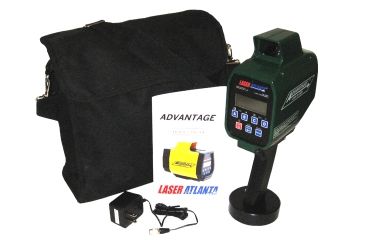

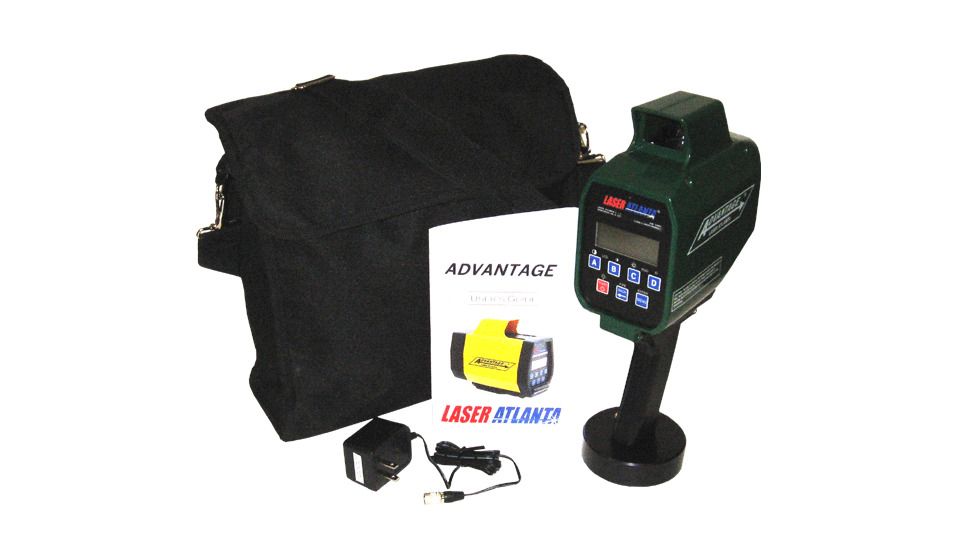

Laser Atlanta Advantage, Model S Distance Measuring Surveying Laser Multiple Options
Tap Tap to Zoom
Product Discontinued by Manufacturer
Laser Atlanta Advantage, Model S Distance Measuring Surveying Laser has been discontinued by Laser Atlanta and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Industrial / Professional Rangefinders, Professional, Surveying Equipment, Surveying Equipment yourself to try and find the perfect replacement for you!
Product Info for Laser Atlanta Advantage, Model S Distance Measuring Surveying Laser
Laser Atlanta Advantage, Model S Distance Measuring Surveying Laser consists of a modest-sized rangefinder that is able to fit additional components like Compass & Inclinometer, and Wireless Bluetooth. Like the "R" Model, Laser Tactical Advantage Model S Surveying Instrument features GE Lexan ABS compound lodging as well as extraordinary engineering and accuracy. However, a distinctive bonus of this Field Surveying Tool from Laser Atlanta is its compact size. Laser Tactical Surveying Equipment, the source in top-rate rangerfinders and rangefinder accessories.
Specifications for Laser Atlanta Advantage, Model S Distance Measuring Surveying Laser:
| Dimensions: | 3.8w x 7.3h x 6.4d in. |
| Weight: | 3.9 pounds with battery handle |
| Operating temperature: | -22F to 140F |
| Storage temperature: | -40F to 176F |
| Humidity: | 90% non-condensing |
| Environmental: | Water and dust resistant |
| Head-up display: | LED aiming sights and 1 line x 4 character readout |
| Rear panel display: | 4 line x 20 character LCD - backlit |
| Keyboard: | Membrane keypad |
| Data transfer: | RS-232 serial port / Optional memory port for SD & USB |
| Power source: | Rechargeable battery handles, Nickel Metal Hydride |
| Recharge time: | Standard 8 - 10 hours |
| Measurement time: | 0.33 seconds minimum |
| Range: | 2,000 ft. passive / 30,000 ft. to prism |
| Range accuracy: | +/- 6in. / 3 sigma |
| Resolution inclinometer: | 0.1 ft. |
| Inclinometer type: | Tri-axis digital |
| Inclinometer range: | +/- 50 degrees from level |
| Inclinometer accuracy: | +/- 0.4 degrees |
| Inclinometer resolution: | 0.1 degrees |
| Inclinometer repeatability: | +/- 0.3 degrees |
| Compass type: | Triaxial magnetometer |
| Compass range: | 0.0 degrees to 359.9 degrees |
| Compass accuracy: | +/- 1 degrees RMS when level |
| Compass resolution: | 0.1 degrees |
| Compass repeatability: | +/- 0.3 degrees |
Package Contents:
- Laser Atlanta Advantage, Model S Distance Measuring Surveying Laser
