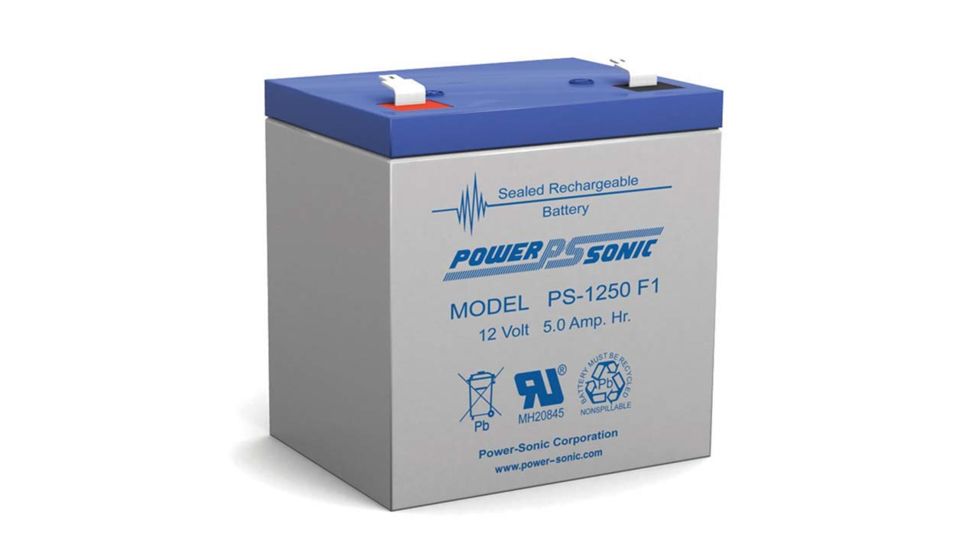

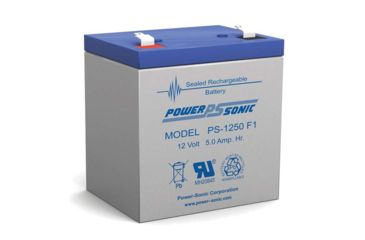

Power Sonic 12 Volt 5Ah SLA Battery w/ F1 Terminal Multiple Options

Features/Specifications:

Absorbent Glass Mat (AGM) technology for superior performance

Valve regulated, spill proof construction allows safe operation in any position

Power/volume ratio yielding unrivaled energy density

Rugged impact resistant ABS case and cover (UL94-HB)

Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified

U.L. recognized under file number MH 20845

L:3.54 (90)

W:2.76 (70)

H:3.98 (101)

HT:4.21(107)

Performance Specifications

Nominal Voltage.......................................................12 volts (6 cells)

Nominal Capacity20-hr. (250mA to 10.50 volts) ..........................................5.00 AH

10-hr. (450mA to 10.50 volts) ..........................................4.50 AH

5-hr. (750mA to 10.20 volts) ..........................................

3.75 AH 1-hr. (2.85A to 9.00 volts) .............................................2.85 AH

15-min. (9A to 9.00 volts)....................................................2.25 AH

Approximate Weight .........................................3.50 lbs. (1.59 kg)

Energy Density (20-hr. rate) ...............1.54 W-h/in3 (94.16 W-h/l)

Specific Energy (20-hr. rate) ............17.14 W-h/lb (37.79 W-h/kg)

Internal Resistance (approx.) .....................................40 milliohms

Max Discharge Current (7 Min.) ...............................15.0 amperes

Max Short-Duration Discharge Current (10 Sec.)....50.0 amperes

Shelf Life (% of nominal capacity at 68F (20C)1 Month .................................................................................97%

3 Months................................................................................91%

6 Months ...............................................................................83%

Charge................................................-4F (-20C) to 122F (50C)

Discharge............................................-40F (-40C) to 140F (60C)

Case..................................................................................ABS Plastic

Power-Sonic Chargers...............................................PSC-12500A-C

Features of Power Sonic 12 Volt 5Ah SLA Battery w/ F1 Terminal:

• Absorbent Glass Mat (AGM) technology for superior performance
• Valve regulated
• spill proof construction allows safe operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged impact resistant ABS case and cover (UL94-HB)
• Approved for transport by air
• D.O.T.
• I.A.T.A.
• F.A.A
• and C.A.B
• certified
• U.L
• recognized under file number MH 20845
• L:3.54 (90)
• W:2.76 (70)
• H:3.98 (101)
• HT:4.21(107)
• Performance Specifications
• Nominal Voltage.......................................................12 volts (6 cells)
• Nominal Capacity20-hr
• (250mA to 10.50 volts) ..........................................5.00 AH
• 10-hr
• (450mA to 10.50 volts) ..........................................4.50 AH
• 5-hr
• (750mA to 10.20 volts) ..........................................
• 3.75 AH 1-hr
• (2.85A to 9.00 volts) .............................................2.85 AH
• 15-min
• (9A to 9.00 volts)....................................................2.25 AH
• Approximate Weight .........................................3.50 lbs
• (1.59 kg)
• Energy Density (20-hr
• rate) ...............1.54 W-h/in3 (94.16 W-h/l)
• Specific Energy (20-hr
• rate) ............17.14 W-h/lb (37.79 W-h/kg)
• Internal Resistance (approx.) .....................................40 milliohms
• Max Discharge Current (7 Min.) ...............................15.0 amperes
• Max Short-Duration Discharge Current (10 Sec.)....50.0 amperes
• Shelf Life (% of nominal capacity at 68F (20C)1 Month .................................................................................97%
• 3 Months................................................................................91%
• 6 Months ...............................................................................83%
• Charge................................................-4F (-20C) to 122F (50C)
• Discharge............................................-40F (-40C) to 140F (60C)
• Case..................................................................................ABS Plastic
• Power-Sonic Chargers...............................................PSC-12500A-C

Package Contents:

• Power Sonic 12 Volt 5Ah SLA Battery w/ F1 Terminal
