Product No Longer Available
Unfortunately Power Sonic 12 Volt 7Ah Sealed Lead Acid Battery w/ F2 Terminal is not listed by RangeFinders.You can also explore other items in the Rangefinder Accessories, Batteries yourself to try and find the perfect replacement for you!

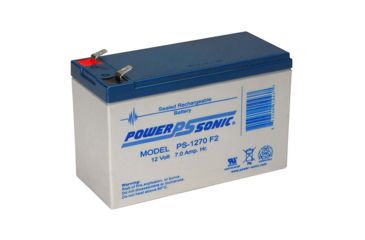

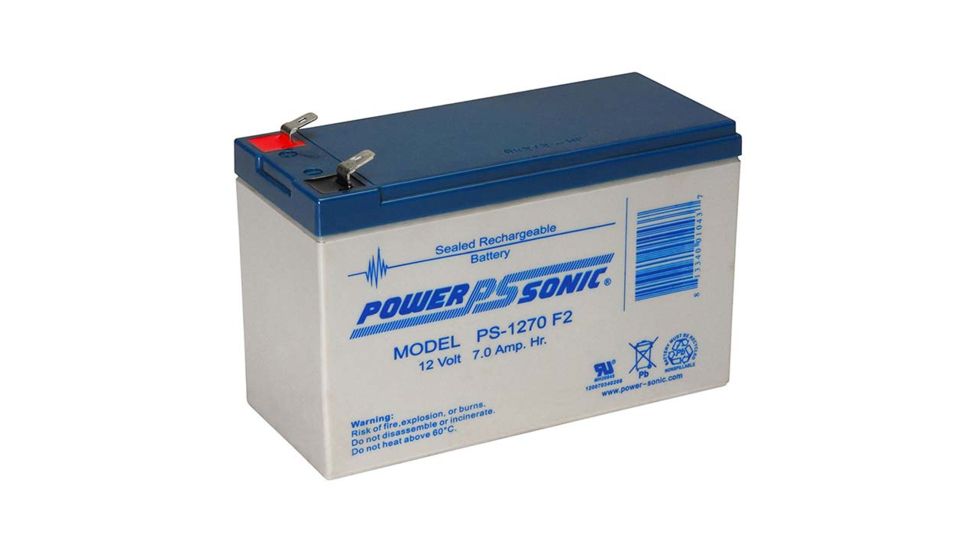

Product Info for Power Sonic 12 Volt 7Ah Sealed Lead Acid Battery w/ F2 Terminal
Features/Specifications:
Chemistry: SLA (Sealed Lead Acid)
Terminal Type: F2
Nominal Voltage: 12 Volts (6 Cells)
20-Hour (125mA to 10.50V)........ 2.50 Ah
10-Hour (220mA to 10.50V)......... 2.20 Ah
5-Hour (400mA to 10.20V)......... 2.00 Ah
1-Hour (1.5A to 9.00V)......... 1.50 Ah
15-Min. (4.5A to 9.00V)......... 1.13 Ah
Energy Density (20-Hour Rate): 1.32 W-h/in (80.30 W-h/l)
Specific Energy (20-Hour Rate): 14.29 W-h/lb (31.49 W-h/kg)
Internal Resistance (approx.): 60 milliohms
Max Discharge Current (7 Min.): 300.0 amperes
Max Short-Duration Discharge Current (10 Sec.): 7.5 amperes
Shelf Life (% of nominal capacity at 68F (20C)):
1 Month ......... 97%
3 Months ........ 91%
6 Months ........ 83%
Charge: -4F (-20C) to 122F (50C)
Discharge: -40F (-40C) to 140F (60C)
Dimensions (LxWxH): 7.00in x 1.38in x 2.56in (178mm x 35mm x 65mm)
Approximate Weight: 2.10 lbs. (0.95 kg)
Features of Power Sonic 12 Volt 7Ah Sealed Lead Acid Battery w/ F2 Terminal:
- Chemistry: SLA (Sealed Lead Acid)
- Terminal Type: F2
- Nominal Voltage: 12 Volts (6 Cells)
- 20-Hour (125mA to 10.50V).......
- 2.50 Ah
- 10-Hour (220mA to 10.50V)........
- 2.20 Ah
- 5-Hour (400mA to 10.20V)........
- 2.00 Ah
- 1-Hour (1.5A to 9.00V)........
- 1.50 Ah
- 15-Min
- (4.5A to 9.00V)........
- 1.13 Ah
- Energy Density (20-Hour Rate): 1.32 W-h/in (80.30 W-h/l)
- Specific Energy (20-Hour Rate): 14.29 W-h/lb (31.49 W-h/kg)
- Internal Resistance (approx.): 60 milliohms
- Max Discharge Current (7 Min.): 300.0 amperes
- Max Short-Duration Discharge Current (10 Sec.): 7.5 amperes
- Shelf Life (% of nominal capacity at 68F (20C)):
- 1 Month ........
- 97%
- 3 Months .......
- 91%
- 6 Months .......
- 83%
- Charge: -4F (-20C) to 122F (50C)
- Discharge: -40F (-40C) to 140F (60C)
- Dimensions (LxWxH): 7.00in x 1.38in x 2.56in (178mm x 35mm x 65mm)
- Approximate Weight: 2.10 lbs
- (0.95 kg)
Package Contents:
- Power Sonic 12 Volt 7Ah Sealed Lead Acid Battery w/ F2 Terminal
