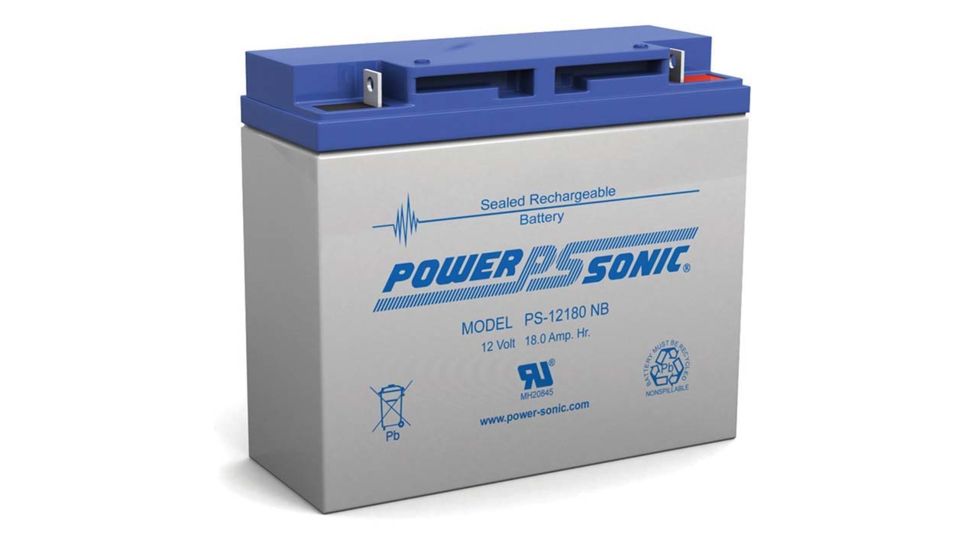

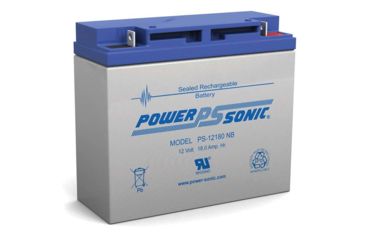

Power Sonic 12V 18Ah Rechargeable SLA Battery w/ NB Terminals Multiple Options

Features/Specifications:

Chemistry:SLA (Sealed Lead Acid)

Case: ABS Plastic

Terminal Type: NB2

Nominal Voltage: 12 Volts (6 Cells)

20-Hour (900mA to 10.5V)...... 18.0 Ah

10-Hour (1.7A to 10.5V)........... 17.0 Ah

5-Hour (3.2A to 10.2V)............ 16.0 Ah

1-Hour (11.1A to 9.0V)............ 11.1 Ah

15-Min. (34.3A to 9.0V)........... 8.58 Ah

Energy Density (20-Hour Rate): 1.53 W-h/in (93.51 W-h/l)

Specific Energy (20-Hour Rate): 17.14 W-h/lb (37.79 W-h/kg)

Max Discharge Current (7 Min.): 54.0A

Max Short-Duration Discharge Current (10 Sec.): 180.0A

Internal Resistance (approx.): 14.0 milliohms

Shelf Life (% of nominal capacity at 68F (20C)):

1 Month ......... 97%

3 Months ........ 91%

6 Months ........ 83%

Charge: -4F (-20C) to 122F (50C)

Discharge: -40F (-40C) to 140F (60C)

Dimensions (LxWxH): 7.13in x 3.00in x 6.59in (181mm x 76mm x 167mm)

Approximate Weight: 12.6 lbs. (5.72 kg)

Features of Power Sonic 12V 18Ah Rechargeable SLA Battery w/ NB Terminals:

• Chemistry:SLA (Sealed Lead Acid)
• Case: ABS Plastic
• Terminal Type: NB2
• Nominal Voltage: 12 Volts (6 Cells)
• 20-Hour (900mA to 10.5V).....
• 18.0 Ah
• 10-Hour (1.7A to 10.5V)..........
• 17.0 Ah
• 5-Hour (3.2A to 10.2V)...........
• 16.0 Ah
• 1-Hour (11.1A to 9.0V)...........
• 11.1 Ah
• 15-Min
• (34.3A to 9.0V)..........
• 8.58 Ah
• Energy Density (20-Hour Rate): 1.53 W-h/in (93.51 W-h/l)
• Specific Energy (20-Hour Rate): 17.14 W-h/lb (37.79 W-h/kg)
• Max Discharge Current (7 Min.): 54.0A
• Max Short-Duration Discharge Current (10 Sec.): 180.0A
• Internal Resistance (approx.): 14.0 milliohms
• Shelf Life (% of nominal capacity at 68F (20C)):
• 1 Month ........
• 97%
• 3 Months .......
• 91%
• 6 Months .......
• 83%
• Charge: -4F (-20C) to 122F (50C)
• Discharge: -40F (-40C) to 140F (60C)
• Dimensions (LxWxH): 7.13in x 3.00in x 6.59in (181mm x 76mm x 167mm)
• Approximate Weight: 12.6 lbs
• (5.72 kg)

Package Contents:

• Power Sonic 12V 18Ah Rechargeable SLA Battery w/ NB Terminals
