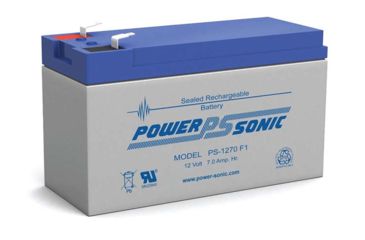

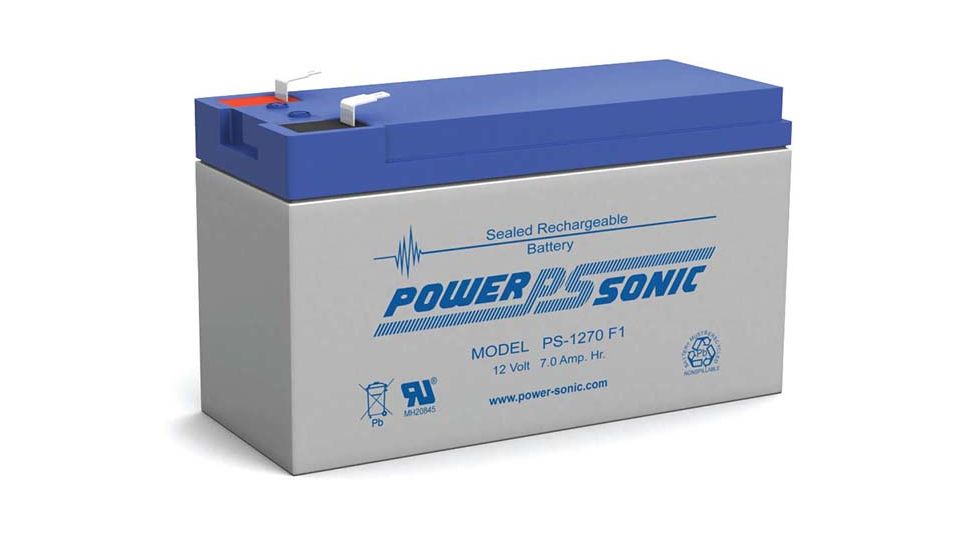

Power Sonic 12V 7Ah Sealed Lead Acid Battery w/ F1 Terminals Multiple Options

Features/Specifications:

Chemistry: SLA (Sealed Lead Acid)

Terminal Type: F1

Nominal Voltage: 12 Volts (6 Cells)

20-Hour (125mA to 10.50V)........ 2.50 Ah

10-Hour (220mA to 10.50V)......... 2.20 Ah

5-Hour (400mA to 10.20V)......... 2.00 Ah

1-Hour (1.5A to 9.00V)......... 1.50 Ah

15-Min. (4.5A to 9.00V)......... 1.13 Ah

Energy Density (20-Hour Rate): 1.32 W-h/in (80.30 W-h/l)

Specific Energy (20-Hour Rate): 14.29 W-h/lb (31.49 W-h/kg)

Internal Resistance (approx.): 60 milliohms

Max Discharge Current (7 Min.): 300.0 amperes

Max Short-Duration Discharge Current (10 Sec.): 7.5 amperes

Shelf Life (% of nominal capacity at 68F (20C)):

1 Month ......... 97%

3 Months ........ 91%

6 Months ........ 83%

Charge: -4F (-20C) to 122F (50C)

Discharge: -40F (-40C) to 140F (60C)

Dimensions (LxWxH): 7.00in x 1.38in x 2.56in (178mm x 35mm x 65mm)

Approximate Weight: 2.10 lbs. (0.95 kg)

Features of Power Sonic 12V 7Ah Sealed Lead Acid Battery w/ F1 Terminals:

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: F1
• Nominal Voltage: 12 Volts (6 Cells)
• 20-Hour (125mA to 10.50V).......
• 2.50 Ah
• 10-Hour (220mA to 10.50V)........
• 2.20 Ah
• 5-Hour (400mA to 10.20V)........
• 2.00 Ah
• 1-Hour (1.5A to 9.00V)........
• 1.50 Ah
• 15-Min
• (4.5A to 9.00V)........
• 1.13 Ah
• Energy Density (20-Hour Rate): 1.32 W-h/in (80.30 W-h/l)
• Specific Energy (20-Hour Rate): 14.29 W-h/lb (31.49 W-h/kg)
• Internal Resistance (approx.): 60 milliohms
• Max Discharge Current (7 Min.): 300.0 amperes
• Max Short-Duration Discharge Current (10 Sec.): 7.5 amperes
• Shelf Life (% of nominal capacity at 68F (20C)):
• 1 Month ........
• 97%
• 3 Months .......
• 91%
• 6 Months .......
• 83%
• Charge: -4F (-20C) to 122F (50C)
• Discharge: -40F (-40C) to 140F (60C)
• Dimensions (LxWxH): 7.00in x 1.38in x 2.56in (178mm x 35mm x 65mm)
• Approximate Weight: 2.10 lbs
• (0.95 kg)

Package Contents:

• Power Sonic 12V 7Ah Sealed Lead Acid Battery w/ F1 Terminals
