Product No Longer Available
Unfortunately Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal is not listed by RangeFinders.You can also explore other items in the Rangefinder Accessories, Batteries yourself to try and find the perfect replacement for you!

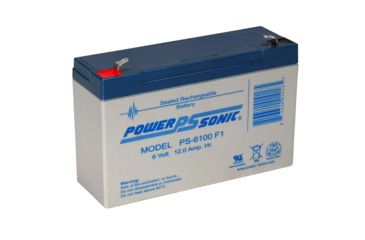

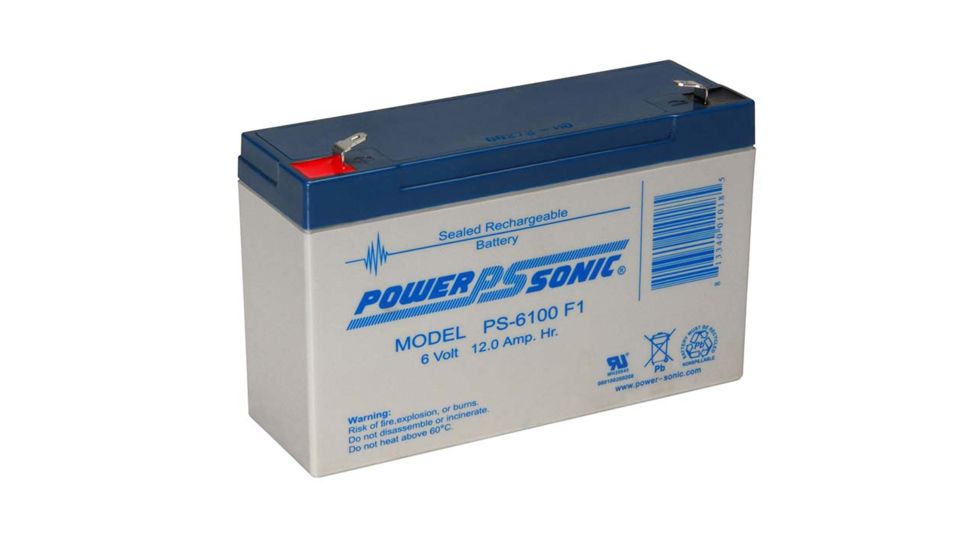

Product Info for Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal
Features/Specifications:
Sealed and maintenance-free
High discharge rate
Economical
Wide operating temperature range
Design flexibility
Easy handling
Long shelf life
Rugged Construction
Deep discharge recovery
Compact
Long Service Life
Chemistry: SLA (Sealed Lead Acid)
Terminal Type: F1 of F2
Nominal Voltage: 6 Volts (3 Cells)
Nominal Capacity:
20-Hour (600mA to 5.25V)........ 12.00 Ah
10-Hour (1.15A to 5.25V)......... 11.50 Ah
5-Hour (2.1A to 5.10V)......... 10.50 Ah
1-Hour (7.3A to 4.50V)......... 7.30 Ah
15-Min. (22.3A to 4.50V)......... 5.58 Ah
Energy Density (20-Hour Rate): 1.64 W-h/in (99.79 W-h/l)
Specific Energy (20-Hour Rate): 16.74 W-h/lb (36.91 W-h/kg)
Internal Resistance (approx.): 10 milliohms
Max Discharge Current (7 Min.): 36.0 amperes
Max Short-Duration Discharge Current (10 Sec.): 120.0 amperes
Shelf Life (% of nominal capacity at 68F (20C)):
1 Month ......... 97%
3 Months ........ 91%
6 Months ........ 83%
Charge: -4F (-20C) to 122F (50C)
Discharge: -40F (-40C) to 140F (60C)
Dimensions (LxWxH): 5.95in x 2.00in x 3.86in (151mm x 51mm x 98mm)
Approximate Weight: 4.30 lbs. (1.95 kg)
Features of Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal:
- Sealed and maintenance-free
- High discharge rate
- Economical
- Wide operating temperature range
- Design flexibility
- Easy handling
- Long shelf life
- Rugged Construction
- Deep discharge recovery
- Compact
- Long Service Life
- Chemistry: SLA (Sealed Lead Acid)
- Terminal Type: F1 of F2
- Nominal Voltage: 6 Volts (3 Cells)
- Nominal Capacity:
- 20-Hour (600mA to 5.25V).......
- 12.00 Ah
- 10-Hour (1.15A to 5.25V)........
- 11.50 Ah
- 5-Hour (2.1A to 5.10V)........
- 10.50 Ah
- 1-Hour (7.3A to 4.50V)........
- 7.30 Ah
- 15-Min
- (22.3A to 4.50V)........
- 5.58 Ah
- Energy Density (20-Hour Rate): 1.64 W-h/in (99.79 W-h/l)
- Specific Energy (20-Hour Rate): 16.74 W-h/lb (36.91 W-h/kg)
- Internal Resistance (approx.): 10 milliohms
- Max Discharge Current (7 Min.): 36.0 amperes
- Max Short-Duration Discharge Current (10 Sec.): 120.0 amperes
- Shelf Life (% of nominal capacity at 68F (20C)):
- 1 Month ........
- 97%
- 3 Months .......
- 91%
- 6 Months .......
- 83%
- Charge: -4F (-20C) to 122F (50C)
- Discharge: -40F (-40C) to 140F (60C)
- Dimensions (LxWxH): 5.95in x 2.00in x 3.86in (151mm x 51mm x 98mm)
- Approximate Weight: 4.30 lbs
- (1.95 kg)
Package Contents:
- Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal
