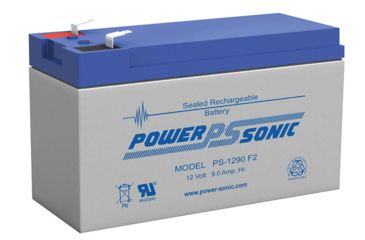

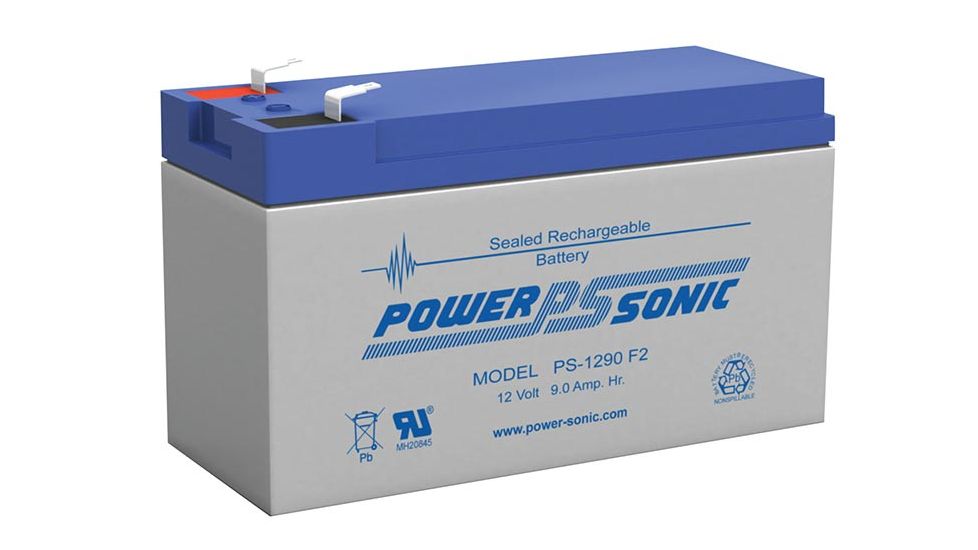

Power Sonic PS1290F2 12 Volt 9Ah Rechargeable Sla Battery Multiple Options

Features/Specifications:

Absorbent Glass Mat (AGM) technology for superior performance

Valve regulated, spill proof construction allows safe operation in any position

Power/volume ratio yielding unrivaled energy density

Rugged plastic case and cover

Used in fire alarm systems, burglar alarm systems and access control systems

Chemistry:SLA (Sealed Lead Acid)

Case: ABS Plastic

Terminal Type: F2

Nominal Voltage: 12 Volts (6 Cells)

20-Hour (425mA to 10.5V)........... 9.00 Ah

10-Hour (810mA to 10.5V)........... 8.10 Ah

5-Hour (1.44A to 10.2V)............... 7.20 Ah

1-Hour (5.40A to 9.0V)................. 5.40 Ah

15-Min. (14.4A to 9.0V)................ 3.60 Ah

Energy Density (20-Hour Rate): 1.92 W-h/in (116.94 W-h/l)

Specific Energy (20-Hour Rate): 18.00 W-h/lb (39.68 W-h/kg)

Max Discharge Current (7 Min.): 27.0A

Max Short-Duration Discharge Current (10 Sec.): 90.0A

Internal Resistance (approx.): 13.0 milliohms

Shelf Life (% of nominal capacity at 68F (20C)):

1 Month ......... 97%

3 Months ........ 91%

6 Months ........ 83%

Charge: -4F (-20C) to 122F (50C)

Discharge: -40F (-40C) to 140F (60C)

Dimensions (LxWxH): 5.95in x 2.56in x 3.70in

Approximate Weight: 6.00 lbs. (2.72 kg)

Features of Power Sonic PS1290F2 12 Volt 9Ah Rechargeable Sla Battery:

• Absorbent Glass Mat (AGM) technology for superior performance
• Valve regulated
• spill proof construction allows safe operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged plastic case and cover
• Used in fire alarm systems
• burglar alarm systems and access control systems
• Chemistry:SLA (Sealed Lead Acid)
• Case: ABS Plastic
• Terminal Type: F2
• Nominal Voltage: 12 Volts (6 Cells)
• 20-Hour (425mA to 10.5V)..........
• 9.00 Ah
• 10-Hour (810mA to 10.5V)..........
• 8.10 Ah
• 5-Hour (1.44A to 10.2V)..............
• 7.20 Ah
• 1-Hour (5.40A to 9.0V)................
• 5.40 Ah
• 15-Min
• (14.4A to 9.0V)...............
• 3.60 Ah
• Energy Density (20-Hour Rate): 1.92 W-h/in (116.94 W-h/l)
• Specific Energy (20-Hour Rate): 18.00 W-h/lb (39.68 W-h/kg)
• Max Discharge Current (7 Min.): 27.0A
• Max Short-Duration Discharge Current (10 Sec.): 90.0A
• Internal Resistance (approx.): 13.0 milliohms
• Shelf Life (% of nominal capacity at 68F (20C)):
• 1 Month ........
• 97%
• 3 Months .......
• 91%
• 6 Months .......
• 83%
• Charge: -4F (-20C) to 122F (50C)
• Discharge: -40F (-40C) to 140F (60C)
• Dimensions (LxWxH): 5.95in x 2.56in x 3.70in
• Approximate Weight: 6.00 lbs
• (2.72 kg)

Package Contents:

• Power Sonic PS1290F2 12 Volt 9Ah Rechargeable Sla Battery
