Product No Longer Available
Unfortunately Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery is not listed by RangeFinders.You can also explore other items in the Rangefinder Accessories, Batteries yourself to try and find the perfect replacement for you!

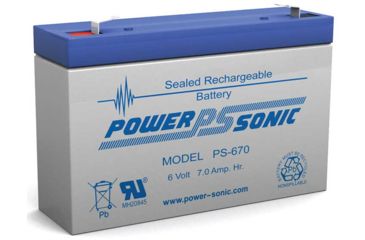

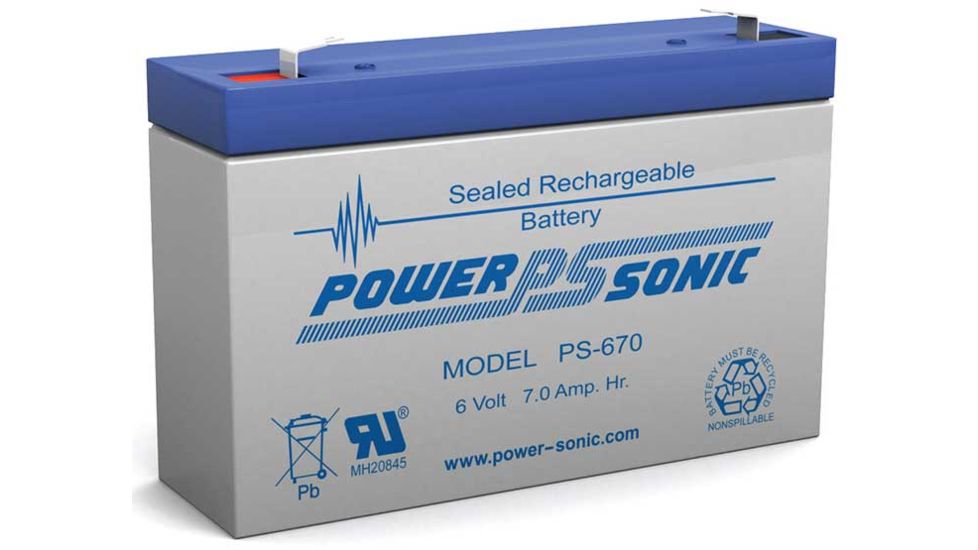

Product Info for Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery
Features/Specifications:
Absorbent Glass Mat (AGM) technology for superior performance
Valve regulated, spill proof construction allows safe operation in any position
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
U.L. recognized under file number MH 20845
Chemistry: SLA (Sealed Lead Acid)
Terminal Type: F1
Nominal Voltage: 6 Volts (3 Cells)
20-Hour (350mA to 5.25V)........ 7.00 Ah
10-Hour (630mA to 5.25V)......... 6.30 Ah
5-Hour (1.19A to 5.10V)......... 5.95 Ah
1-Hour (4.34A to 4.50V)......... 4.34 Ah
15-Min. (13.5A to 4.50V)......... 3.38 Ah
Energy Density (20-Hour Rate): 1.42 W-h/in (86.88 W-h/l)
Specific Energy (20-Hour Rate): 17.36 W-h/lb (38.26 W-h/kg)
Internal Resistance (approx.): 15 milliohms
Max Discharge Current (7 Min.): 21.0 amperes
Max Short-Duration Discharge Current (10 Sec.): 70.0 amperes
Shelf Life (% of nominal capacity at 68F (20C)):
1 Month ......... 97%
3 Months ........ 91%
6 Months ........ 83%
Charge: -4F (-20C) to 122F (50C)
Discharge: -40F (-40C) to 140F (60C)
Dimensions (LxWxH): 5.95in x 1.34in x 3.70in
Approximate Weight: 2.42 lbs. (1.10 kg)
Features of Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery:
- Absorbent Glass Mat (AGM) technology for superior performance
- Valve regulated
- spill proof construction allows safe operation in any position
- Power/volume ratio yielding unrivaled energy density
- Rugged impact resistant ABS case and cover (UL94-HB)
- Approved for transport by air
- D.O.T.
- I.A.T.A.
- F.A.A
- and C.A.B
- certified
- U.L
- recognized under file number MH 20845
- Chemistry: SLA (Sealed Lead Acid)
- Terminal Type: F1
- Nominal Voltage: 6 Volts (3 Cells)
- 20-Hour (350mA to 5.25V).......
- 7.00 Ah
- 10-Hour (630mA to 5.25V)........
- 6.30 Ah
- 5-Hour (1.19A to 5.10V)........
- 5.95 Ah
- 1-Hour (4.34A to 4.50V)........
- 4.34 Ah
- 15-Min
- (13.5A to 4.50V)........
- 3.38 Ah
- Energy Density (20-Hour Rate): 1.42 W-h/in (86.88 W-h/l)
- Specific Energy (20-Hour Rate): 17.36 W-h/lb (38.26 W-h/kg)
- Internal Resistance (approx.): 15 milliohms
- Max Discharge Current (7 Min.): 21.0 amperes
- Max Short-Duration Discharge Current (10 Sec.): 70.0 amperes
- Shelf Life (% of nominal capacity at 68F (20C)):
- 1 Month ........
- 97%
- 3 Months .......
- 91%
- 6 Months .......
- 83%
- Charge: -4F (-20C) to 122F (50C)
- Discharge: -40F (-40C) to 140F (60C)
- Dimensions (LxWxH): 5.95in x 1.34in x 3.70in
- Approximate Weight: 2.42 lbs
- (1.10 kg)
Package Contents:
- Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery
